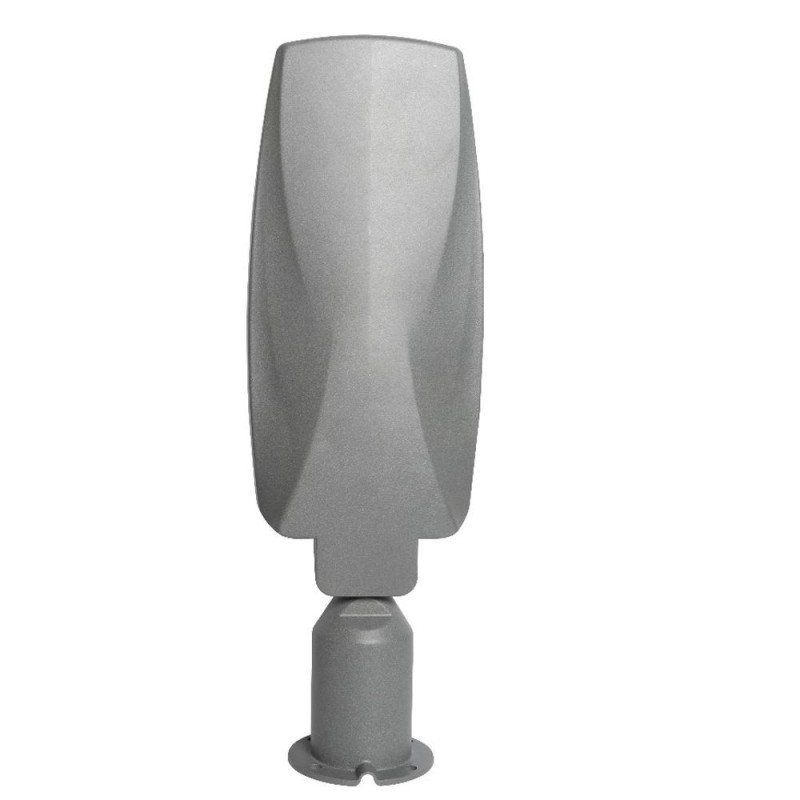

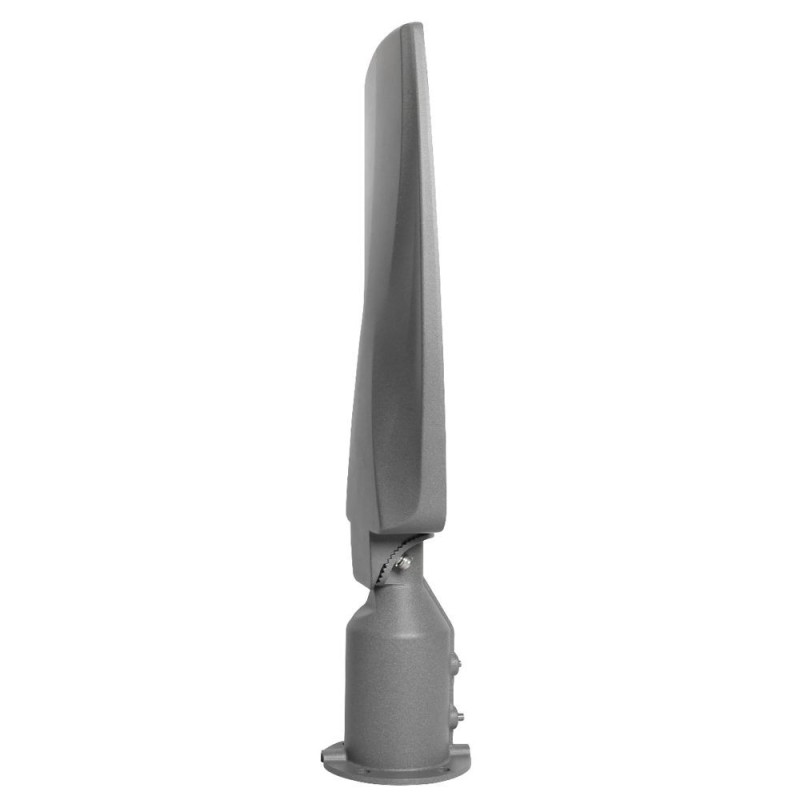

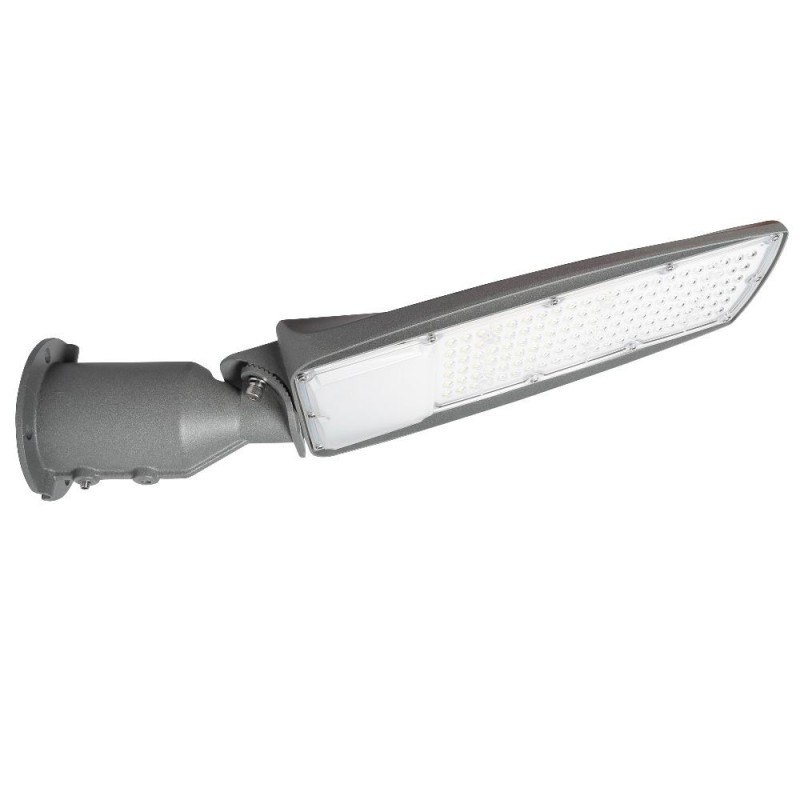

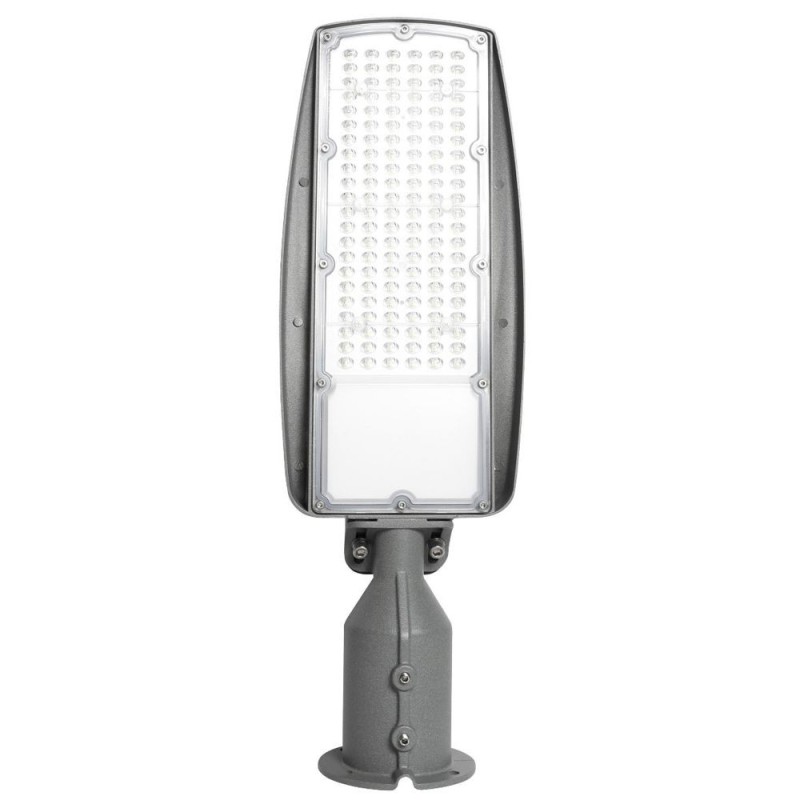

100W LED Street Light Philips LUMILEDS Chip 15000Lm
100W LED Street Light for road lighting, made of aluminum with a high-brightness PHILIPS LUMILEDS SMD2835 LED chip, offering a luminous flux of 15000 lumens and a 140x70º asymmetric optic. Ideal for residential and road lighting, with a tilting head up to 90º for installation on tip or wall.
- Power: 100W
- Material: Aluminum
- LED Chip: PHILIPS LUMILEDS SMD2835
- Luminous Flux: 15000 lumens
- Optics: Asymmetric 140x70º

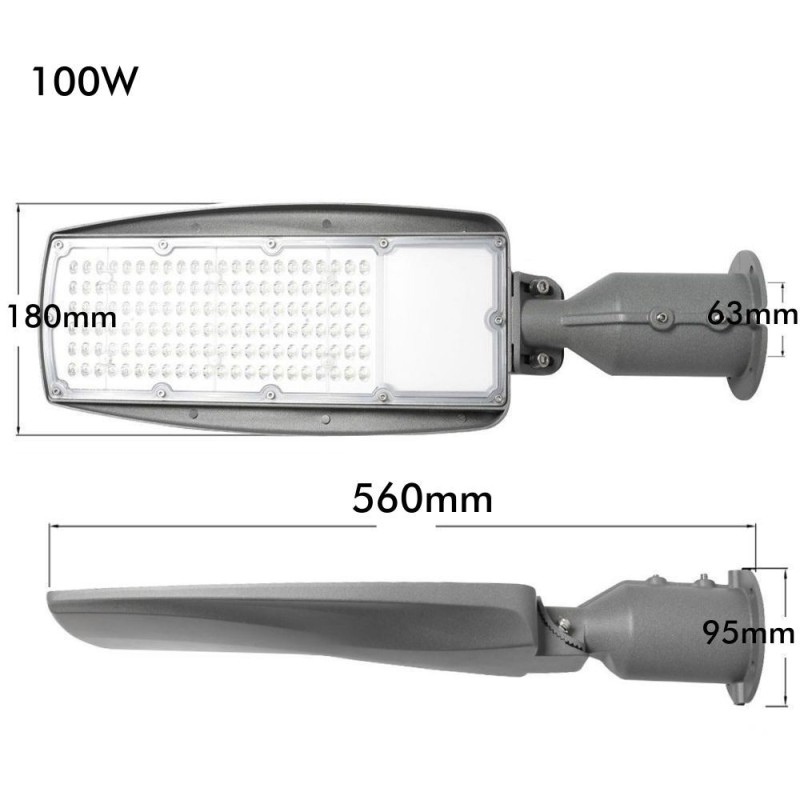

- Dimensions: 180x560x95mm / hole Ø60mm
- Tilting Head: Up to 90º
- Energy Efficiency: Savings up to 80%
Urban LED Street Light 100W PHILIPS LUMILEDS Chip Asymmetric Optic 140x70º 15000 lm
The 100W urban LED street light with a PHILIPS LUMILEDS SMD2835 chip delivers 15000 lumens with an asymmetric 140x70º optic. Aluminium, head swivelling up to 90º, mounting on a Ø60 mm tip or on a wall, ideal for residential and road lighting.
⚡ 100W💡 15000 lm🌡 140x70º🔄 90º
| 100W Power | 15000 lm Luminous flux | 140x70º Optic | 90º Swivel head |
The 100W urban LED street light is an efficient, durable solution for lighting residential and road areas. Made of high-quality aluminium and fitted with a high-brightness PHILIPS LUMILEDS SMD2835 LED chip, it offers a luminous flux of 15000 lumens, guaranteeing uniform, quality lighting.

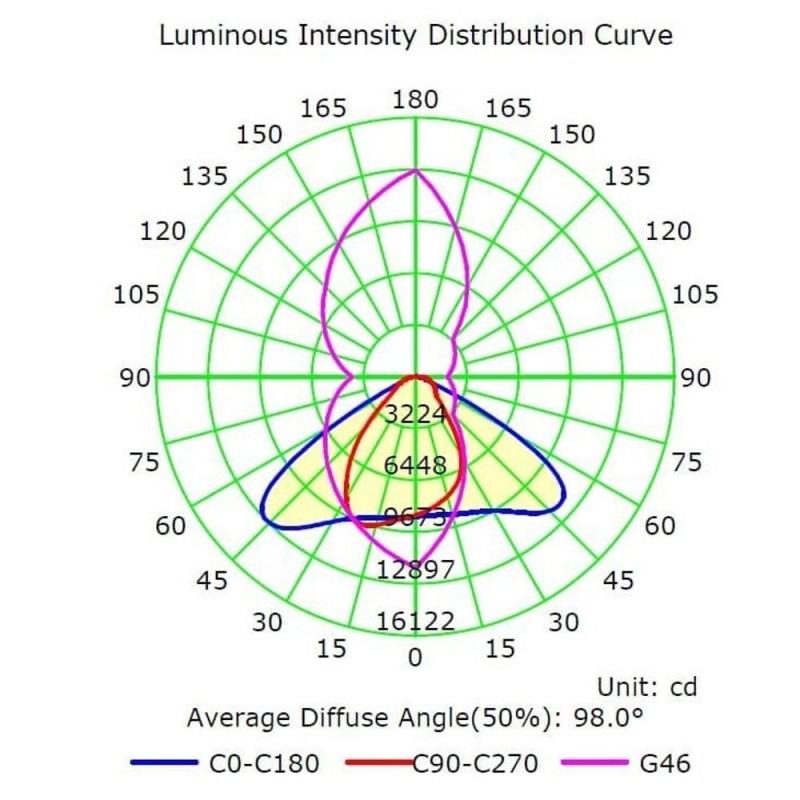

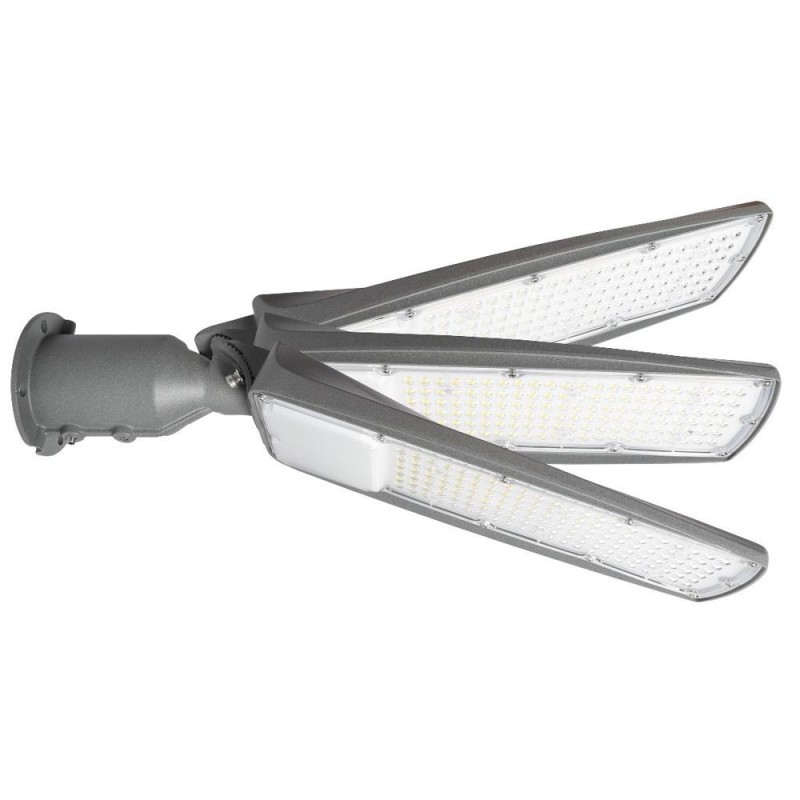

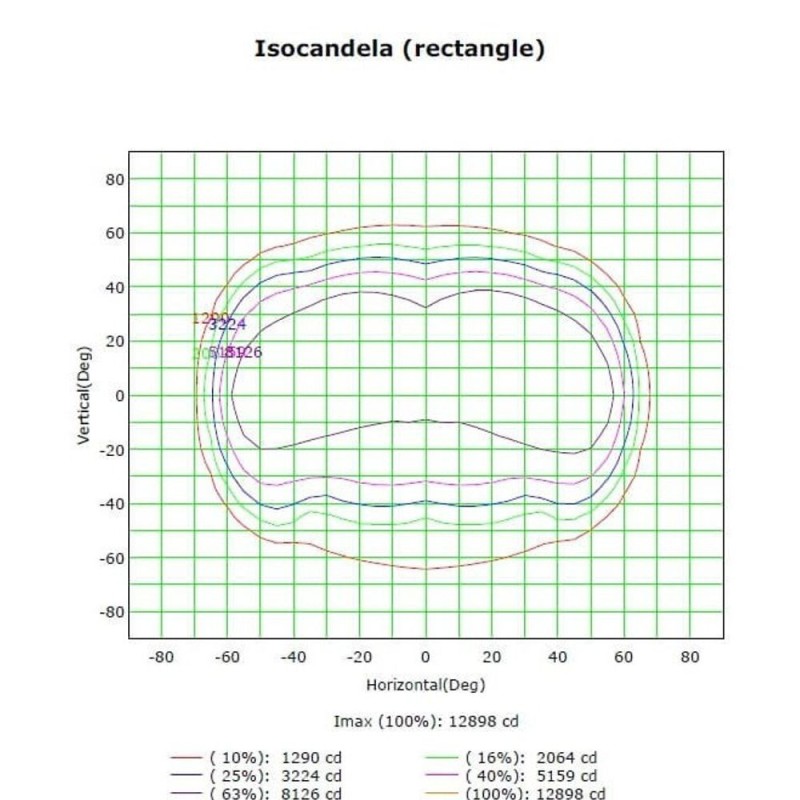

Its 140x70º asymmetric optic directs light efficiently onto the roadway and pedestrian areas, optimising light distribution and reducing glare. Its head swivelling up to 90º allows installation on a Ø60 mm tip or on a wall, adapting to many urban lighting configurations.
Why choose this product?
SMD2835, 15000 lm, uniform, quality lighting.
Efficient distribution, reduces glare.
Mounting on Ø60 mm tip or wall, aluminium.
Technical specifications
| Product type | Urban LED street light |
|---|---|
| Power | 100W |
| LED chip | PHILIPS LUMILEDS SMD2835 |
| Luminous flux | 15000 lm |
| Optic | Asymmetric 140x70º |
| Material | Aluminium |
| Swivel head | Up to 90º |
| Mounting | Ø60 mm tip or wall |
| Use | Residential and road |
Advantages
- PHILIPS LUMILEDS: 15000 quality lm.
- 140x70º optic: efficient distribution.
- 90º swivel head: flexible orientation.
- Ø60 mm or wall mounting: versatile.
- Aluminium: sturdy and durable.
- Residential and road: urban lighting.

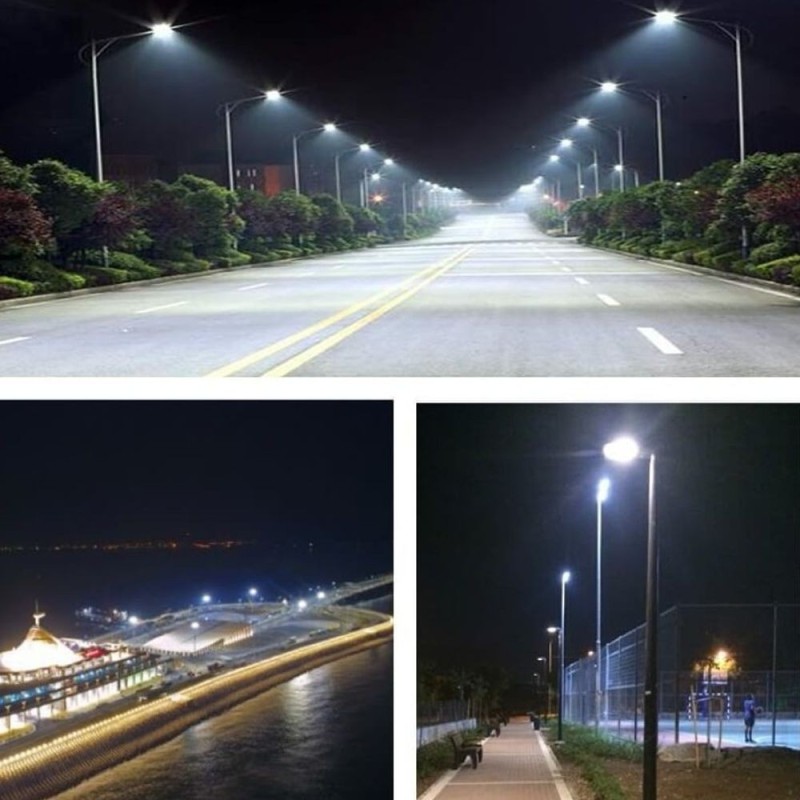

Recommended applications
| 🚪 | Streets and avenues — road lighting. |
| 🏠 | Residential areas — street lighting. |

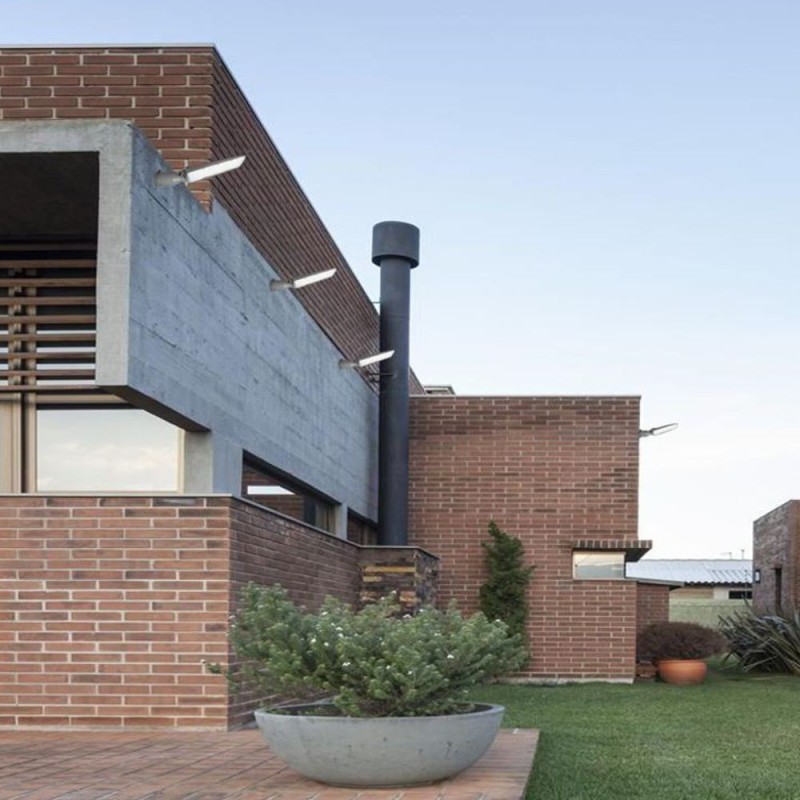

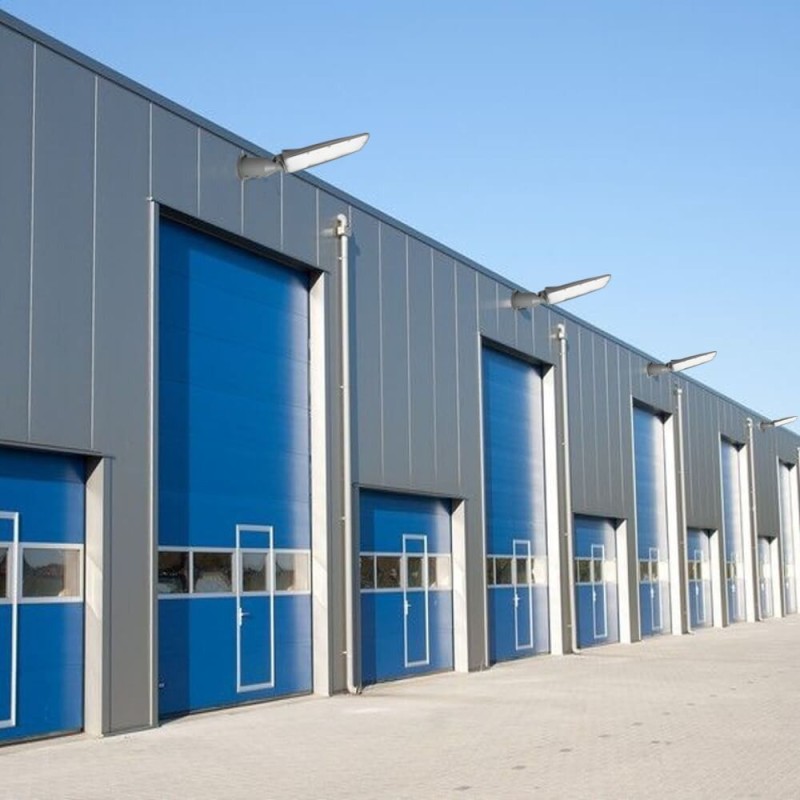

| 🏛 | Car parks and accesses — wall mounting. |
| 🌿 | Parks and squares — uniform lighting. |

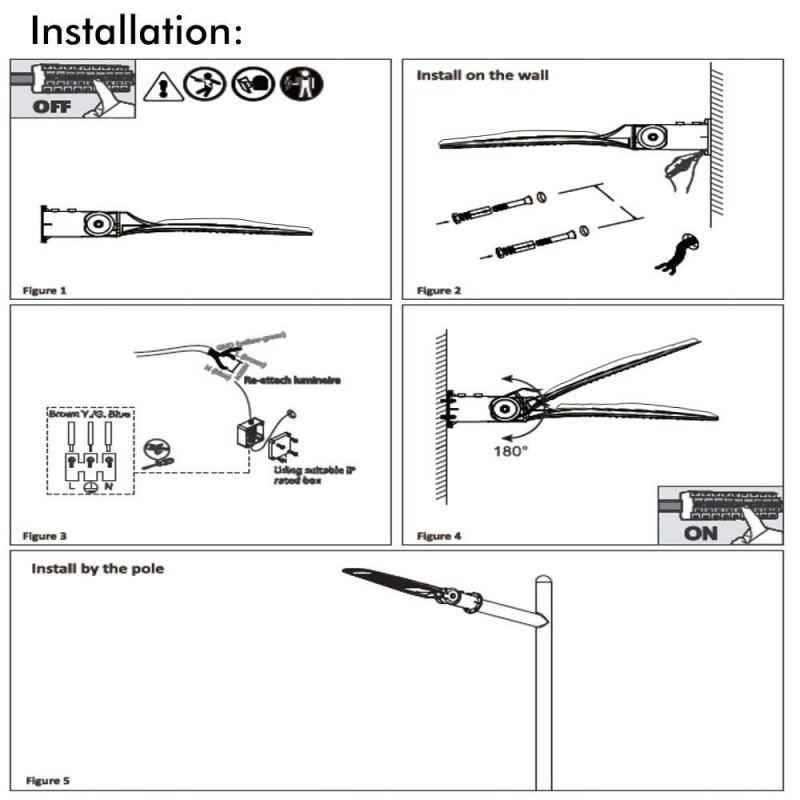

Installation guide
| 1 | Switch off the power Cut the supply before installation. |
| 2 | Fix the street light Mount it on a Ø60 mm tip or on a wall. |
| 3 | Aim the head Set the swivel head (up to 90º). |
| 4 | Wire and check Wire per standards and check the lighting. |
Frequently asked questions
A high-brightness PHILIPS LUMILEDS SMD2835 chip.
Asymmetric 140x70º, for efficient distribution on the roadway.
On a Ø60 mm tip or on a wall, with a 90º swivel head.
| ⚡ 100W 15000 lm | 🌡 140x70º LUMILEDS | 🔄 90º Ø60 mm | 🔌 In stock Fast shipping |
Data sheet
- Power (W)
- 100
- Power source (V)
- 85-265V
- Color temperature CCT
- 4000K
- LED
- SMD2835
- LED chip brand
- Philips LUMILEDS
- Luminous efficacy (Lm/W)
- 150
- Brightness (Lm)
- 15000
- Color rendering index (Ra):
- ≥70
- Colour
- Grey
- IP
- IP65
- IK
- IK10
- Luminous angle
- Asymmetric 140x70º
- Frequency (Hz)
- 50-60Hz
- Power factor φ
- 0.99
- Measures (mm)
- 180x560x95mm / hole Ø60mm
- Material
- Aluminum
- Operating temperature
- -20ºC ~ +55ºC
- Energy efficiency 2021
- A+
- Energy efficiency 2023
- E
- Lifespan
- 100.000h
- Certification
- CE - RoHS
TÜV
- Warranty
- 3 años
Specific References
- ean13
- 8435637220996
