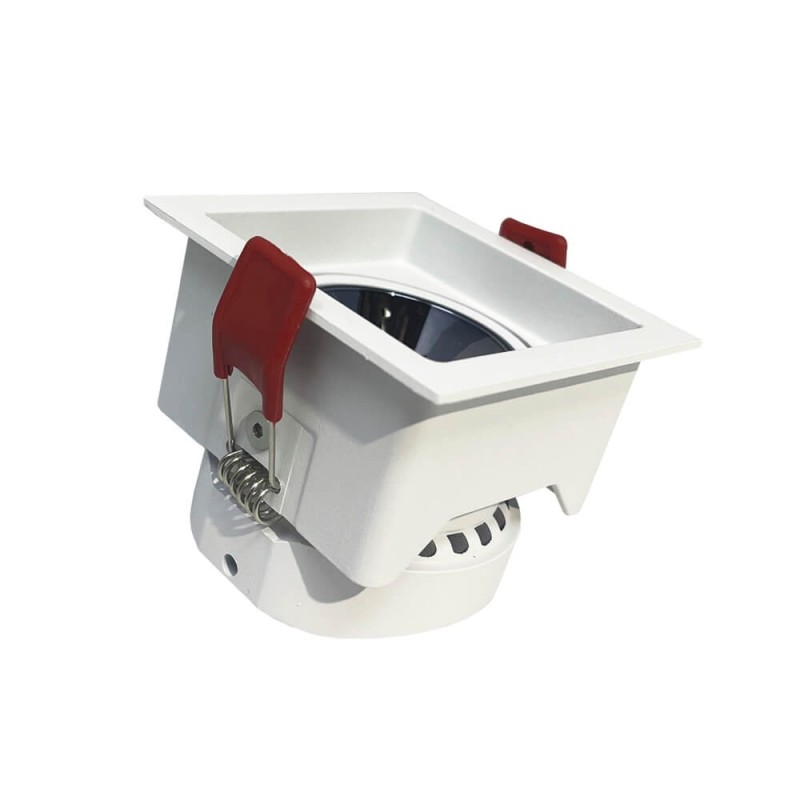

5 to 12W V2.0 Square White Recessed Selectable CCT LED Spotlight 40º UGR11 1200Lm

19.90 € (tax incl.)
Available
Color temperature CCT (ºK)
  • Selectable CCT (3000K-4000K-6000K)
In stock: 1218 Items
Reference:
90610

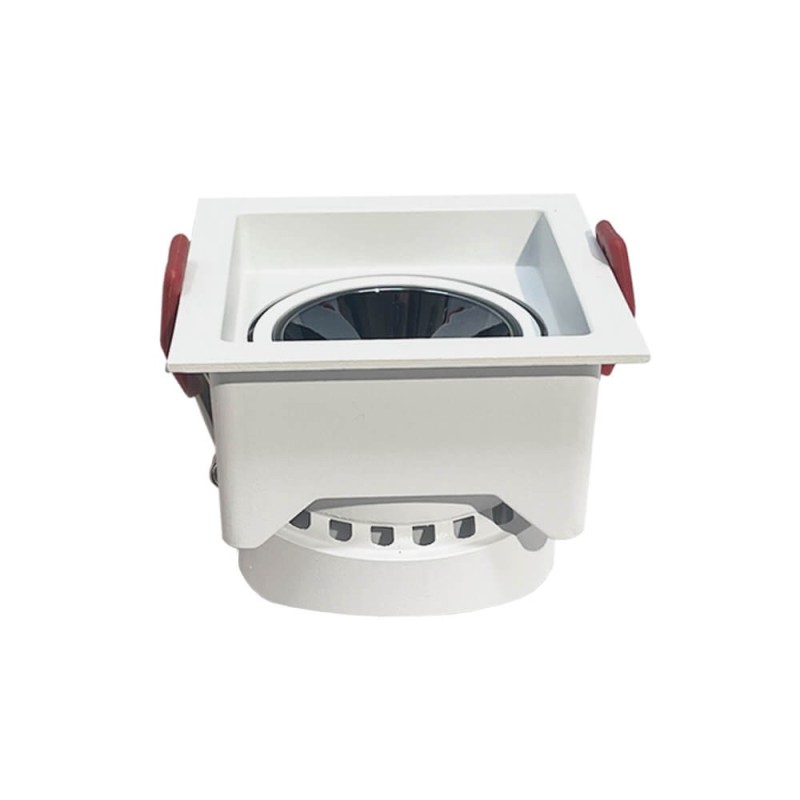

The V2.0 Recessed Square LED Downlight is a multifunctional lighting solution that adapts to a wide variety of needs thanks to its multiple power and color temperature combinations.

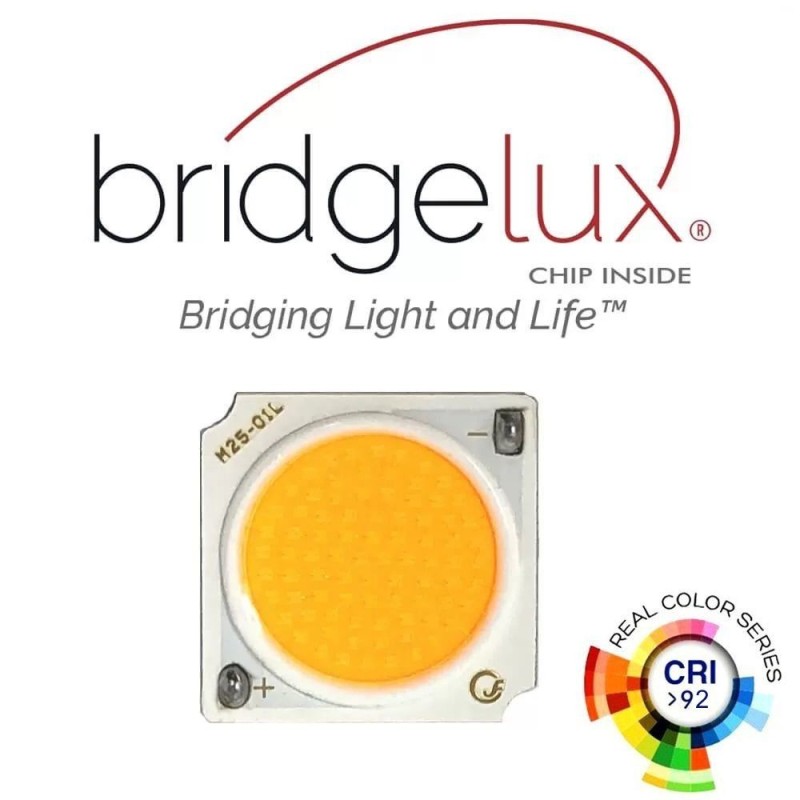

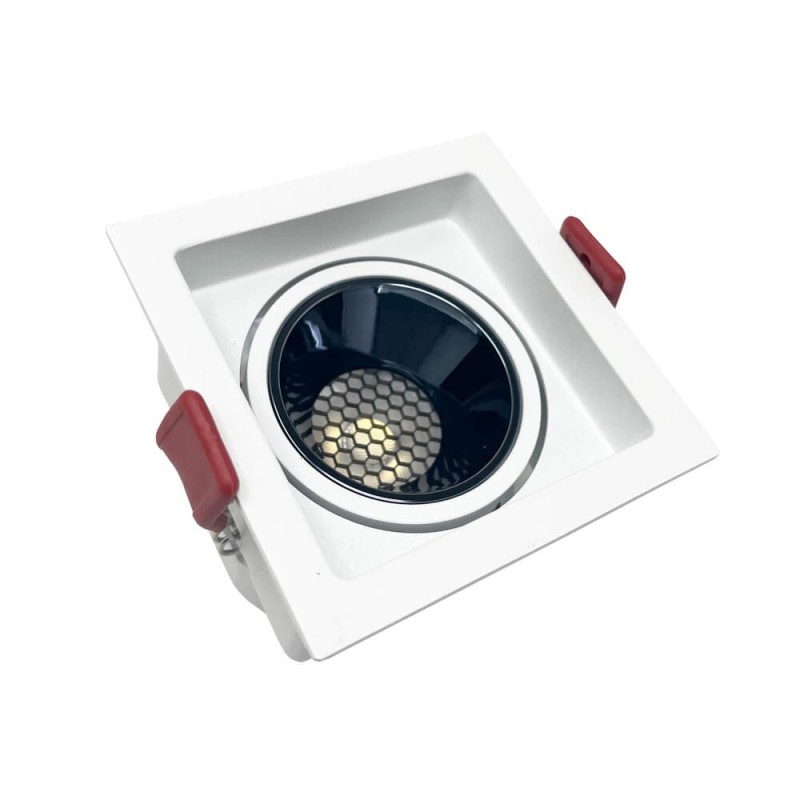

Equipped with a high-brightness Bridgelux LED chip, this LED downlight offers a luminous flux of up to 1200 lumens operating at 12W. Its 40º optics are specially designed to provide precise and focused lighting, while the honeycomb grille significantly reduces glare, with a UGR<11, making it perfect for decoration and architectural projects.

Made of aluminum and lacquered in white, this downlight allows the selection of:

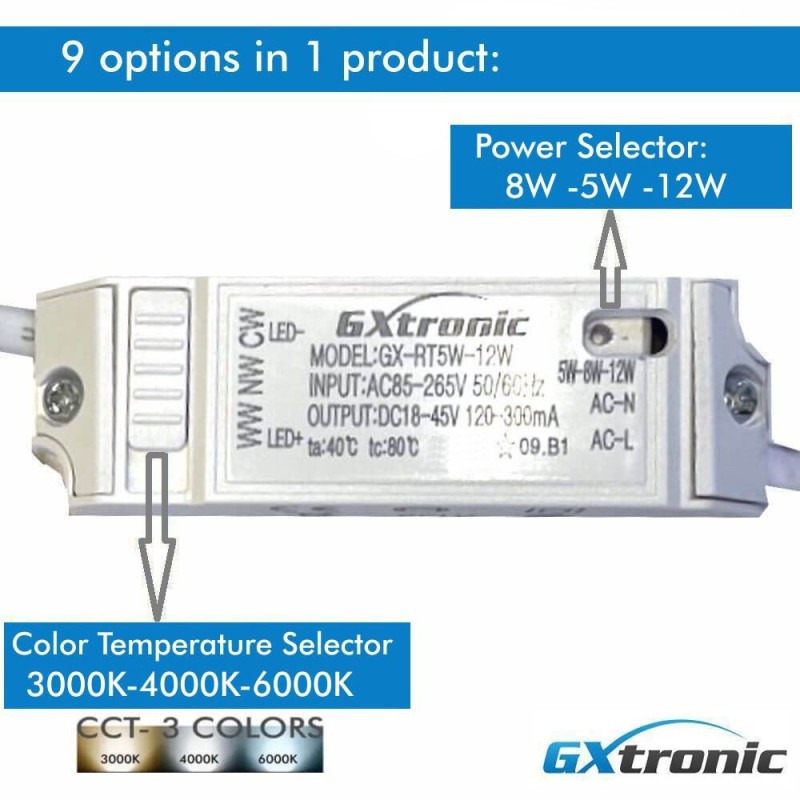

  • Power options: Selectable between 5W, 8W, and 12W

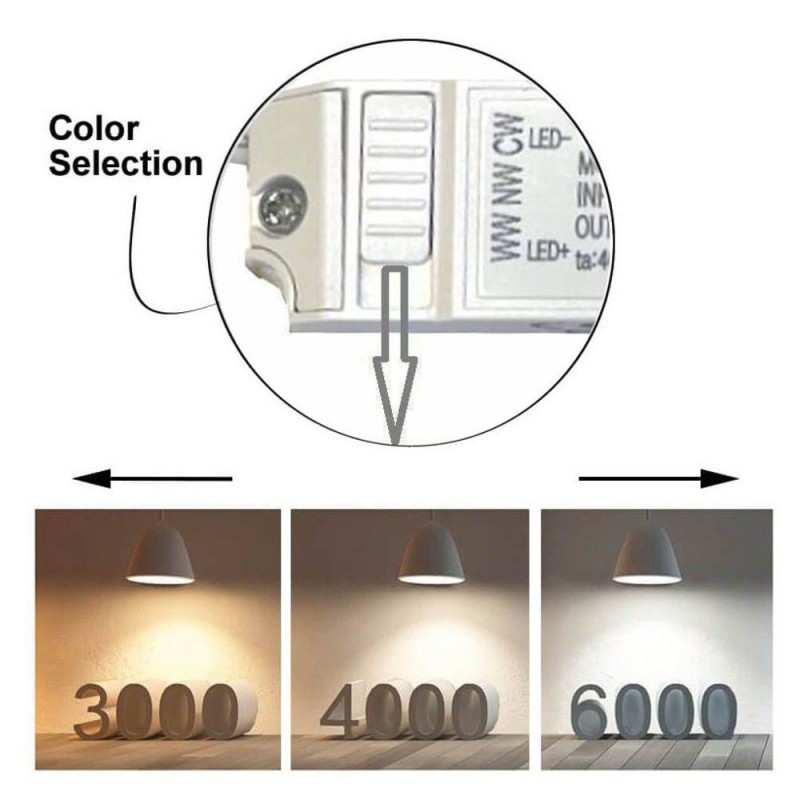

  • Color temperatures: Selectable between 3000K, 4000K, and 6000K
  • Luminous flux: Up to 1200 lumens at 12W

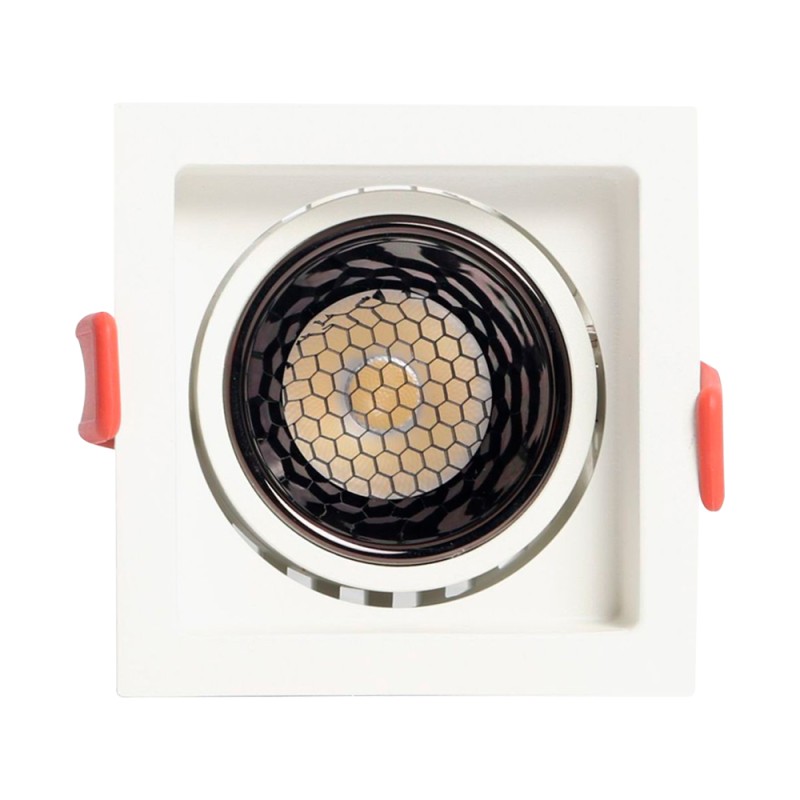

  • Optics: 40º with honeycomb grille
  • UGR: <11
  • Color rendering index (CRI): +92
  • Material: Aluminum lacquered in white

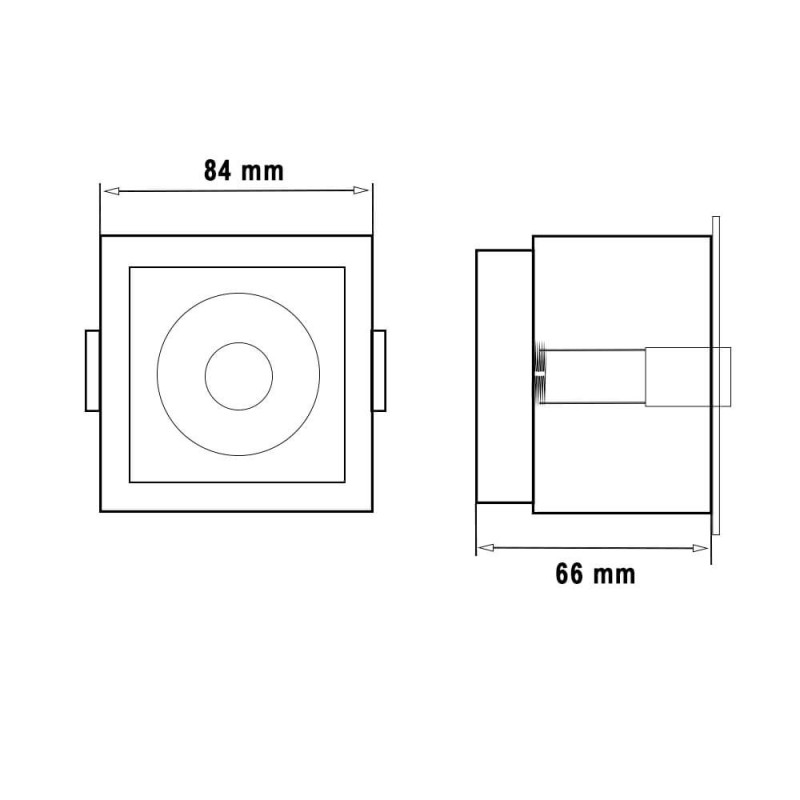

  • Dimensions: 84x84x66mm
  • Ceiling cutout: Ø75mm
Read moreShow less
Download PDF
You may also like
No items
Description

Multifunctional LED Recessed Spotlight V2.0 Square CCT 5 to 12W White


The V2.0 LED Recessed Downlight square is a multifunctional lighting solution that adapts to a wide variety of needs thanks to its multiple combinations of power and color temperature.

Made of aluminum and coated in white, this downlight allows the selection of:

  • Power: Selectable between 5W, 8W, and 12W
  • Color temperatures: Selectable between 3000K, 4000K, and 6000K

This flexibility makes it an ideal option for both domestic and professional use, allowing the lighting to be adjusted according to the specific needs of each project.

High-Performance Lighting


Equipped with a high-brightness Bridgelux LED chip, this LED downlight offers a luminous flux of up to 1200 lumens working at 12W. Its 40º optics have been specially designed to provide precise and focused lighting, while the honeycomb grille significantly reduces glare, with a UGR<11, making it perfect for decoration and architectural projects.

Superior Color Rendering


With a CRI+92 color rendering index, this LED downlight guarantees color reproduction with exceptional intensity and fidelity. This is particularly beneficial in commercial settings, where enhancing product color is crucial to attract customer attention.

Technical Specifications of the Multifunctional LED Downlight


  • Power: Selectable between 5W, 8W, and 12W
  • Luminous flux: Up to 1200 lumens at 12W
  • Color temperature: Selectable between 3000K, 4000K, and 6000K
  • Optics: 40º with honeycomb grille
  • UGR: <11
  • Color rendering index (CRI): +92
  • Material: White lacquered aluminum
  • Dimensions: 84x84x66mm
  • Ceiling cutout: Ø75mm

Recommended Applications


  • Decoration and architecture projects: Focused lighting with low glare to highlight architectural elements.
  • Retail and stores: Superior color rendering to enhance product colors.
  • Homes: Adjust power and color temperature according to the needs of each space.
  • Offices: Provides a comfortable and visually appealing work environment.
Read moreShow less
Product Details
90610

Data sheet

Power (W)
5
8
12
Power source (V)
85-265V
Color temperature CCT
Seleccionable 3000K-4000K-6000K
LED
COB
LED chip brand
BRIDGELUX
Luminous efficacy (Lm/W)
100
Brightness (Lm)
1200
CRI
+92
Colour
White
IP
IP20
Luminous angle
40º
Frequency (Hz)
50-60Hz
Measures (mm)
84x84x66mm
Medida de corte (mm.)
Ø75mm
Material
Aluminum + PC
Operating temperature
-20ºC ~ +55ºC
Energy efficiency 2021
A+
Energy efficiency 2023
F
Lifespan
35.000h
Certification
CE - RoHS
Warranty
3 años

Specific References

EAN13
8435637211017
