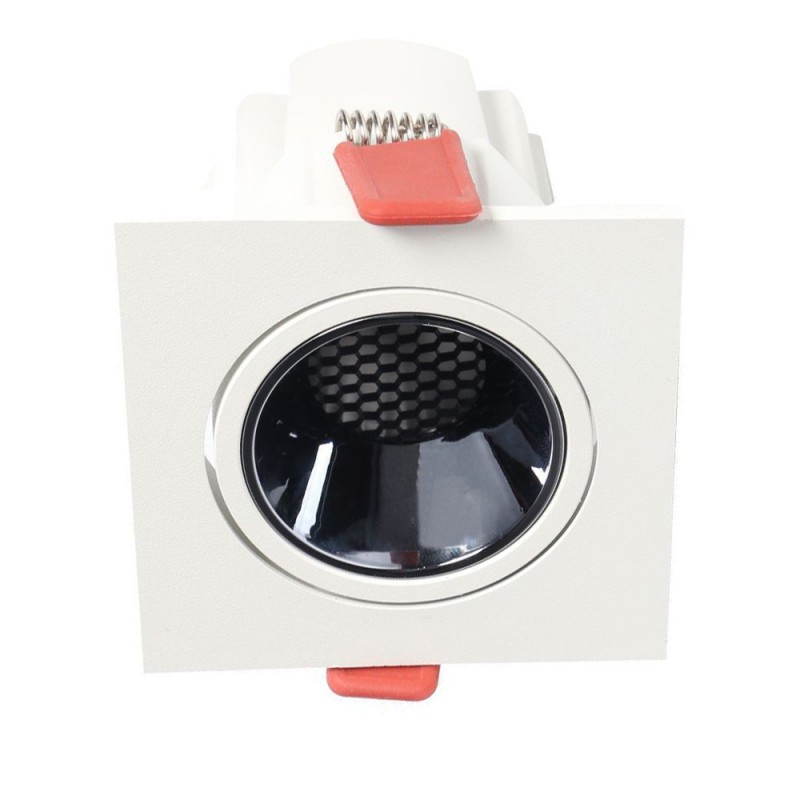

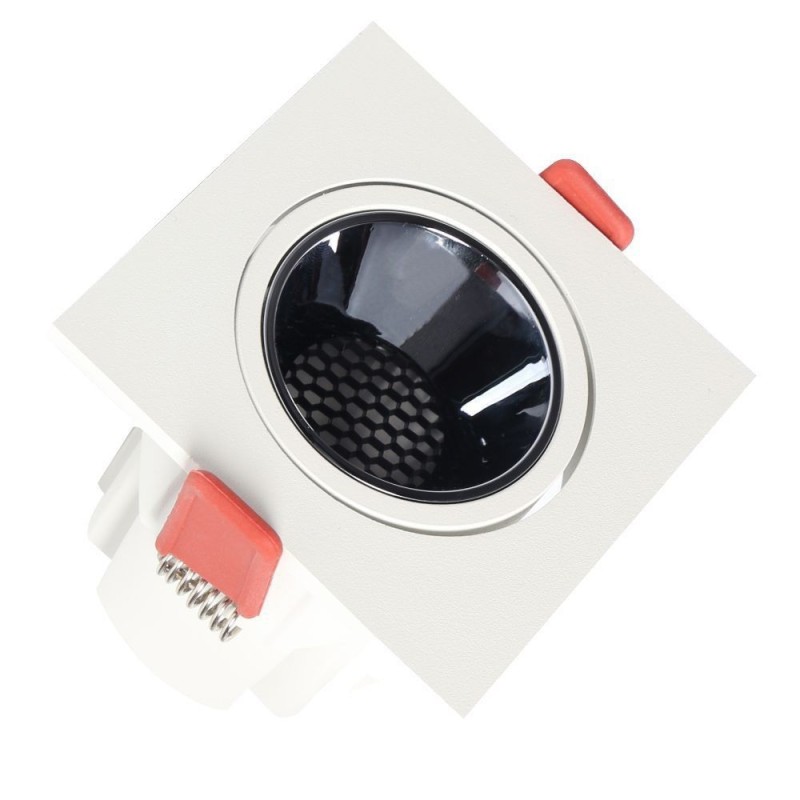

5 to 12W Square White Recessed Selectable CCT LED Spotlight 40º UGR11 1200Lm
The Recessed LED Downlight square is a multifunctional lighting solution that adapts to a wide variety of needs thanks to its multiple power and color temperature combinations.

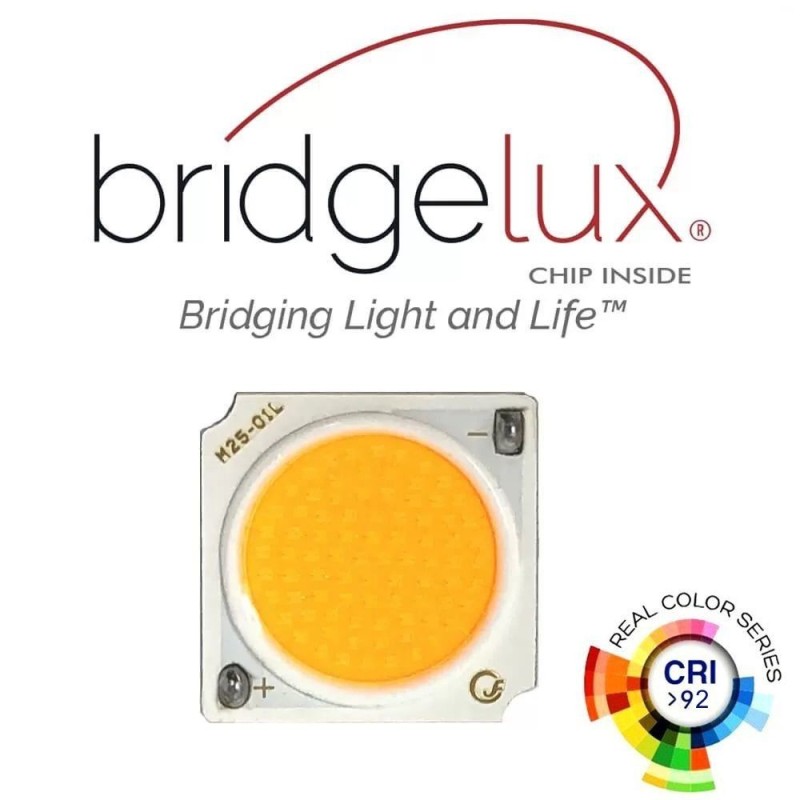

Equipped with a high-brightness Bridgelux LED chip, this LED downlight offers a luminous flux of up to 1200 lumens operating at 12W. Its 40º optics are specially designed to provide precise and focused lighting, while the honeycomb grille significantly reduces glare, with a UGR<11, making it perfect for decoration and architectural projects.
Made of aluminum and lacquered in white, this downlight allows the selection of:

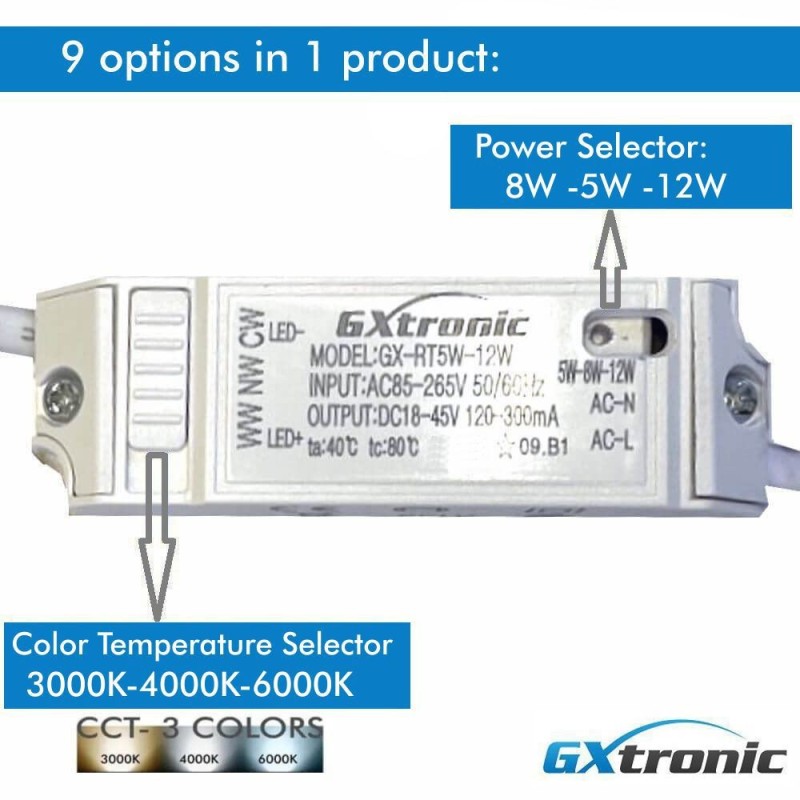

- Power options: Selectable between 5W, 8W, and 12W

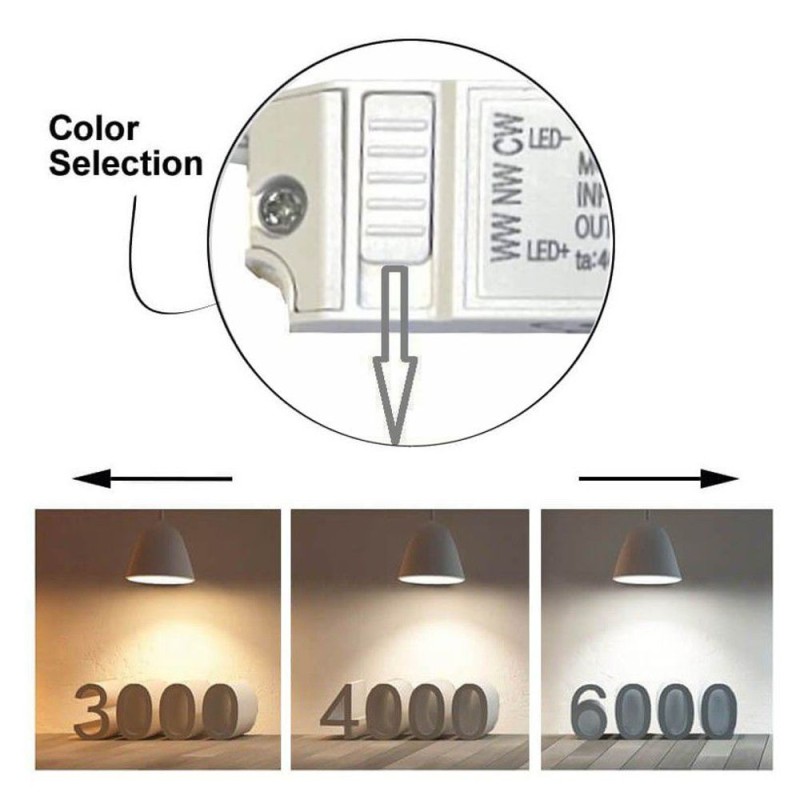

- Color temperatures: Selectable between 3000K, 4000K, and 6000K
- Luminous flux: Up to 1200 lumens at 12W
- Optics: 40º with honeycomb grille
- UGR: <11
- Color rendering index (CRI): +92
- Material: Aluminum lacquered in white

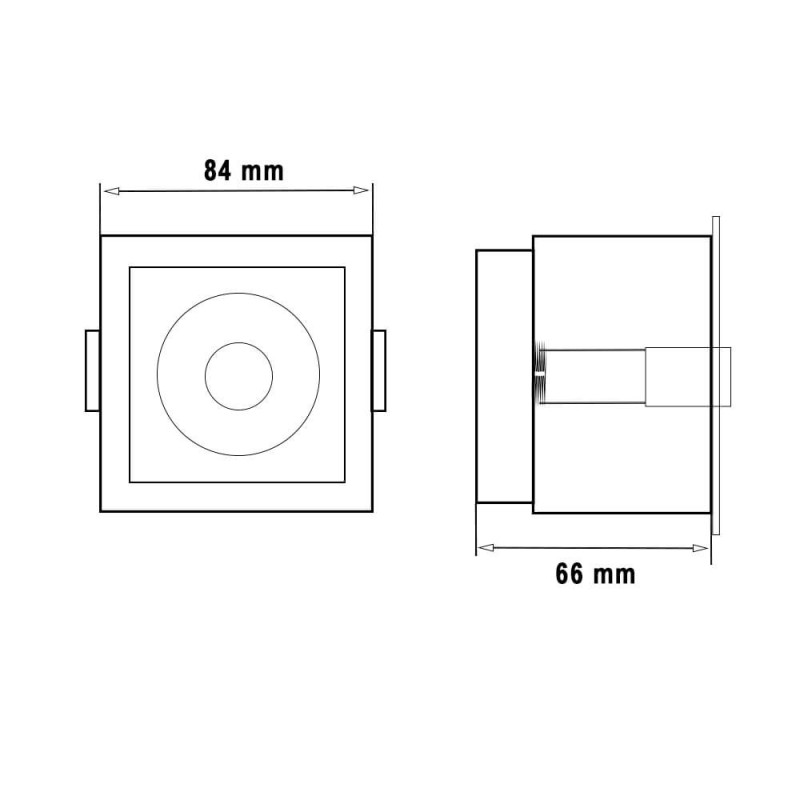

- Dimensions: 84x84x66mm
- Ceiling cutout: Ø75mm
Multifunctional Square LED Recessed Spotlight CCT 5 to 12W Black
The V2.0 Recessed LED Downlight square is a multifunctional lighting solution that adapts to a wide variety of needs thanks to its multiple power and color temperature combinations.
Made of aluminum and lacquered in black, this downlight allows the selection of:
- Power options: Selectable between 5W, 8W, and 12W
- Color temperatures: Selectable between 3000K, 4000K, and 6000K
This flexibility makes it the ideal choice for both domestic and professional use, allowing lighting to be adjusted to the specific needs of each project.
High-Performance Lighting
Equipped with a high-brightness Bridgelux LED chip, this LED downlight offers a luminous flux of up to 1200 lumens operating at 12W. Its 40º optics are specially designed to provide precise and focused lighting, while the honeycomb grille significantly reduces glare, with a UGR<11, making it perfect for decoration and architectural projects.
Superior Color Rendering
With a CRI+92 color rendering index, this LED downlight guarantees exceptional color reproduction with intensity and fidelity. This is particularly beneficial in commercial environments where enhancing product color is crucial to attracting customer attention.
Technical Specifications of the Multifunctional LED Downlight
- Power: Selectable between 5W, 8W, and 12W
- Luminous flux: Up to 1200 lumens at 12W
- Color temperature: Selectable between 3000K, 4000K, and 6000K
- Optics: 40º with honeycomb grille
- UGR: <11
- Color rendering index (CRI): +92
- Material: Aluminum lacquered in black
- Dimensions: 84x84x66mm
- Ceiling cutout: Ø75mm
Recommended Applications
- Decoration and architecture projects: Focused lighting with low glare to highlight architectural elements.
- Shops and stores: Superior color rendering to enhance product colors.
- Homes: Adjust the power and color temperature according to the needs of each space.
- Offices: Provides a comfortable and visually attractive work environment.
Data sheet
- Power (W)
- 5
8
12
- Power source (V)
- 85-265V
- Color temperature CCT
- Seleccionable 3000K-4000K-6000K
- LED
- COB
- LED chip brand
- BRIDGELUX
- Luminous efficacy (Lm/W)
- 100
- Brightness (Lm)
- 1200
- CRI
- +92
- Colour
- White
- IP
- IP20
- Luminous angle
- 40º
- Frequency (Hz)
- 50-60Hz
- Measures (mm)
- 84x84x66mm
- Medida de corte (mm.)
- Ø75mm
- Material
- Aluminum + PC
- Operating temperature
- -20ºC ~ +55ºC
- Energy efficiency 2021
- A+
- Energy efficiency 2023
- F
- Lifespan
- 35.000h
- Certification
- CE - RoHS
- Warranty
- 3 años
Specific References
- EAN13
- 8435637220798
