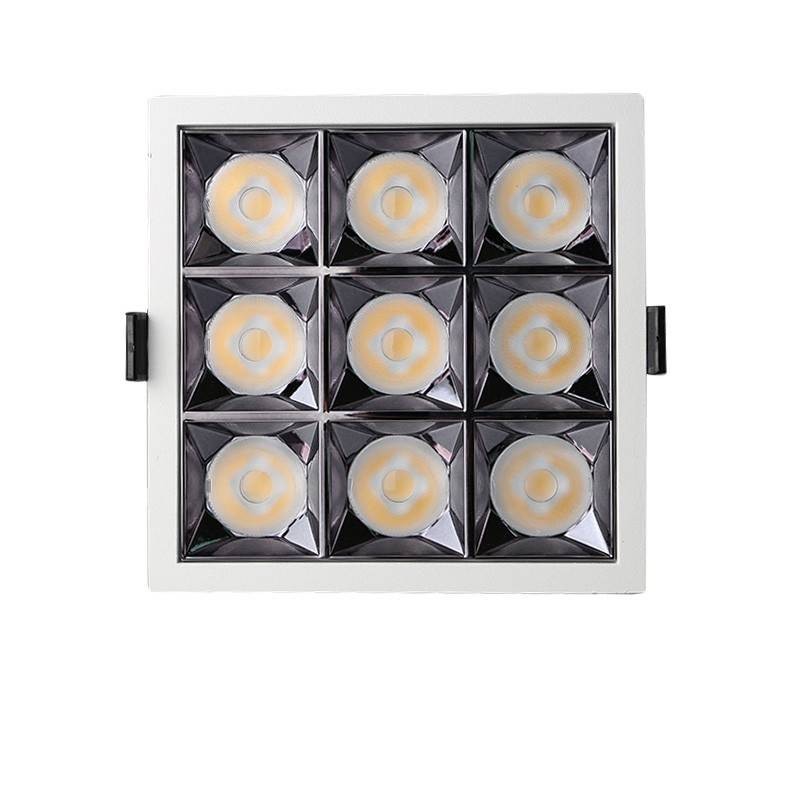

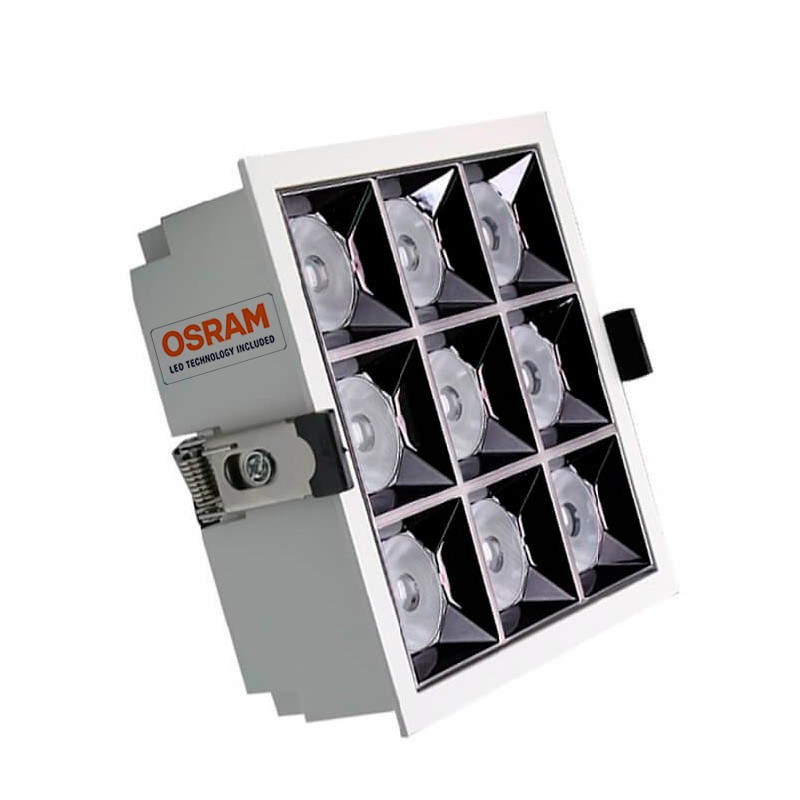

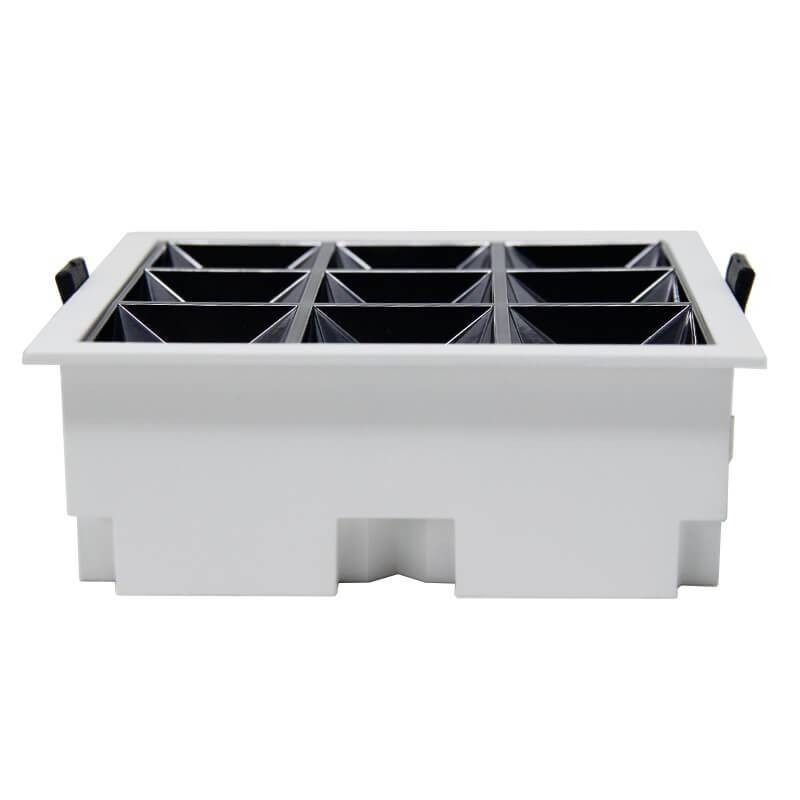

40W Recessed Square LED Spotlight OSRAM chip 24º Anti-glare UGR17
The 40W Recessed LED Spotlight is an ideal solution for those looking for high-quality lighting with a modern and functional design.

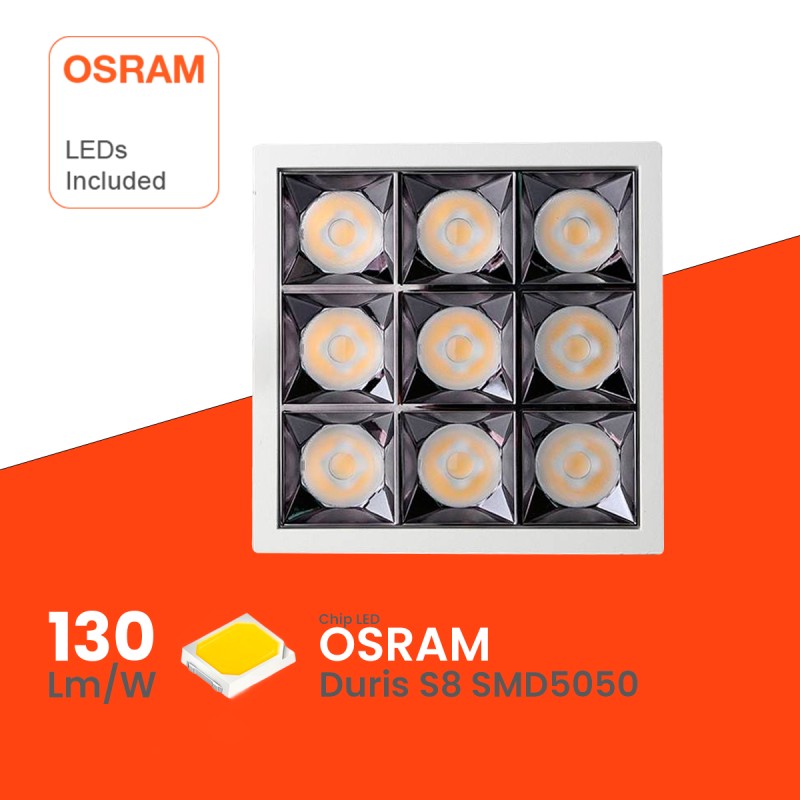

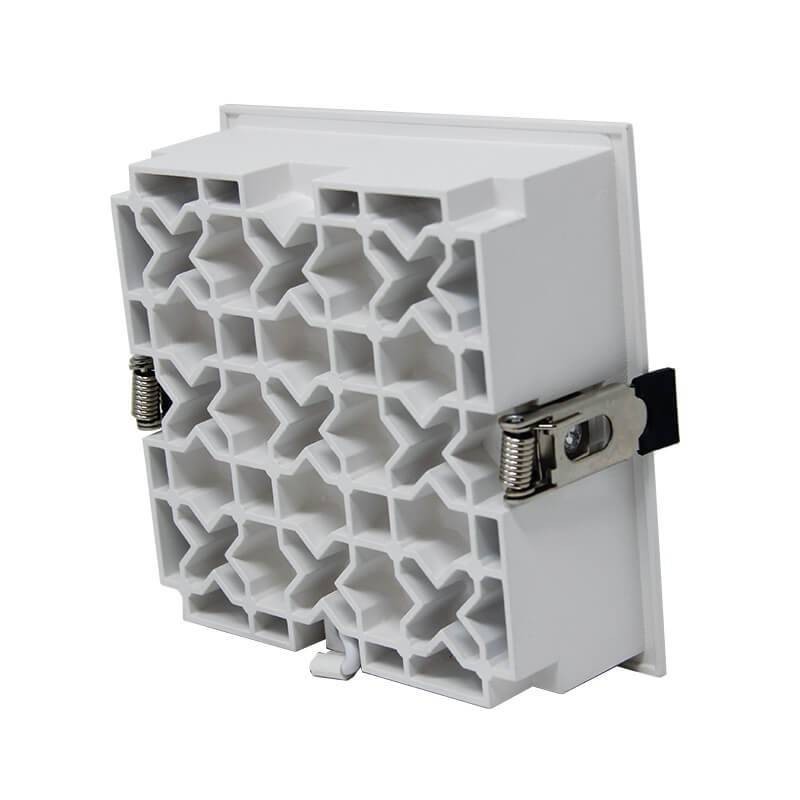

Made of white lacquered aluminum, this downlight features a transparent polycarbonate diffuser and is equipped with a high-efficiency OSRAM SMD5050 LED CHIP, capable of generating a luminous flux of 4400 lumens. Its compact square design of 130x130mm requires a ceiling cutout of just 120x120mm, making installation easy with the integrated spring clips.
With a 24º closed optic, this downlight offers concentrated and focused lighting, ideal for highlighting specific areas. Its glossy black reflector aids in proper light diffusion, while the low glare index UGR<17 ensures comfortable and pleasant lighting, reducing visual fatigue.
- Power: 40W
- Luminous Flux: 4400 lumens

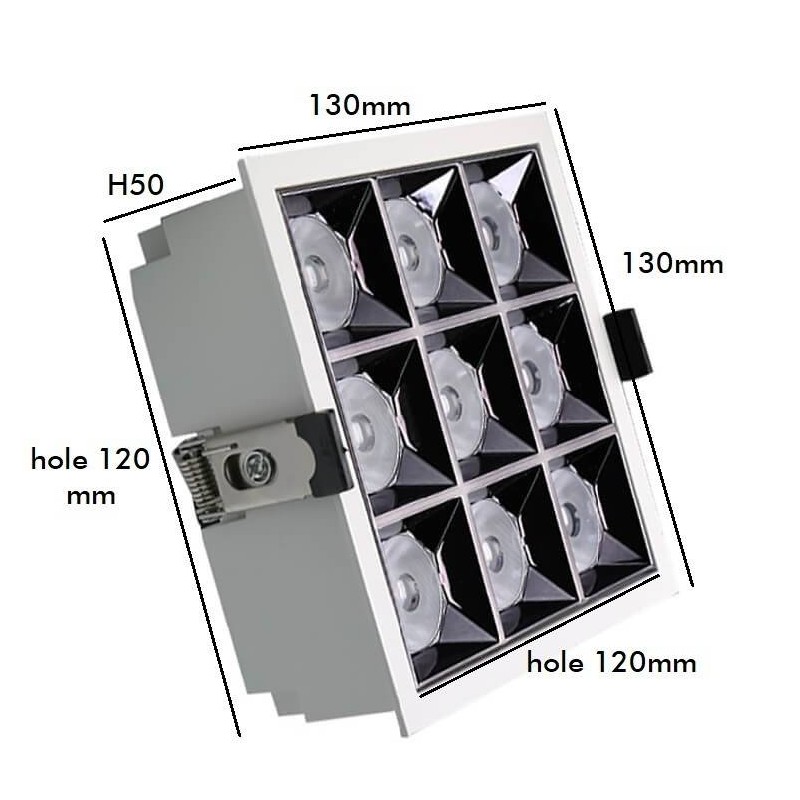

- Dimensions: 130x130mm
- Cutout Size: 120x120mm
- Closed Optic: 24º
- UGR Index: <17
- Material: White lacquered aluminum and transparent polycarbonate
- Protection Rating: IP20

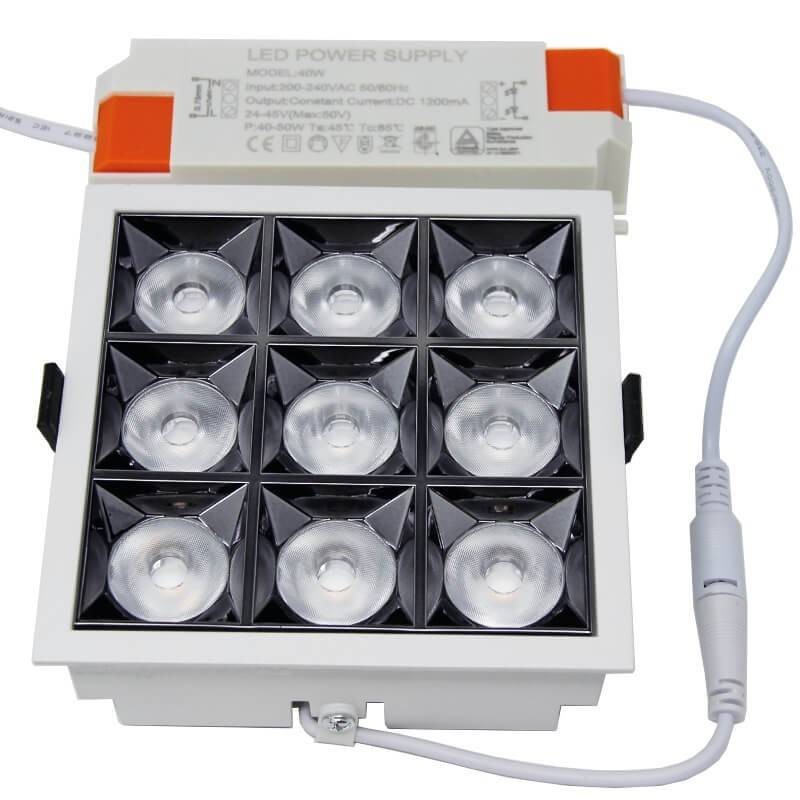

- External Driver: Included (non-dimmable)
Square Recessed LED Spotlight 40W OSRAM 24º UGR<17 4400 lm
A 40W square recessed spotlight with a 24º closed optic and low glare UGR<17. With 4400 lumens, it delivers intense, focused light, ideal for precise highlighting in shops and hospitality.
⚡ 40W💡 4400 lm🔄 24º👁 UGR<17
| 40W Power | 4400 lm Luminous flux | 24º Optic | UGR<17 Visual comfort |
The 40W square recessed LED spotlight delivers intense, focused light thanks to its 24º closed optic. With a luminous flux of 4400 lumens and a low-glare UGR<17 index, it highlights products and specific areas with precise, comfortable light.
Made from white-lacquered aluminium and clear polycarbonate, it includes an external driver (non-dimmable). With 130x130 mm dimensions (120x120 mm cut-out) and IP20 protection, it recesses into shops, hospitality and upscale residential spaces.
Why choose this product?
Intense, focused light for accenting.
Low glare for great visual comfort.
Powerful, precise lighting for highlighting.
Technical specifications
| Product type | Square recessed LED spotlight |
|---|---|
| Power | 40W |
| Luminous flux | 4400 lm |
| Closed optic | 24º |
| UGR | < 17 |
| Material | White-lacquered aluminium and clear polycarbonate |
| Driver | External (non-dimmable) |
| Dimensions | 130 x 130 mm |
| Cut-out | 120 x 120 mm |
| Protection | IP20 |
Advantages
- 24º optic: intense, focused light.
- UGR<17: low glare, visual comfort.
- 4400 lumens: powerful, precise lighting.
- White-lacquered aluminium: elegant finish.
- External driver included: complete installation.
- Square format: modern recessed design.
Recommended applications
| 🚪 | Shops and malls — highlighting products. |
| 🏠 | Hotels, bars and restaurants — pleasant decorative lighting. |
| 🏛 | Living and dining rooms — elegant lighting. |
| 🌿 | Kitchens and work areas — intense, focused light. |
Installation guide
| 1 | Switch off the power Cut the supply before installation. |
| 2 | Make the cut-out Cut the ceiling to 120x120 mm dimensions. |
| 3 | Connect the driver Connect the external driver to the spotlight and mains. |
| 4 | Recess it Insert the spotlight into the cut-out and restore power. |
Frequently asked questions
24º (closed optic), for intense, focused light.
A low-glare index ensuring great visual comfort.
No, it is supplied with a non-dimmable external driver.
| 🔄 24º Closed optic | 👁 UGR<17 Visual comfort | 💡 4400 lm 40W | 📦 In stock Fast shipping |
Data sheet
- Power (W)
- 40
- Power source (V)
- 85-265V
- Color temperature CCT
- 3000K
4000K
- LED
- SMD2835
- LED chip brand
- OSRAM
- Luminous efficacy (Lm/W)
- 110
- LED diode efficiency (Lm/W)
- 130
- Brightness (Lm)
- 4400
- Color rendering index (Ra):
- ≥85
- IP
- IP20
- Luminous angle
- 24º
- Frequency (Hz)
- 50-60Hz
- Measures (mm)
- 130x130x50mm
- Medida de corte (mm.)
- 120x120mm
- Material
- Aluminum + PMMA
- Operating temperature
- -20ºC ~ +55ºC
- Energy efficiency 2021
- A+
- Lifespan
- 50.000h
- Certification
- CE - RoHS
- Warranty
- 3 años
Specific References
- ean13
- 8435637202923
