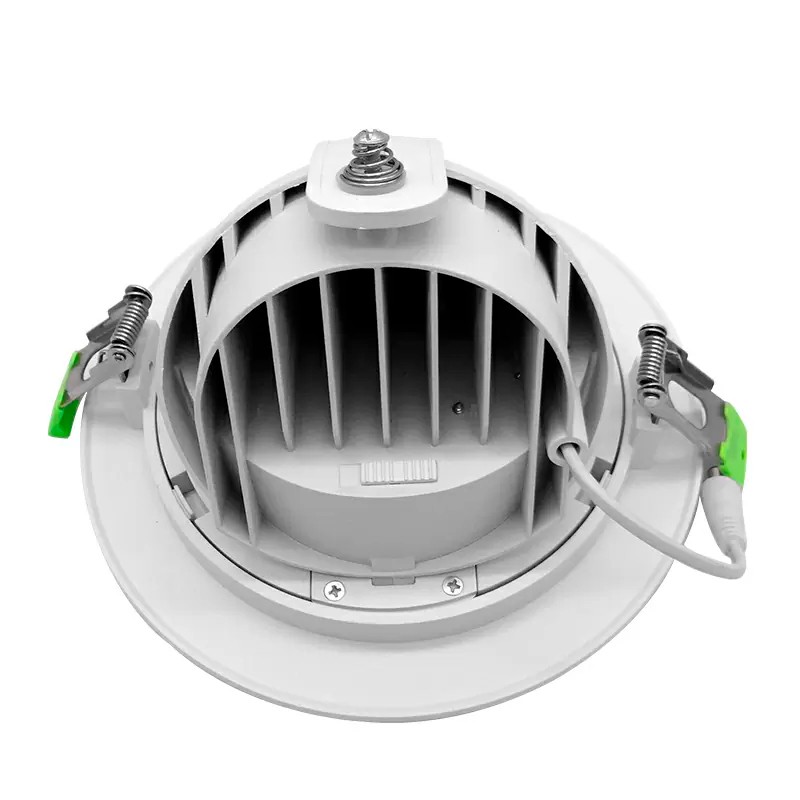

38W CCT OSRAM/LIFUD 5980Lm Circular Tilting LED Downlight

34.95 € (tax incl.)
Available
In stock: 235 Items
Reference:
IL-4825

38W Circular Tilting LED Downlight with OSRAM SMD2835 LED chips and a high luminous efficiency of 160Lm/W, delivering a luminous flux of 5980 lumens. The LED spotlight has a 60º optic, and its head is directional up to 60º. Thanks to its low power consumption, it replaces halogen spotlights up to 300W. It is perfect for professional use in stores, businesses, offices, museums, shopping centers, and is commonly used to highlight products in display cases, counters, shelves, showcases, etc.

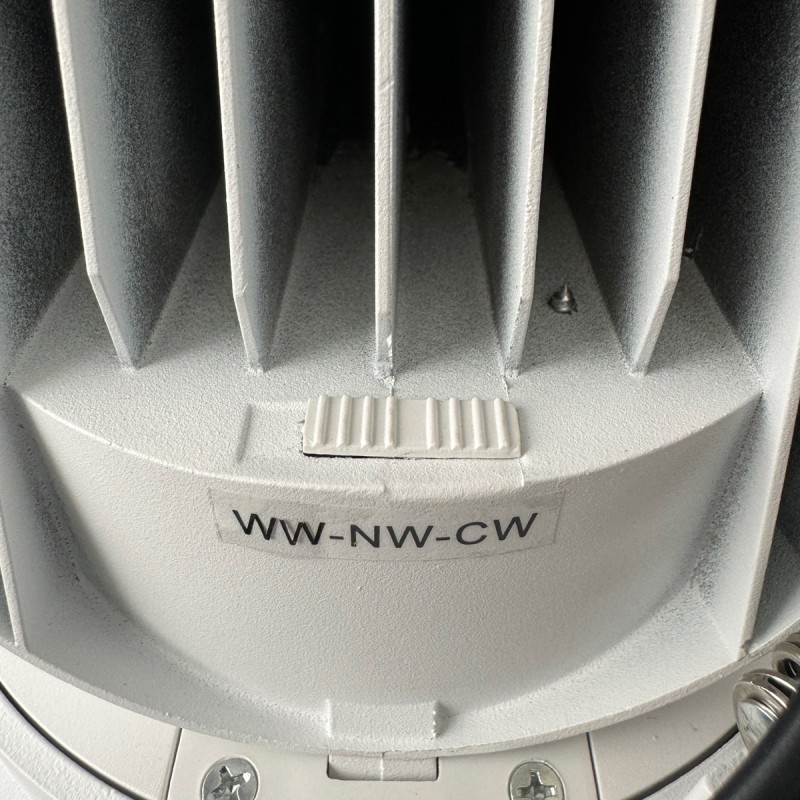

Includes a high-performance LIFUD external driver and 5 years warranty, a frosted PC diffuser with a low glare index, and a CCT temperature selector, which allows choosing the light tone between 3000K, 4000K, or 6000K.

  • ☀ 5980Lm
  • ☄ 60º
  • ⊘ 195x150mm
  • ✄ Ø180mm
  • ☂ IP20
Read moreShow less
Download PDF
You may also like
No items
Description

38W CCT OSRAM Chip Recessed Tilting LED Downlight

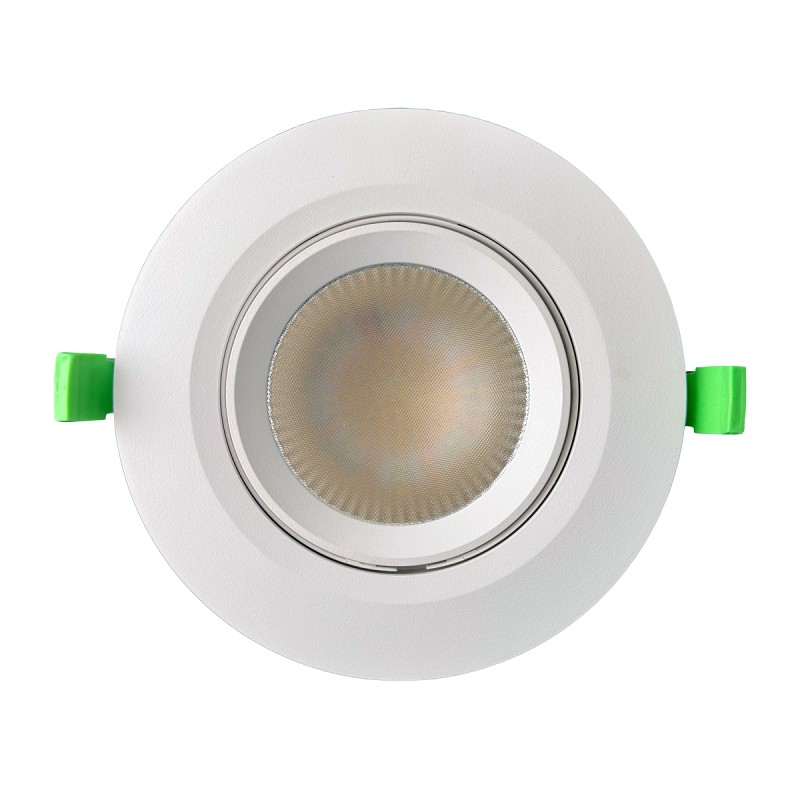

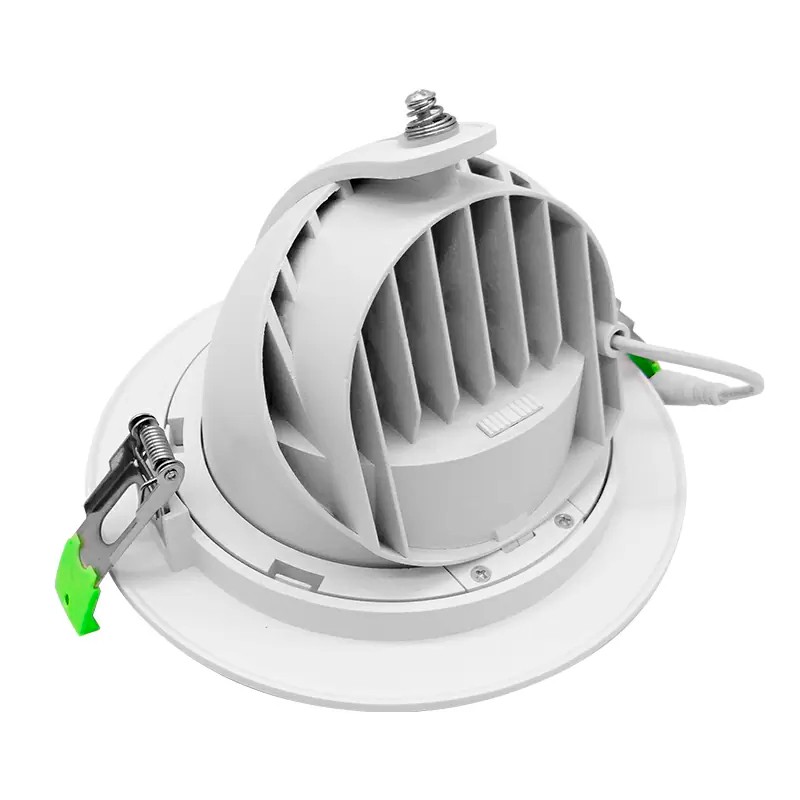

High-performance LED downlight for commercial/professional use. The LED downlight is built in a circular aluminum housing painted white, with a frosted PC diffuser.


Includes a high-efficiency OSRAM SMD2835 LED with a luminous performance of 160Lm/W and a luminous flux of 5980 lumens. With just a consumption of 38W, it replaces halide spotlights up to 300W, with significant energy savings that will reduce the electricity bill.

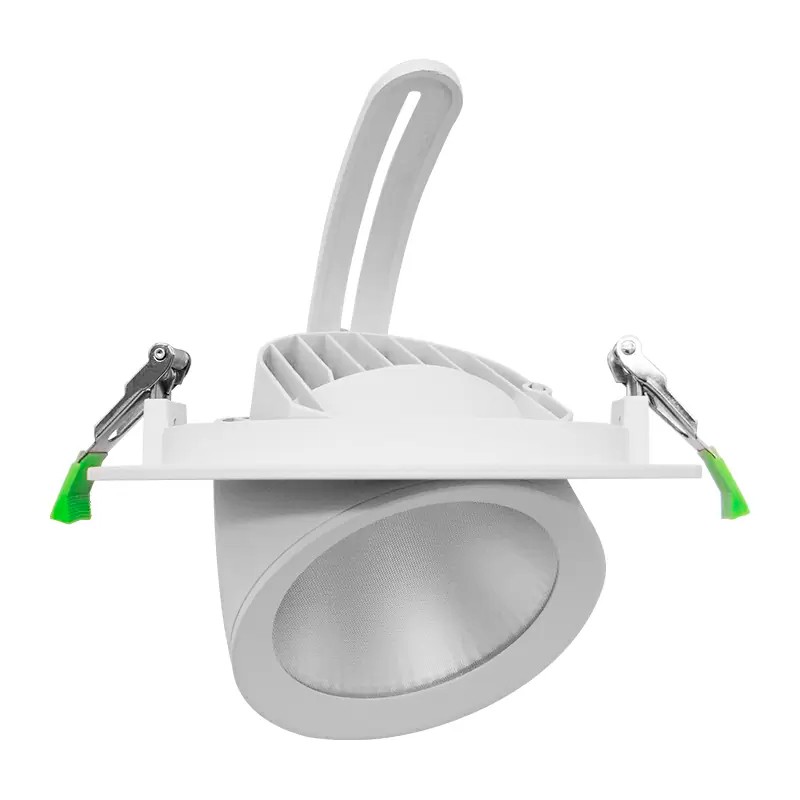

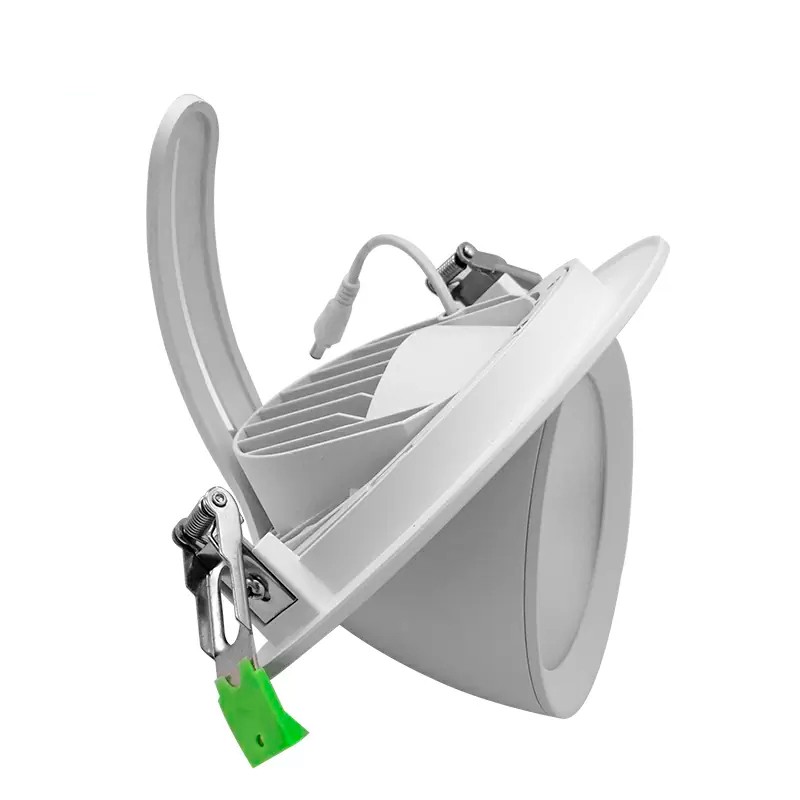

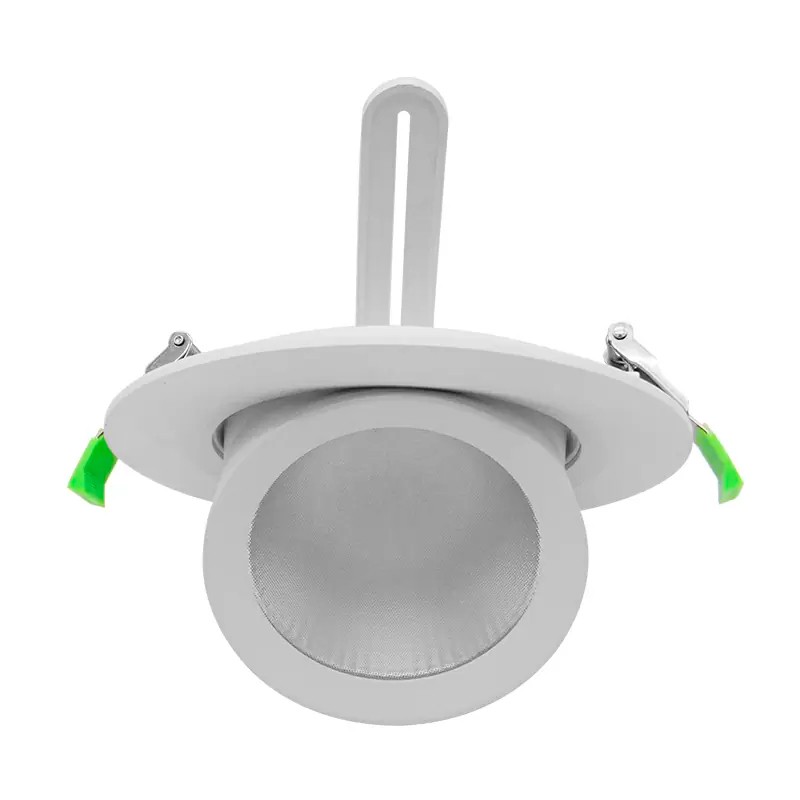

The LED downlight has a 60º optic, and its head is tiltable/rotatable/adjustable up to 60º relative to the horizontal. This is especially useful in shops, shopping centers, businesses, museums, and restaurants, where it can focus and highlight products and areas thanks to the LED lighting. Thanks to this, the tiltable LED downlight adapts to any space.

Installation and Mounting of the 38W OSRAM Chip Tilting LED Downlight


The installation of the directional LED downlight is very simple. Just connect the driver to the electrical supply and recess it using the high-resistance spring clips incorporated on its sides. The LED downlight will be perfectly flush with the ceiling, and its white trim will conceal any imperfections in both the cut and the paint.

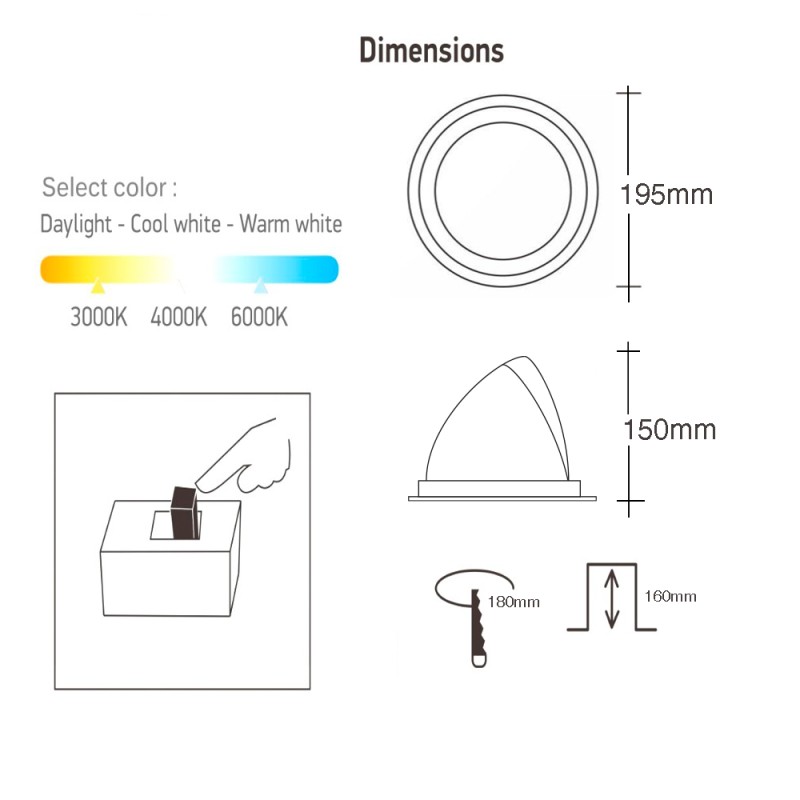

  • Outer diameter: Ø195mm
  • Cut-out diameter: Ø180mm

The LED downlight has a depth of 140mm, so you should allow this distance when embedding in false ceilings. We recommend leaving a gap of at least 150mm between the false ceiling and the slab, for proper ventilation and for the LED downlight to tilt correctly.

With an IP20 rating, the LED downlight is only suitable for indoor use.

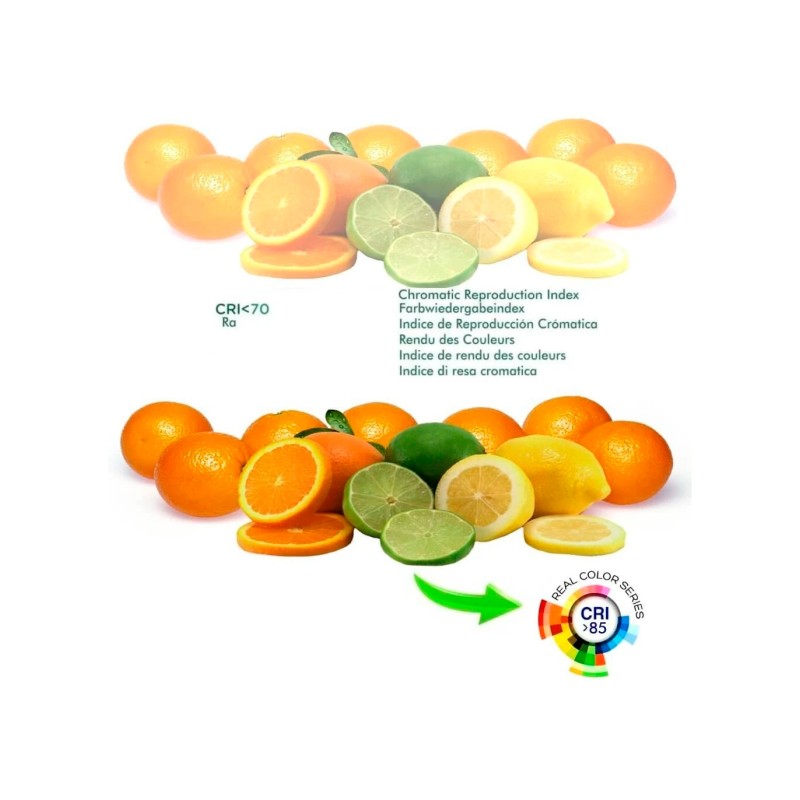

High CRI+85 Index


The OSRAM SMD2835 LED chip incorporated in the LED downlight provides excellent color rendering with a CRI+85 rating. This allows for highlighting and enhancing the colors of products in a vivid and attractive way, encouraging consumer attraction and promoting the psychological effect of purchasing.

High-Quality LIFUD External Driver Included


The recessed LED downlight includes a high-quality and durable LIFUD external driver, to maximize the lifespan of the LED board. The driver includes the latest technology in insulation and protection, meeting all CE and RoHS standards. The included driver is not dimmable.

Applications of the 38W Recessed Circular LED Spotlight


  • Stores and shops
  • Restaurants
  • Museums
  • Galleries and shopping centers
Read moreShow less
Product Details
IL-4825

Data sheet

Power (W)
38
Power source (V)
220-240V
Color temperature CCT
Seleccionable 3000K-4000K-6000K
LED
SMD2835
LED chip brand
OSRAM
LED diode efficiency (Lm/W)
0.95
Brightness (Lm)
5980
CRI
+85
IP
IP20
Luminous angle
60º
Frequency (Hz)
50-60Hz
Power factor
0.95
Measures (mm)
Ø195x150mm
Material
Aluminum + PMMA
Driver
LIFUD Flicker-free
Operating temperature
-20ºC ~ +55ºC
Energy efficiency 2021
A+
Lifespan
50.000h
Certification
CE - RoHS
Warranty
5 años
