12W Recessed Selectable CCT LED Spotlight OSRAM Chip IP54 1320Lm

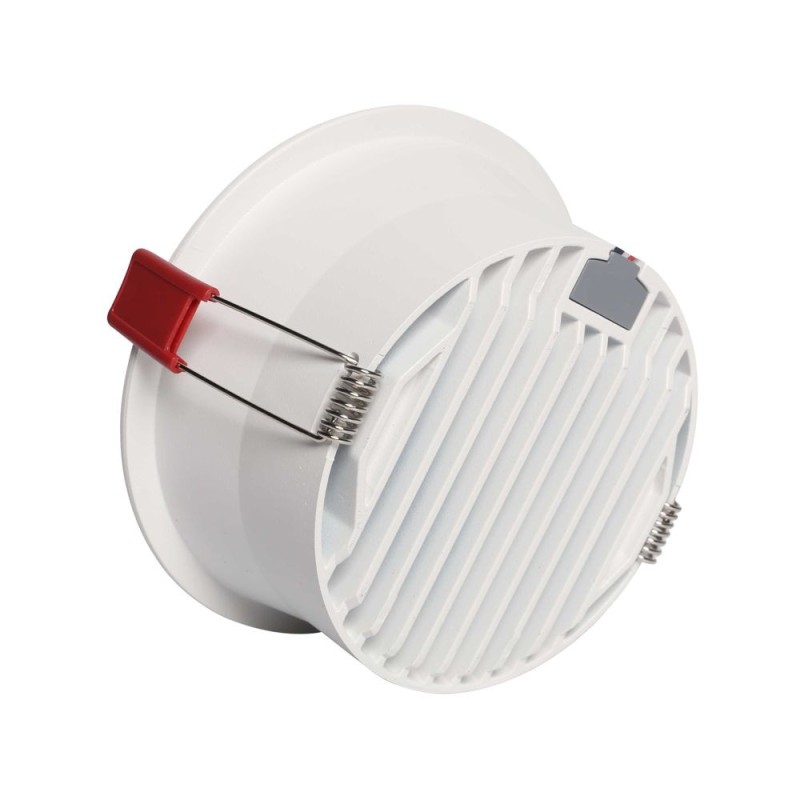

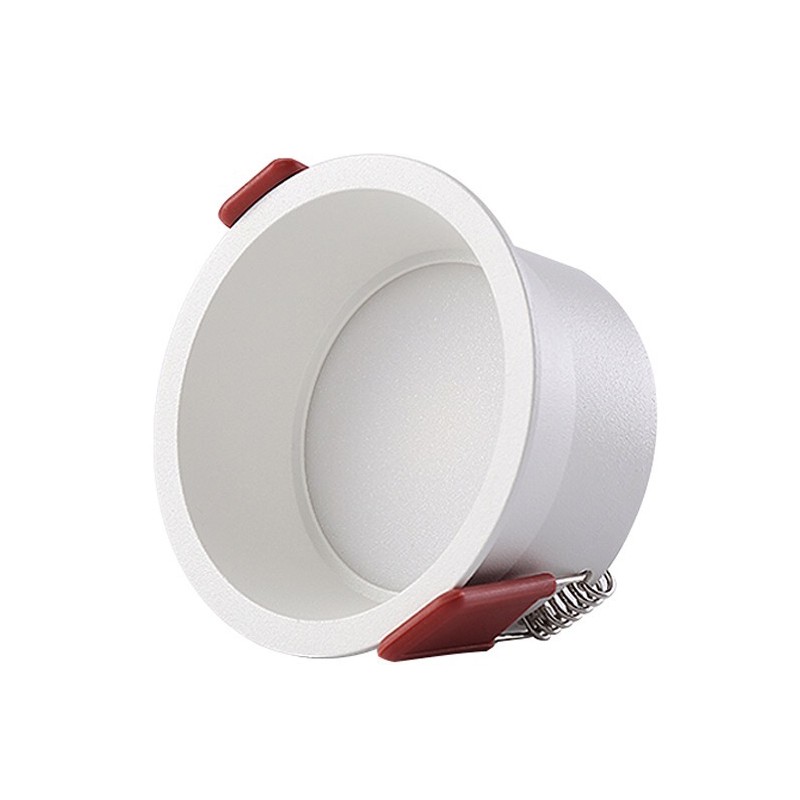

Recessed circular LED downlight in white, with excellent performance, featuring a low power consumption of 12W and a luminous flux of 1320 lumens. Made of aluminum and PC, the LED downlight incorporates a high-brightness OSRAM LED chip SMD2835 and an external driver with CCT color temperature selector function between 3000K / 4000K / 6000K in a single device.
The LED downlight has a high color rendering index CRI+82, which displays vivid and intense colors, true to life.
With an IP54 protection rating on the panel, it is suitable for installations in humid areas such as bathrooms, kitchens, or laundry rooms.

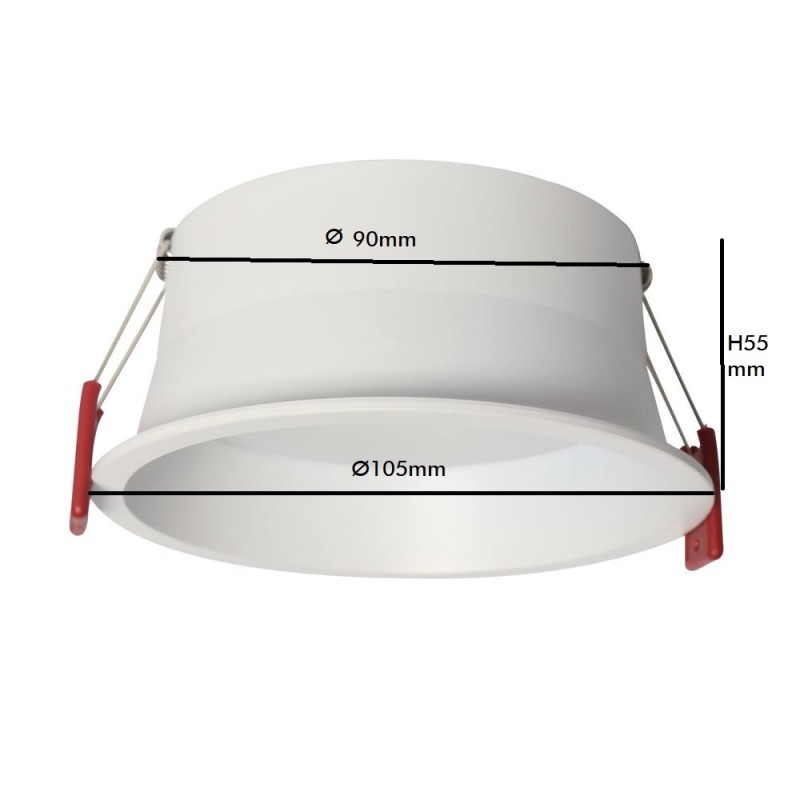

- Dimensions: Ø105x60mm
- Cut-out: Ø90mm
Recessed LED Spot round 12W CCT 1320 lm UGR<17 OSRAM Chip IP54

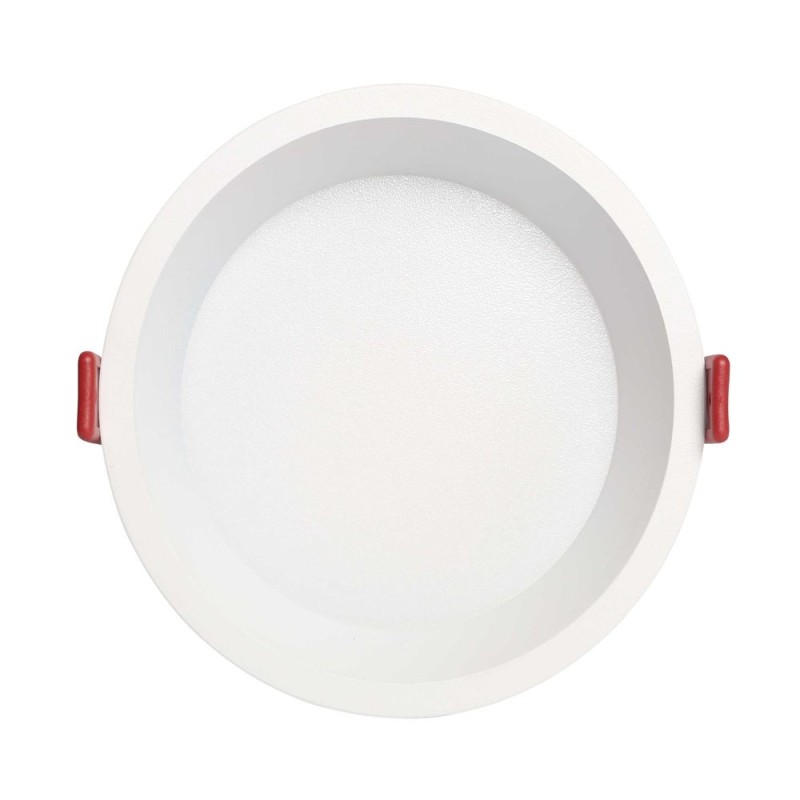

The 12W recessed round recessed led spot with a OSRAM chip delivers 1320 lumens (120º), with a microprismatic diffuser UGR < 17 that reduces glare. Selectable CCT temperature via the included driver, IP54.
⚡ 12W💡 1320 lm👀 UGR < 17🌈 CCT
| 12W Power | 1320 lm Luminous flux | UGR < 17 Glare | IP54 Protection |
The 12W recessed round recessed led spot, fitted with a high-performance OSRAM chip, is an efficient, durable lighting solution, perfect for commercial and residential applications. With a 120º angle, it lights any space evenly, without shadows, and provides 1320 lumens. Made of aluminium, its slim, refined design adds a modern touch.
Its microprismatic diffuser (UGR < 17) significantly reduces glare and eye strain, for comfortable lighting. The colour temperature is selectable thanks to the included driver, letting you adapt the atmosphere to each room in a single device. IP54 protection, suited to dusty or damp environments.
Why choose this product?
Reduces glare, comfortable lighting.
Adapt the temperature to each room (driver included).
1320 lm, 120º, aluminium.
Available light shades
Available in three selectable colour temperatures, to match the atmosphere of each space:
| 3000 K Warm white | 4000 K Neutral white | 6000 K Cool white |
Technical specifications
| Product type | Recessed round Recessed LED Spot |
|---|---|
| Power | 12W |
| Luminous flux | 1320 lm |
| LED chip | OSRAM |
| Beam angle | 120º |
| Diffuser | Microprismatic (UGR < 17) |
| Material | Aluminium |
| Protection | IP54 |
| Ceiling cut-out | Ø90 mm |
| Driver | Included |
Advantages
- UGR < 17: microprismatic diffuser.
- Selectable CCT: temperature of choice.
- 1320 lm at 12W: even lighting.
- OSRAM chip: high performance.
- Driver included: CCT selector.
- IP54: dusty/damp environments.

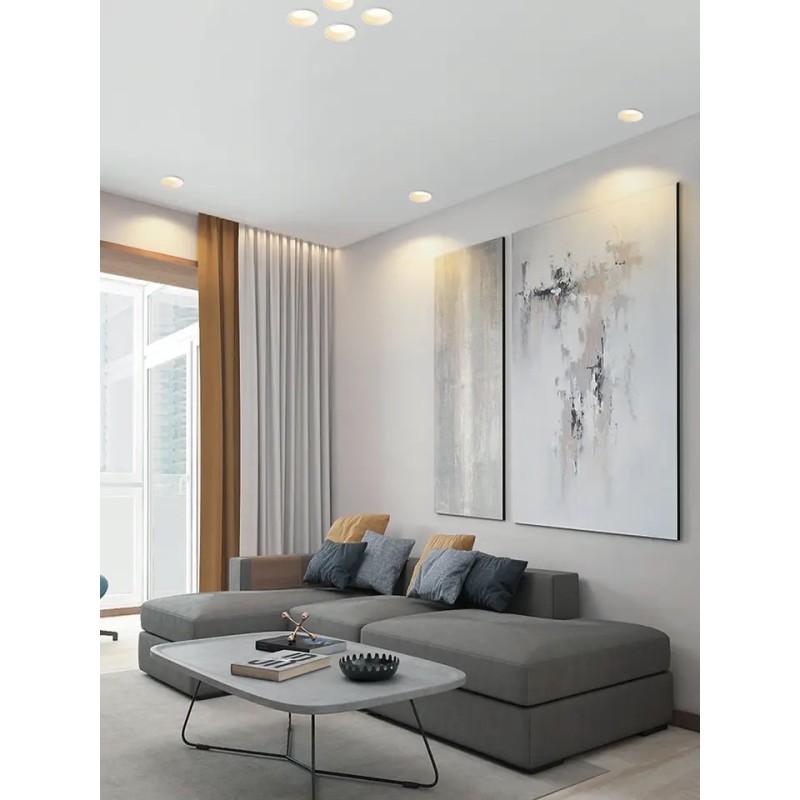

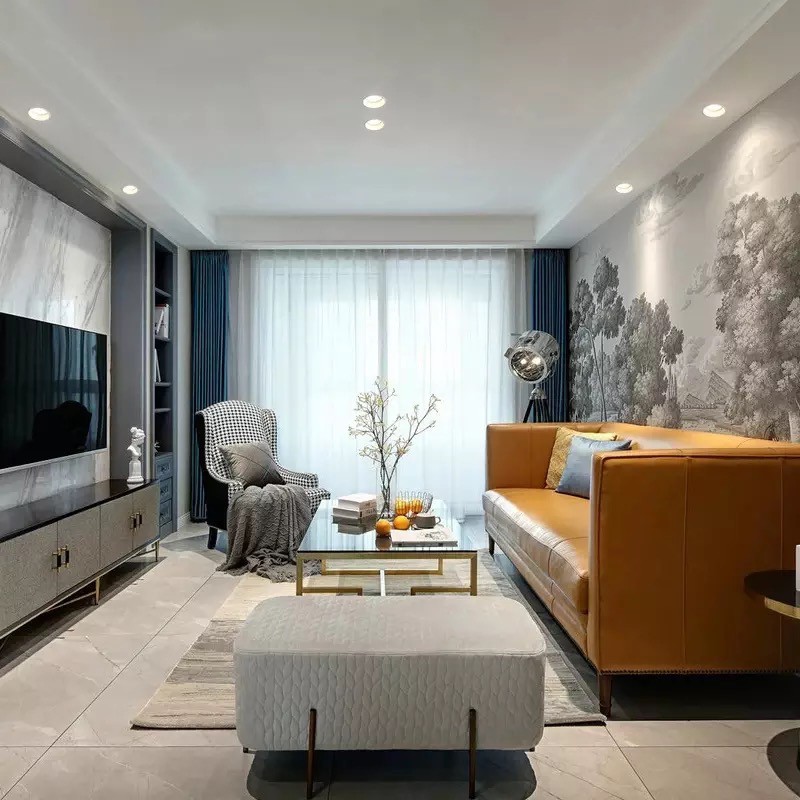

Recommended applications

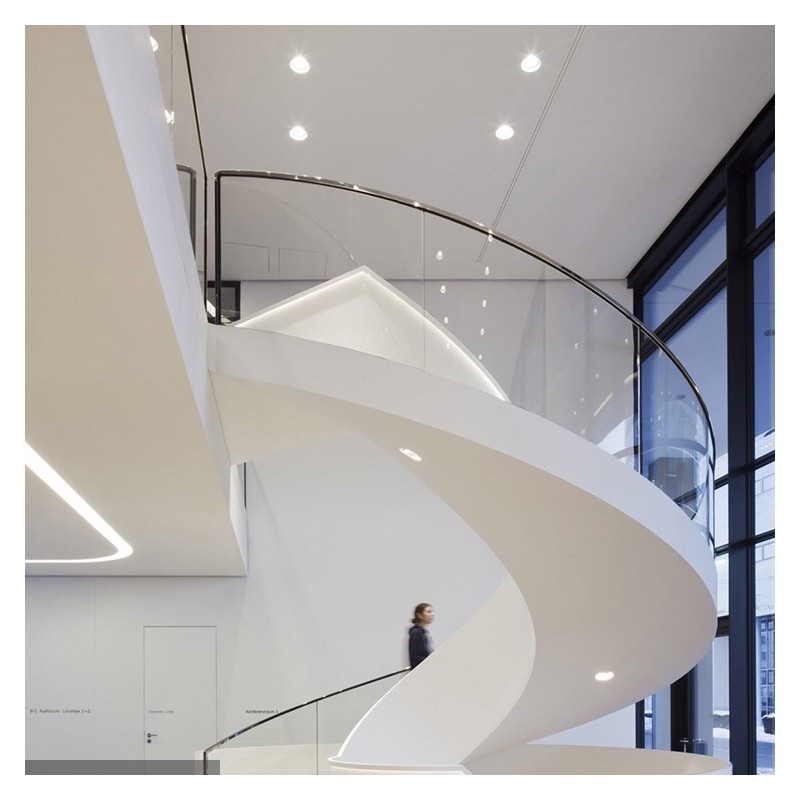

| 🚪 | Offices and shops — comfortable lighting. |
| 🏠 | Hotels and restaurants — adjustable atmosphere. |
| 🏛 | Bathrooms and kitchens — damp areas. |

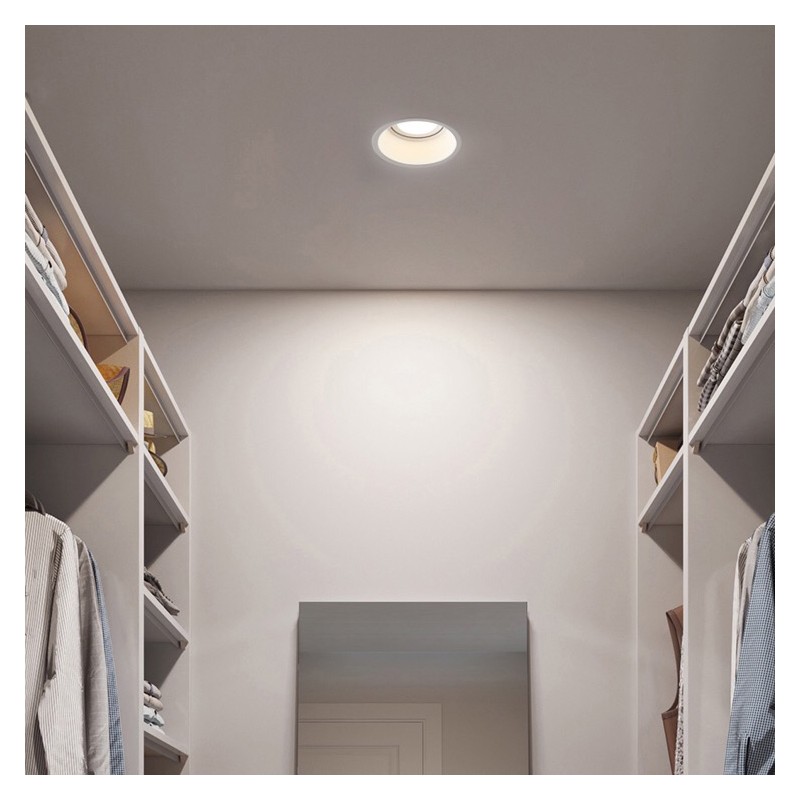

| 🌿 | Homes — false ceilings. |
Installation guide
| 1 | Switch off the power Cut the supply before installation. |

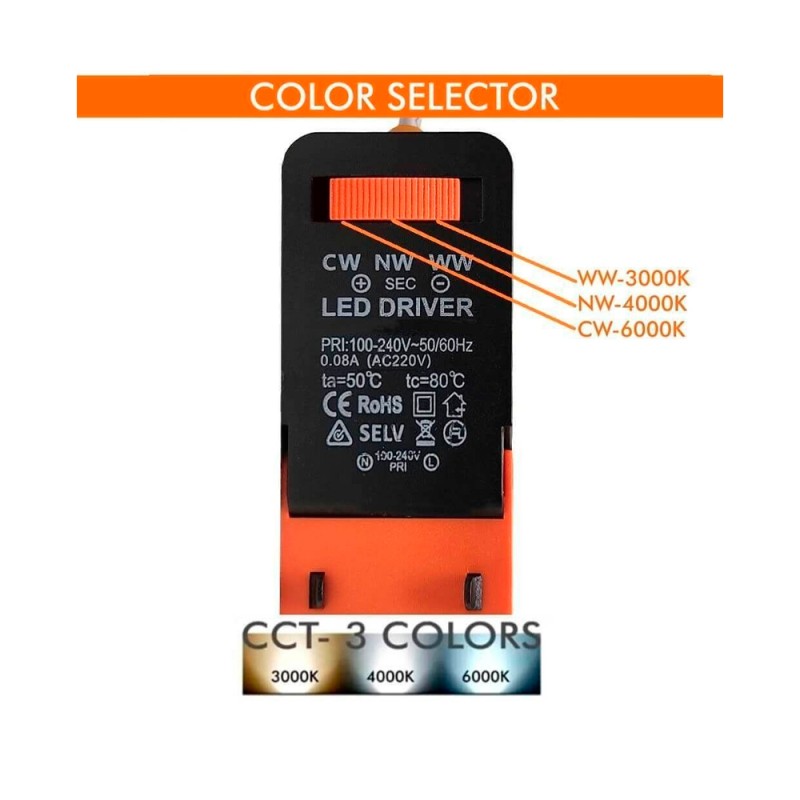

| 2 | Choose the temperature Set the CCT selector on the driver. |

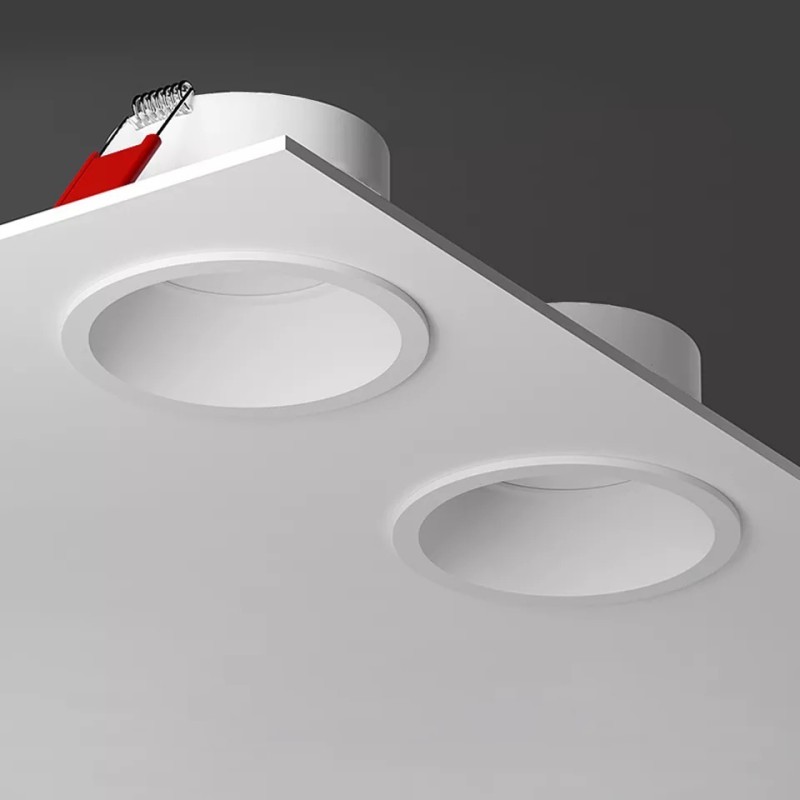

| 3 | Prepare the cut-out Make a Ø90 mm cut-out and wire the driver. |

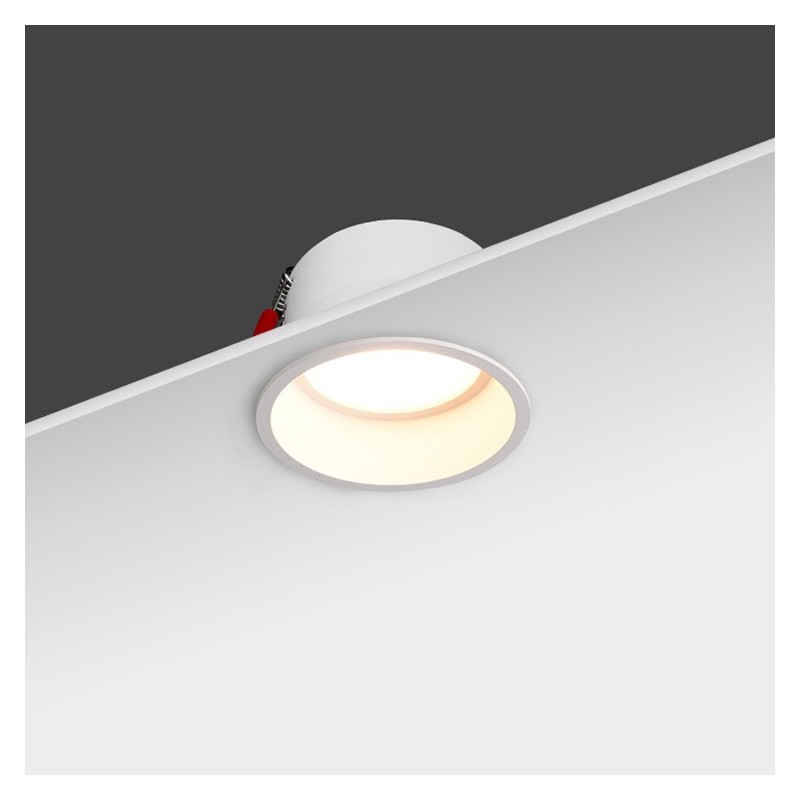

| 4 | Recess and check Insert the luminaire and check the lighting. |
Frequently asked questions
Yes, the CCT is selectable via the included driver.
Yes, its microprismatic diffuser offers a UGR < 17.
Ø90 mm.
| ⚡ 12W 1320 lm | 👀 UGR<17 CCT | 🌈 Selectable OSRAM | ☂ IP54 Driver incl. |
Data sheet
- Power (W)
- 12
- Power source (V)
- 85-265V
- Color temperature CCT
- Seleccionable 3000K-4000K-6000K
- LED
- SMD2835
- LED chip brand
- OSRAM
- Luminous efficacy (Lm/W)
- 110
- Brightness (Lm)
- 1320
- Colour
- White
- IP
- Luminaire: IP54 / Driver: IP20
- Luminous angle
- 120º
- Frequency (Hz)
- 50-60Hz
- Measures (mm)
- Ø105x60mm
- Medida de corte (mm.)
- Ø90mm
- Operating temperature
- -20ºC ~ +55ºC
- Energy efficiency 2021
- A+
- Energy efficiency 2023
- F
- Lifespan
- 30.000h
- Certification
- CE - RoHS
- Warranty
- 3 años
Specific References
- EAN13
- 8435637211079
