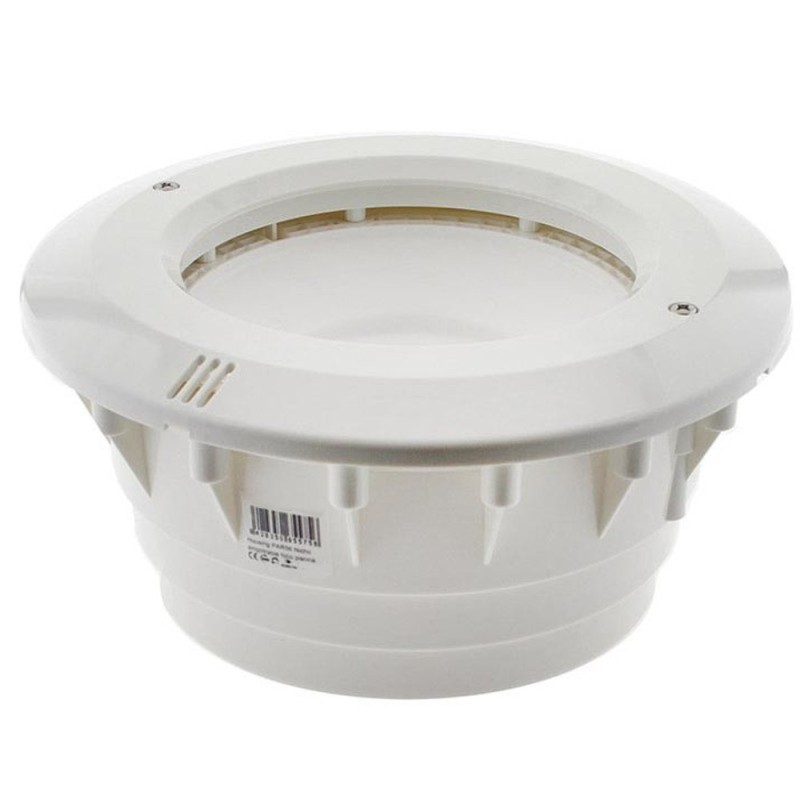

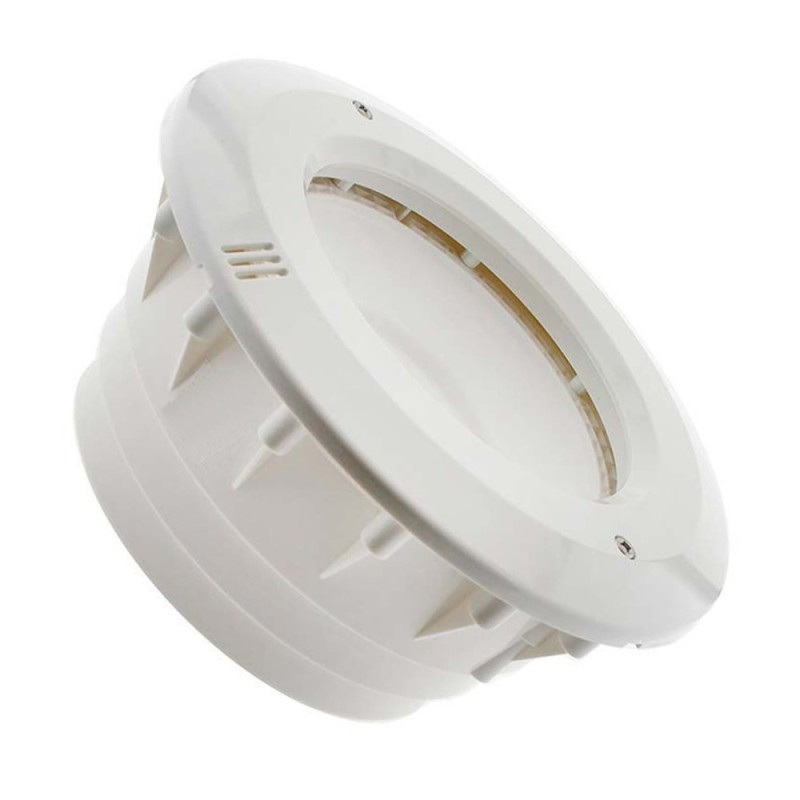

Recessed Housing PAR56 Niche for Pool LED Spotlight
The recessed housing for swimming pools is specifically designed to house a PAR56 LED lamp, ensuring its protection and optimal performance in aquatic environments. Made of high-quality ABS, this housing guarantees perfect protection of the bulb's connection terminals, maintaining waterproofing with its IP68 protection rating.

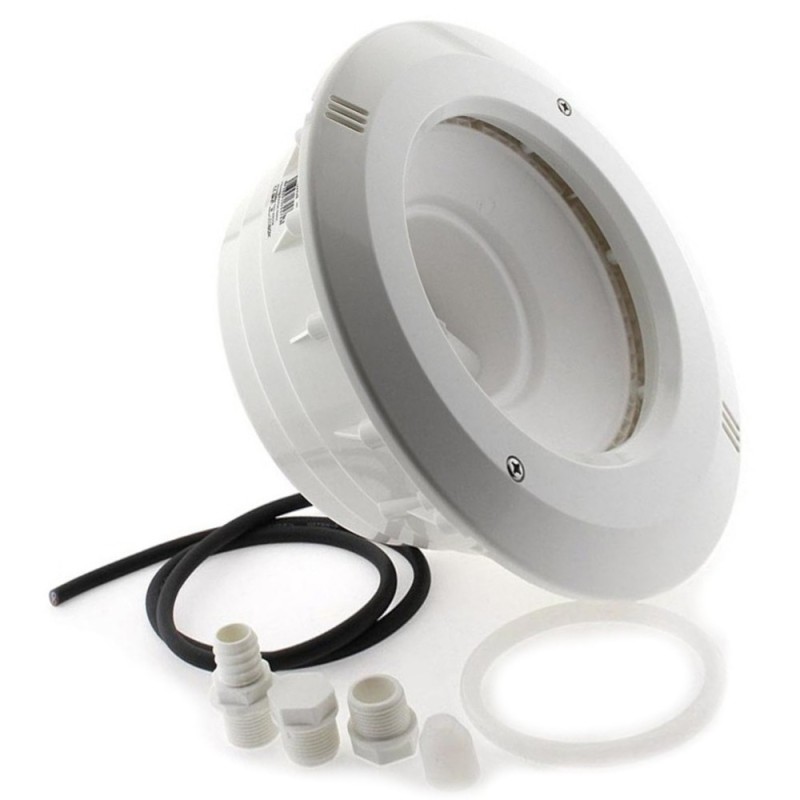

Each housing includes its trim, plugs, and one meter of cable with polypropylene insulating sheath, ensuring a secure and durable connection of the lamp to the electrical network. This robust and reliable design is ideal for maintaining the integrity of the electrical system underwater.
For recessed installation in concrete or polyester pools, it is essential to fill the gap with specific pool material, thus ensuring the watertightness of the entire system once installed.
*PAR56 LED bulb not included.
- Material: High-quality ABS
- Compatibility: PAR56 LED lamps
- Protection: IP68 for total waterproofing

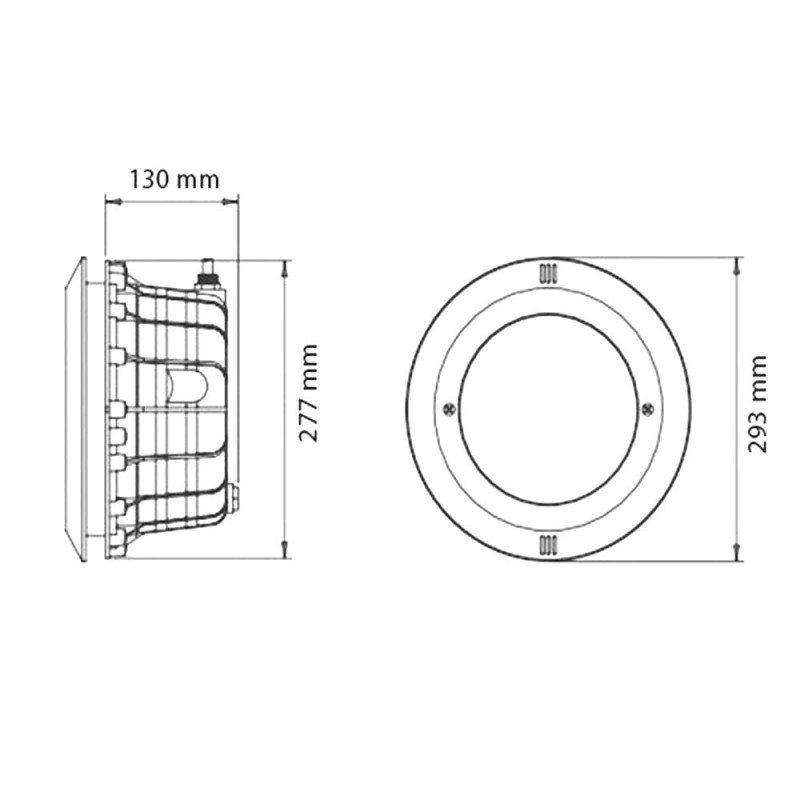

- Cutout Dimensions: Ø277x130mm
- Applications: Concrete and polyester pools
Recessed PAR56 Niche Housing for Concrete and Polyester Pools IP68
The recessed PAR56 niche housing holds a PAR56 LED lamp in concrete or polyester pools. In high-quality ABS, IP68, it includes a trim ring, plugs and 1 m of sheathed cable. Ø277x130 mm cut-out. PAR56 lamp not included.
💧 IP68🔨 ABS📐 Ø277 mm🔌 PAR56
| PAR56 Compatibility | IP68 Sealing | ABS Material | Ø277 mm Cut-out |
The recessed pool housing is specially designed to hold a PAR56 LED lamp, ensuring its protection and optimal performance in aquatic environments. Made of high-quality ABS, it guarantees protection of the bulb's connection terminals and preserves sealing thanks to its IP68 rating.
Each housing includes its trim ring, plugs and one metre of cable with a polypropylene insulating sheath, for a safe, durable connection to the mains. For recessed mounting in concrete or polyester pools, it is essential to fill the space with a pool-specific material to ensure the sealing of the assembly. Cut-out dimensions Ø277x130 mm. PAR56 LED lamp not included.
Why choose this product?
Protects the connection terminals in aquatic environments.
Sturdy and reliable, trim ring and plugs included.
Polypropylene sheath, safe connection.
Technical specifications
| Product type | Recessed PAR56 niche housing |
|---|---|
| Compatibility | PAR56 LED lamps |
| Material | High-quality ABS |
| Protection | IP68 |
| Included | Trim ring, plugs, 1 m cable (PP sheath) |
| Cut-out dimensions | Ø277x130 mm |
| Mounting | Concrete or polyester pools |
| Lamp | PAR56 not included |
Advantages
- IP68 waterproof: protects connections underwater.
- High-quality ABS: sturdy and reliable.
- Trim ring and plugs included: complete finish.
- 1 m cable: insulating polypropylene sheath.
- Ø277x130 mm cut-out: PAR56 standard.
- Concrete or polyester: recessed mounting.
Recommended applications
| 🚪 | Concrete pools — recessed niche. |
| 🏠 | Polyester pools — waterproof mounting. |
| 🏛 | Lighting retrofit — PAR56 support. |
| 🌿 | Ponds and fountains — aquatic installation. |

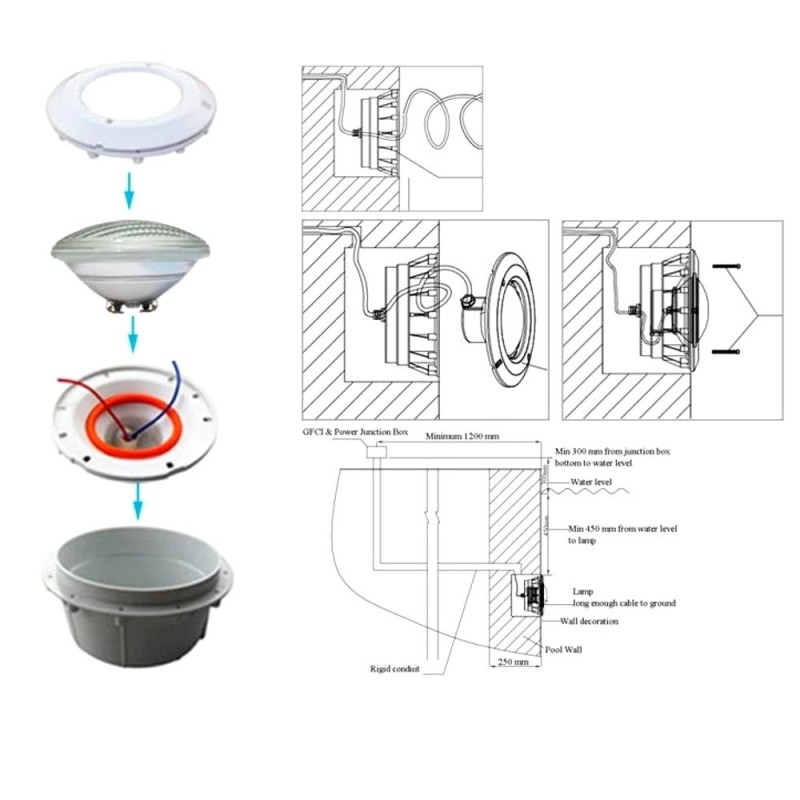

Installation guide
| 1 | Prepare the cut-out Make a Ø277x130 mm cut-out in the wall. |
| 2 | Route the cable Route the cable (1 m, PP sheath) to the panel. |
| 3 | Seal the housing Fill the space with a pool-specific material. |
| 4 | Install the lamp Place the PAR56 lamp (not included) and fix the trim ring. |
Frequently asked questions
No, the housing is designed for a PAR56 LED lamp (not included).
Concrete and polyester pools (recessed mounting).
Ø277x130 mm.
| 💧 IP68 ABS | 📐 Ø277 mm PAR56 | 🔌 1 m cable Trim ring | 🔌 In stock Fast shipping |
Data sheet
- Colour
- White
- IP
- IP68
- Measures (mm)
- Ø293x130mm
- Medida de corte (mm.)
- Ø277x130mm
- Material
- ABS
- Certification
- CE - RoHS
- Warranty
- 3 años
