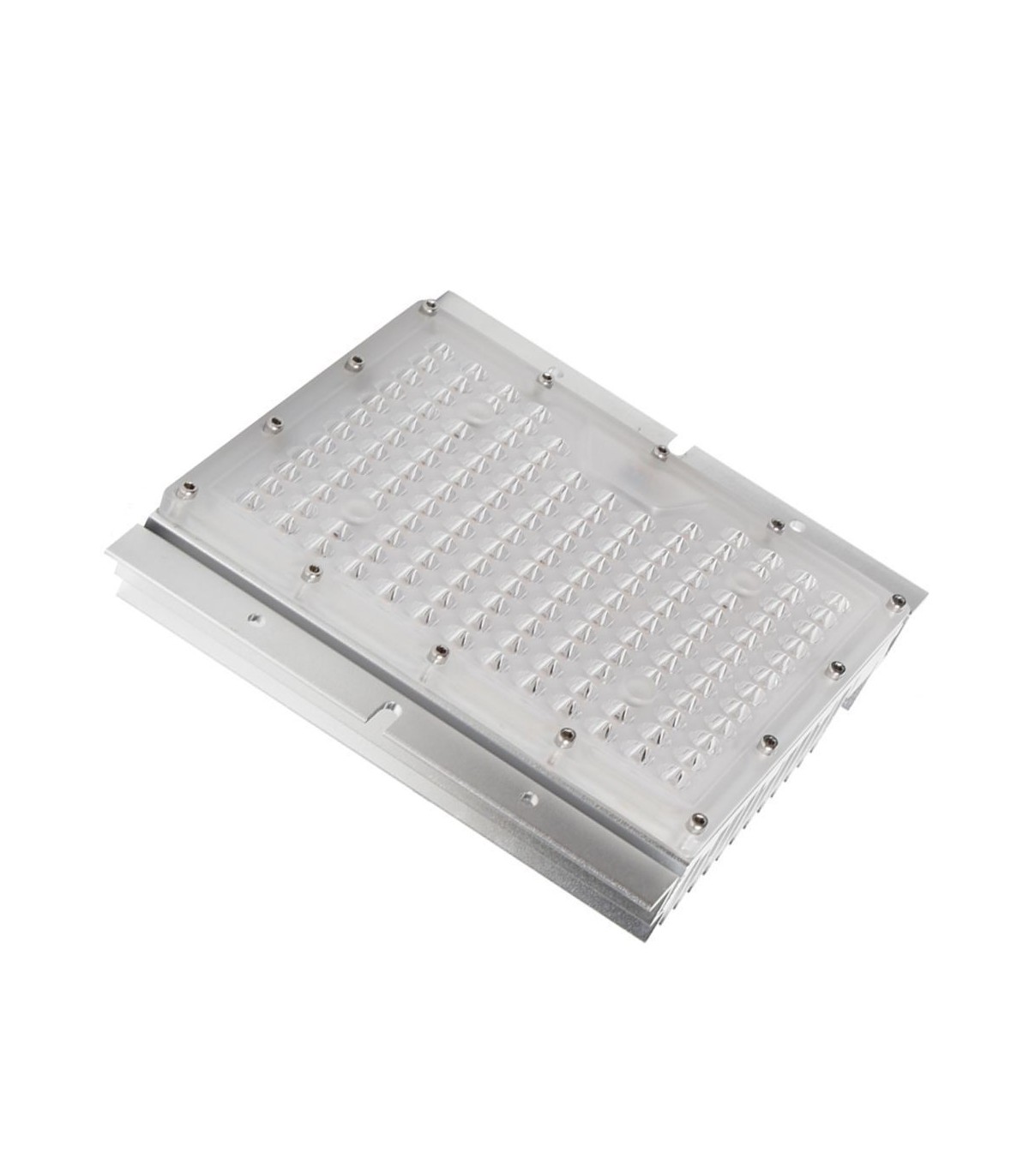

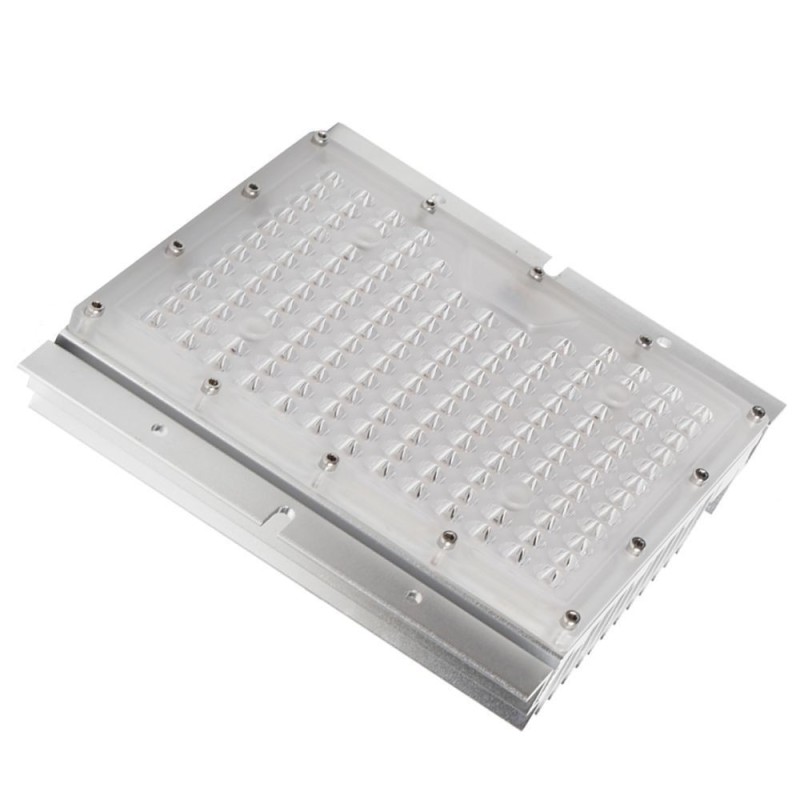

65W LED Module 65W BridgeLUX 11700Lm IP66

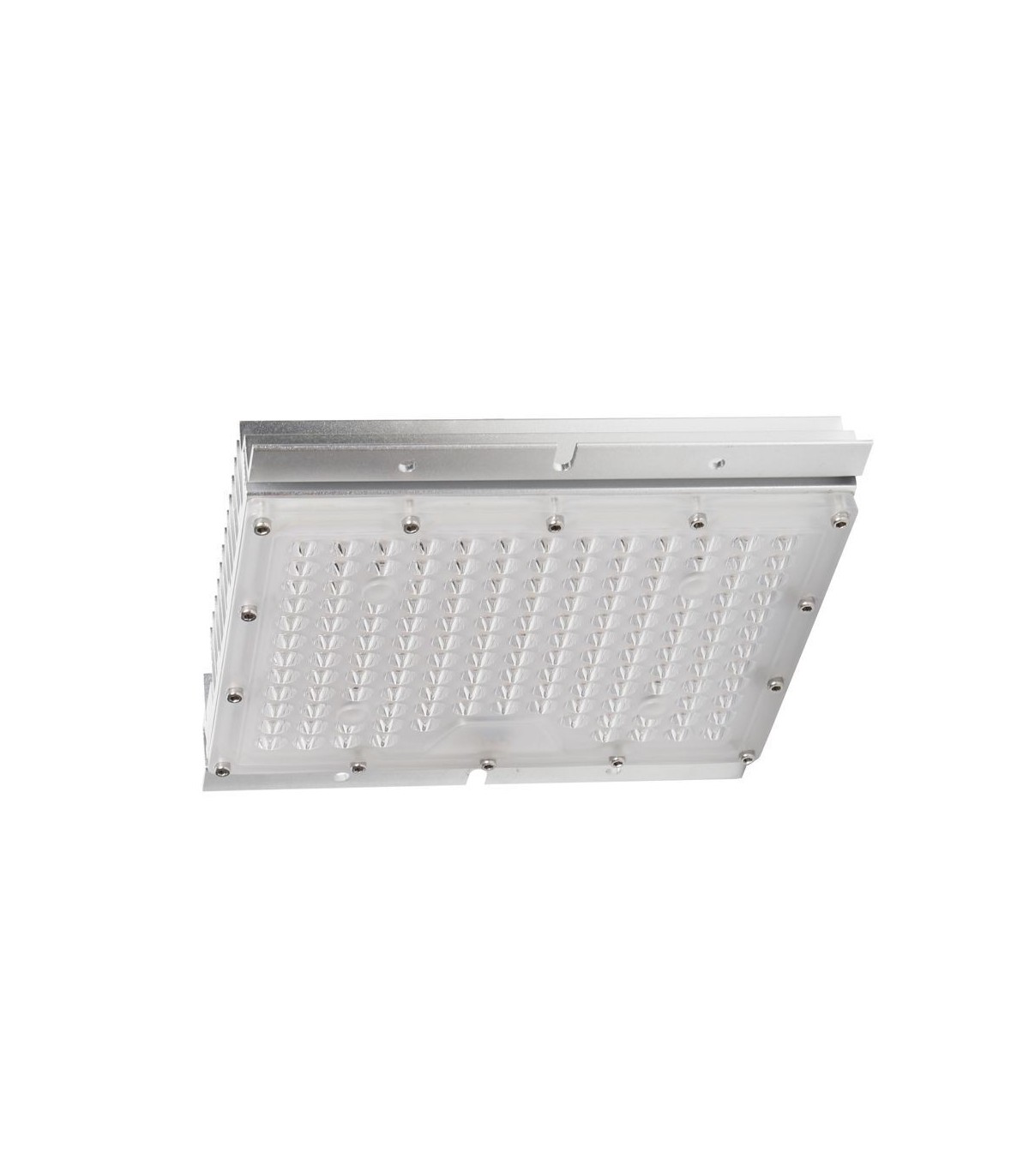

High-brightness 65W LED optical module designed for installation in Villa-type and similar streetlights, delivering a luminous flux of up to 11,700 lumens with excellent optical performance.

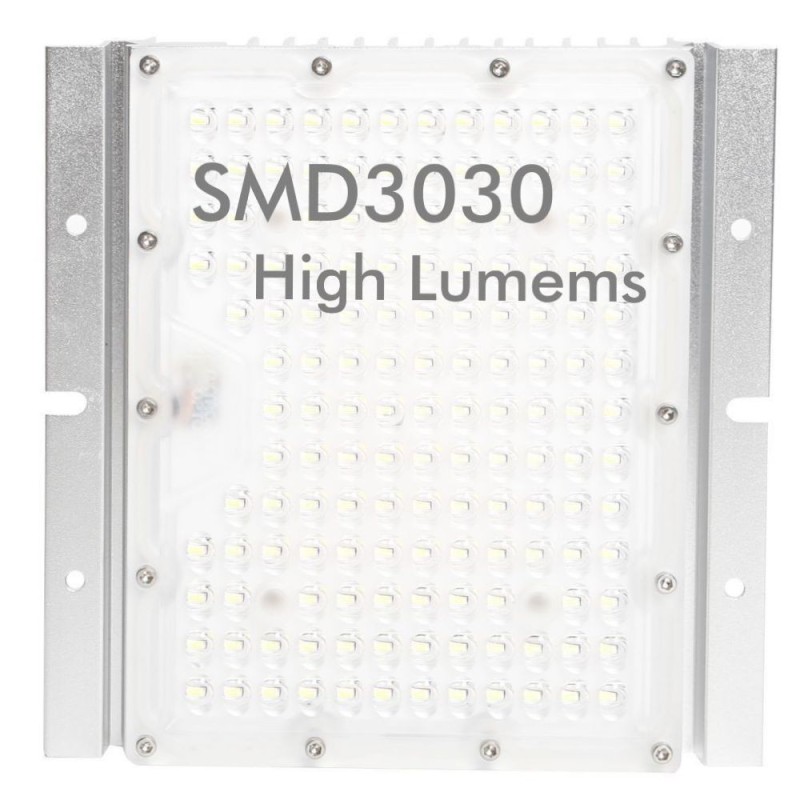

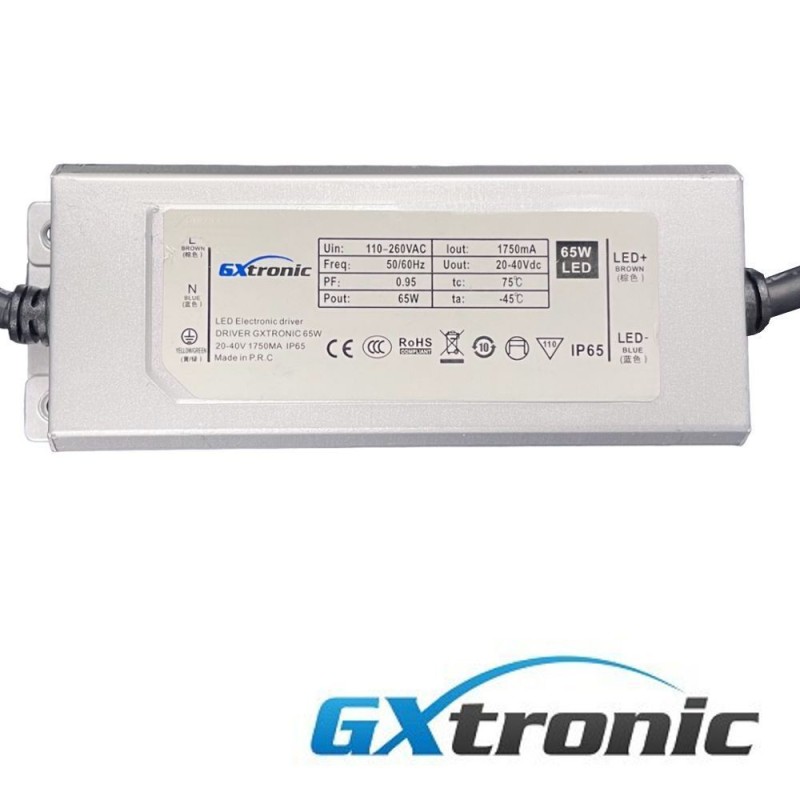

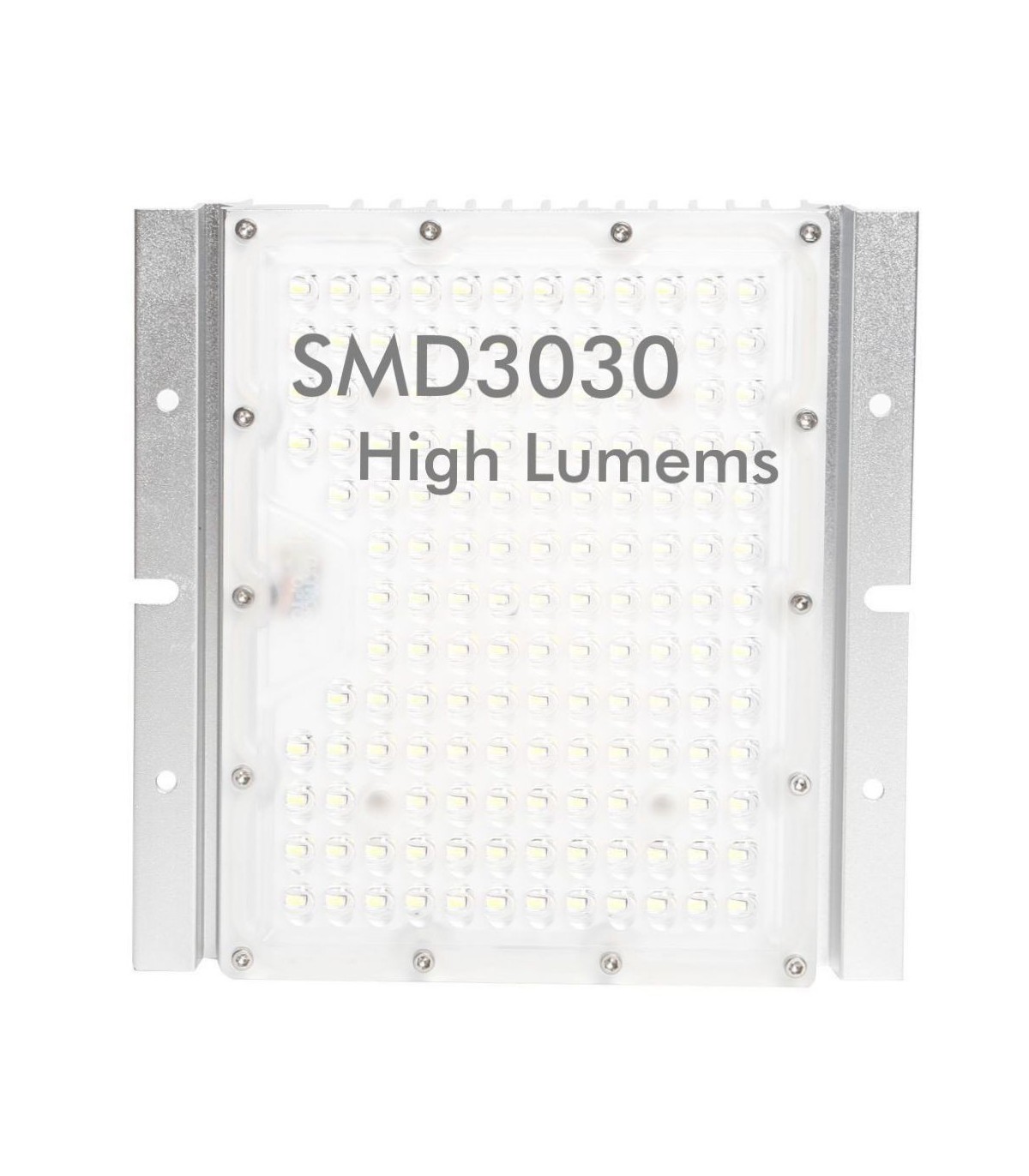

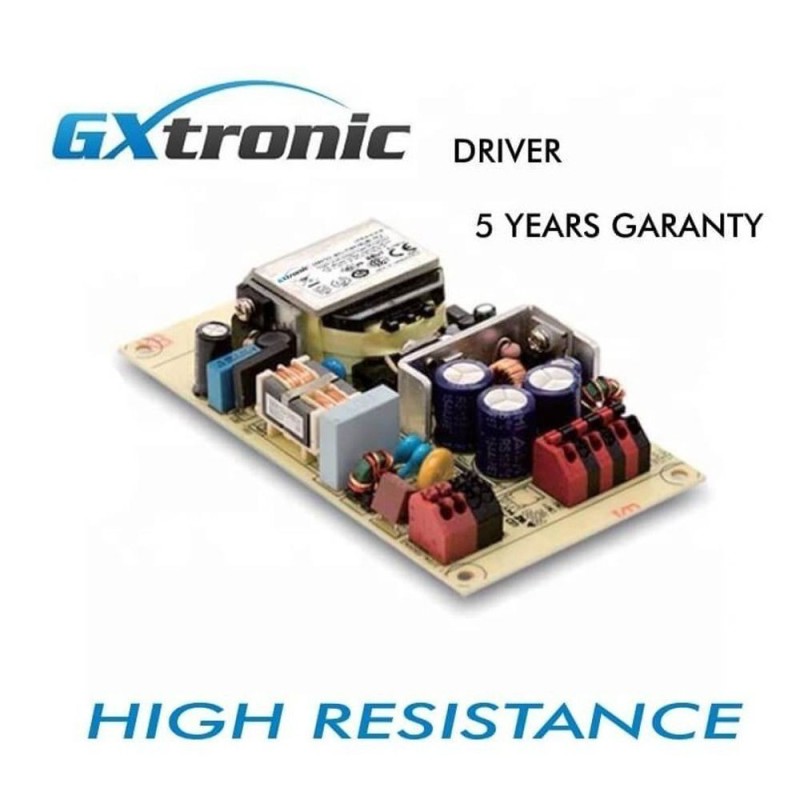

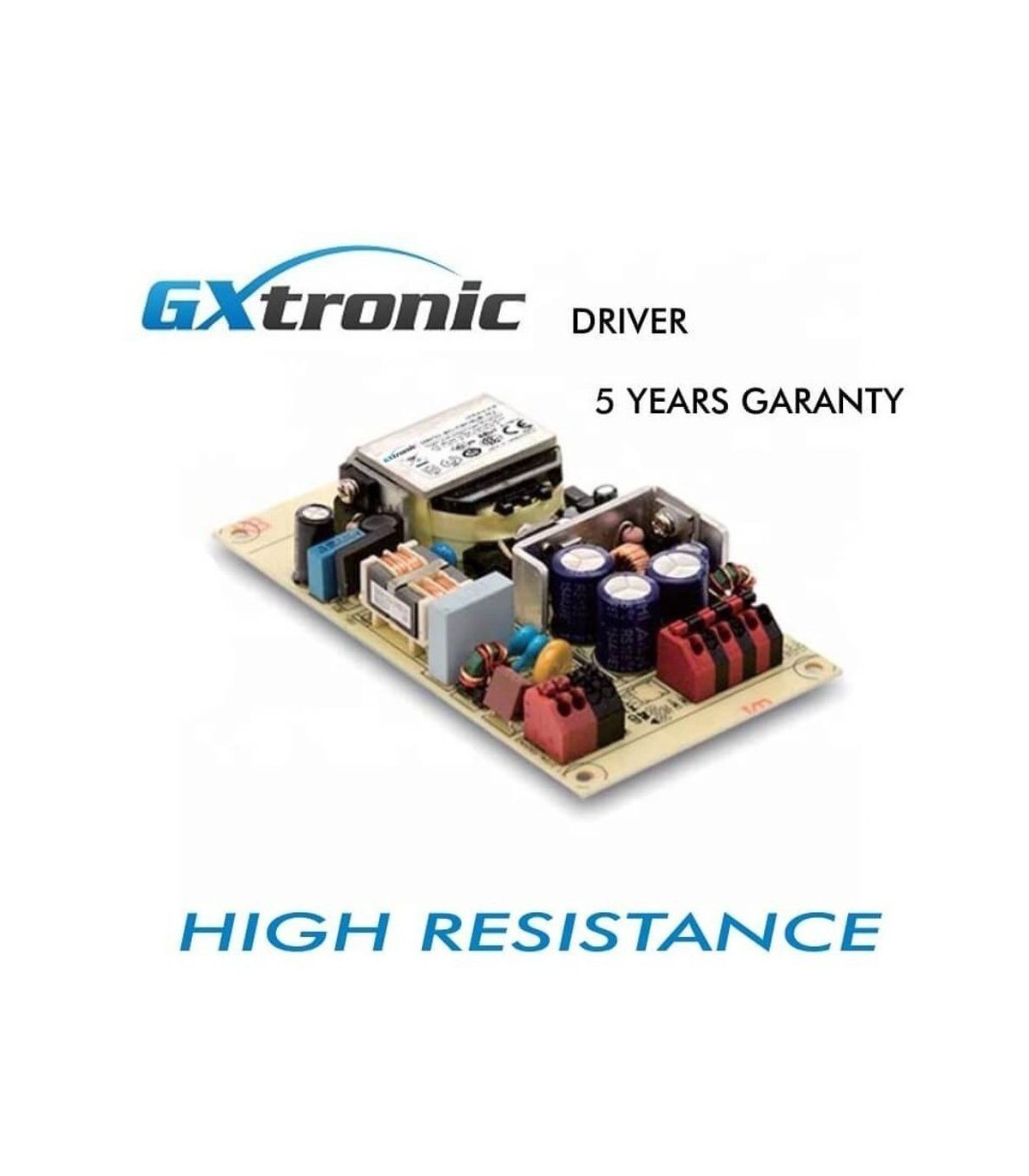

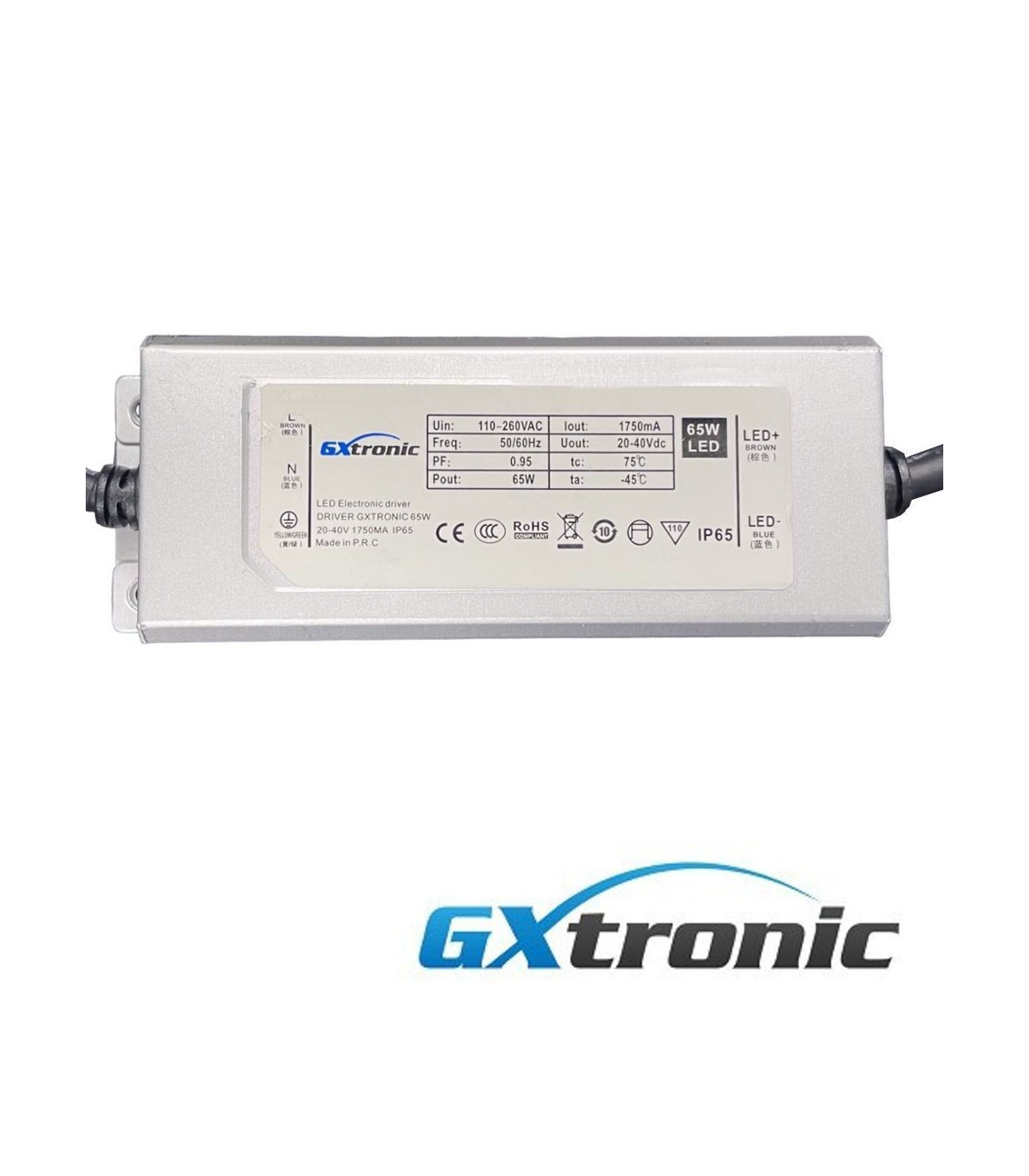

Equipped with 144 BridgeLUX SMD3030 8D LEDs and an external GXTronic driver, this module provides powerful, uniform and energy-efficient lighting, ideal for urban and decorative applications.

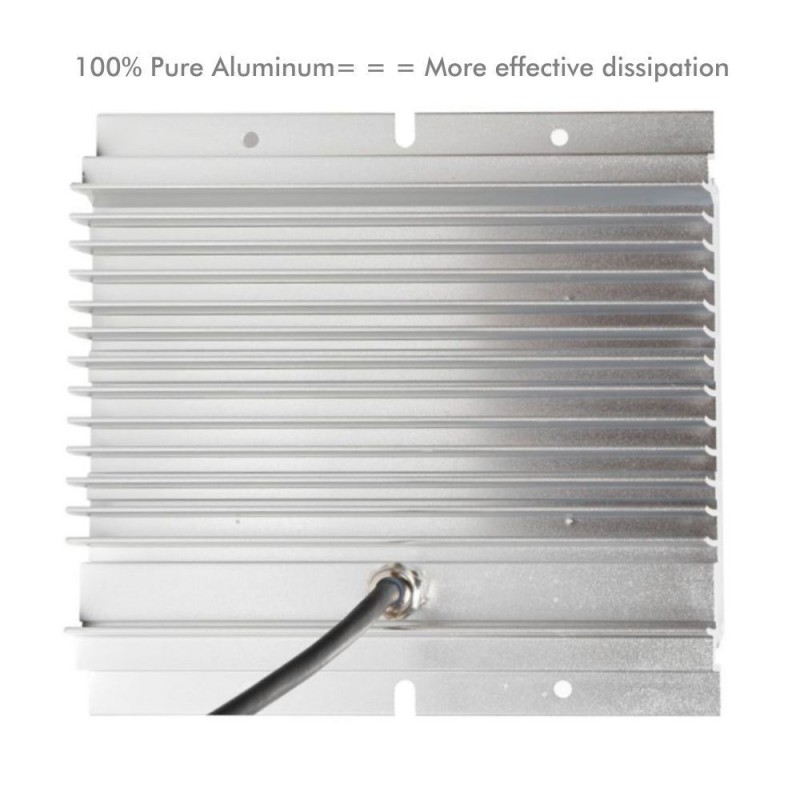

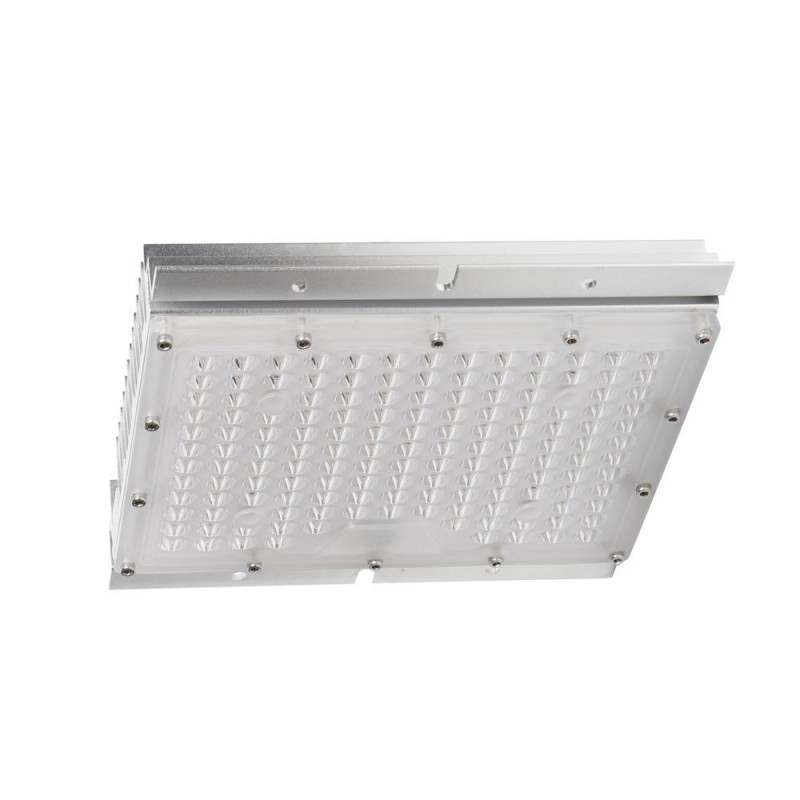

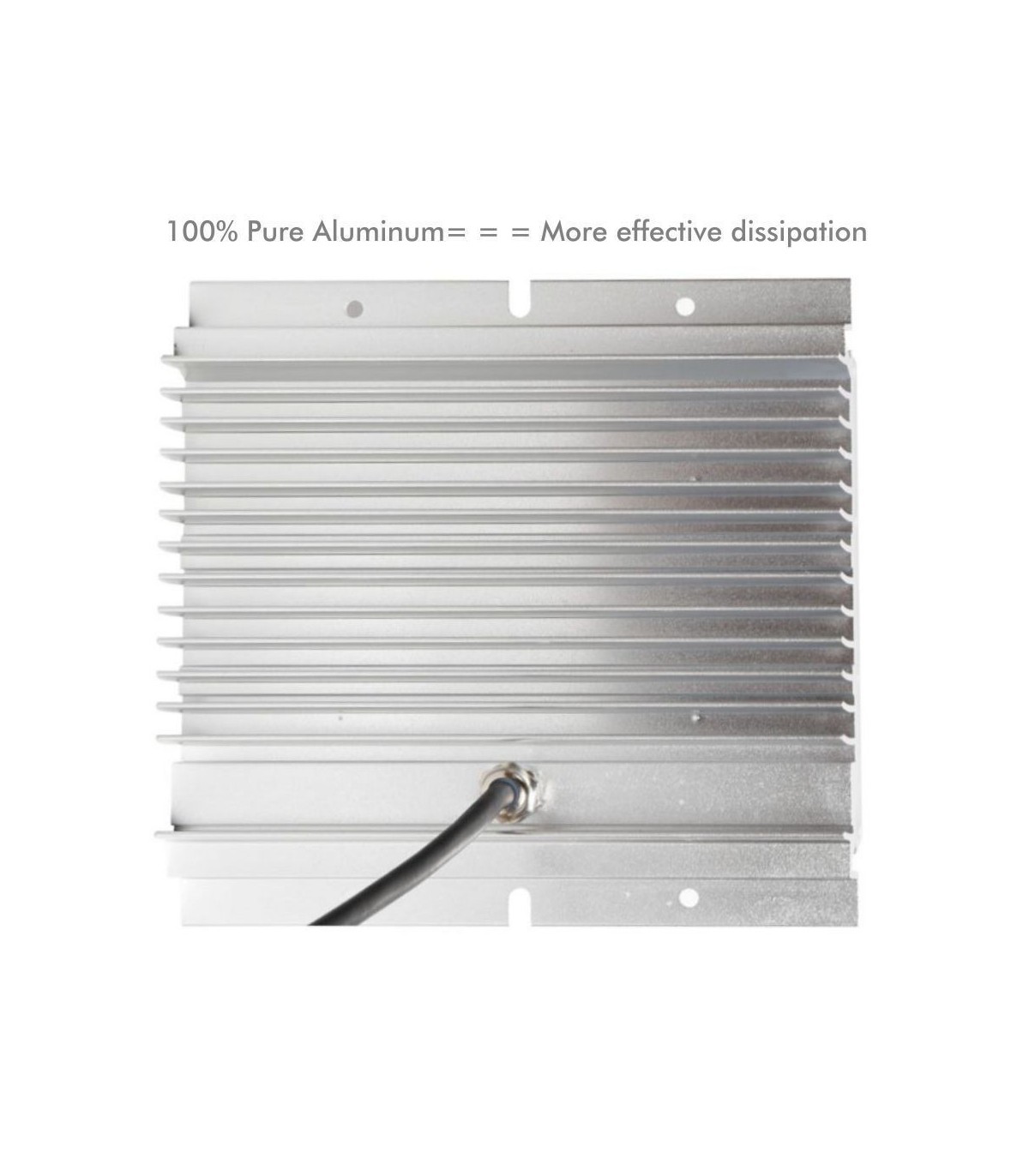

The high thermal dissipation aluminium housing ensures optimal heat management, extending LED lifespan and maintaining stable performance throughout its operation.

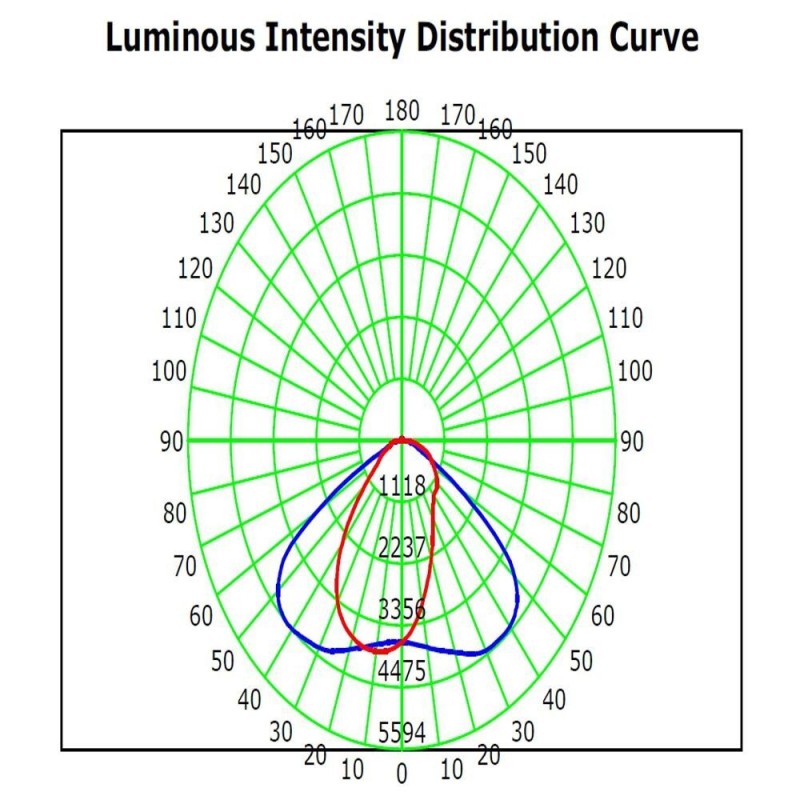

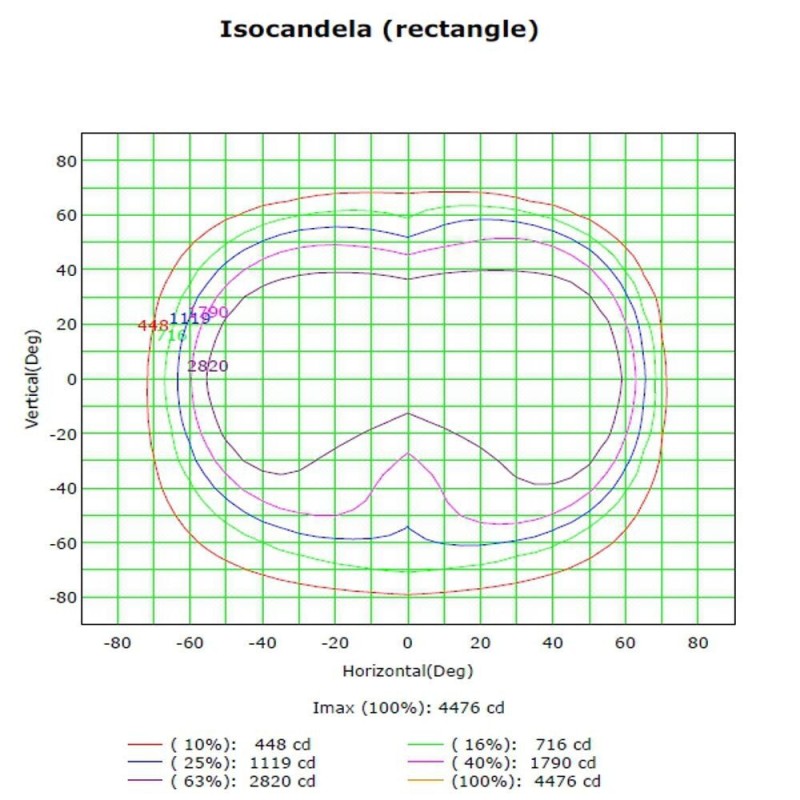

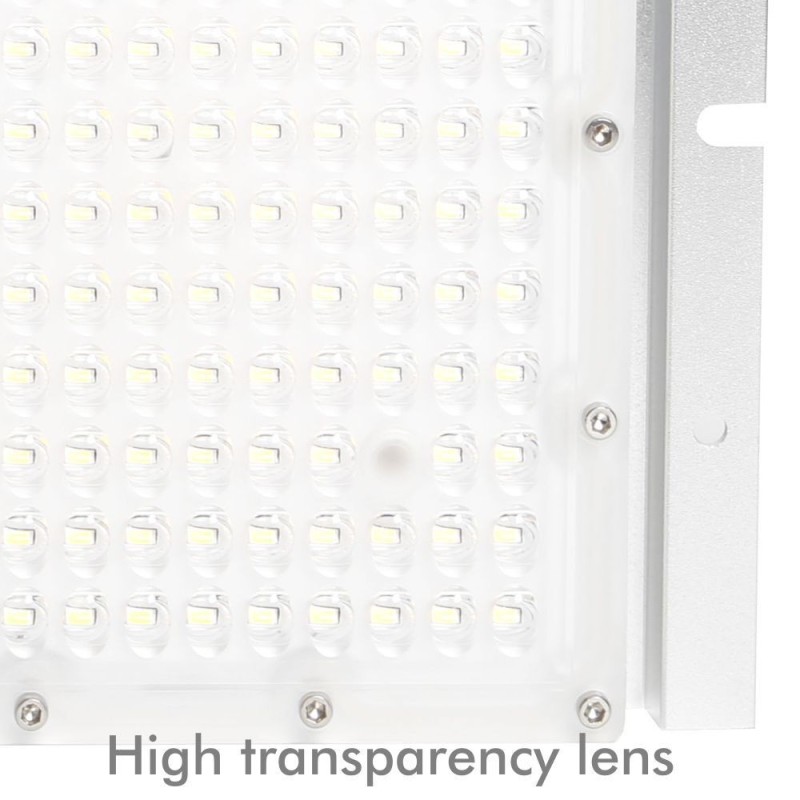

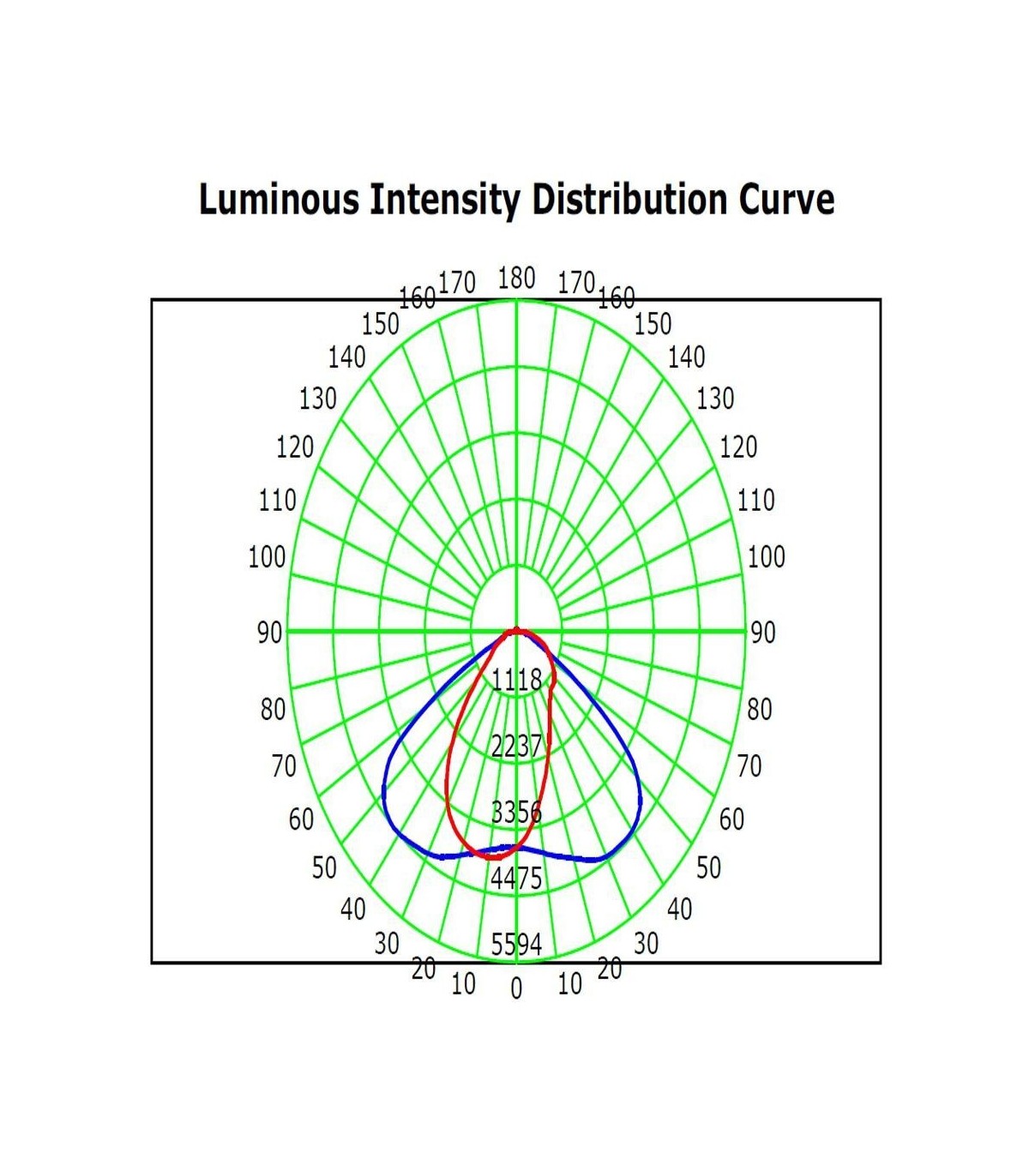

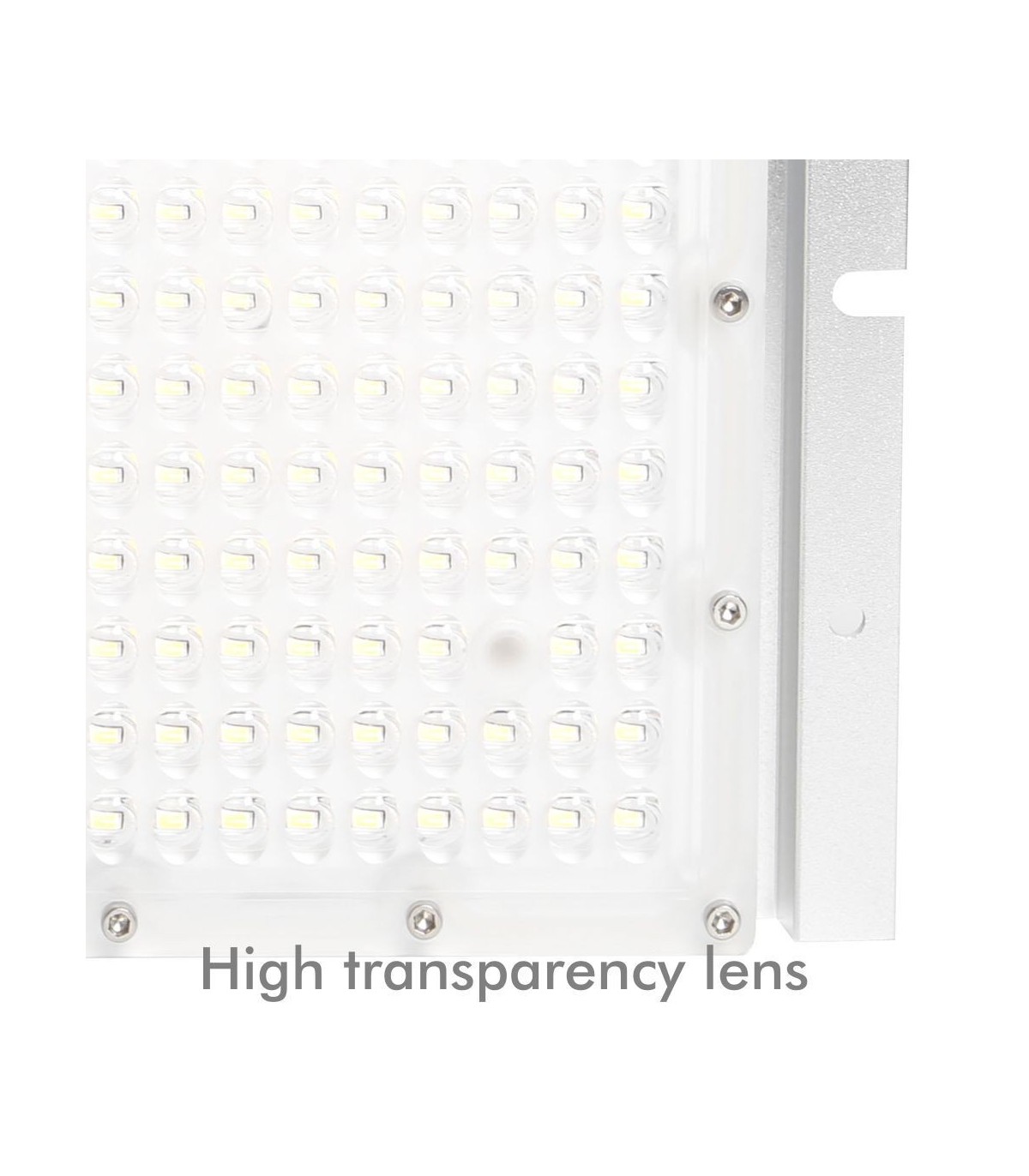

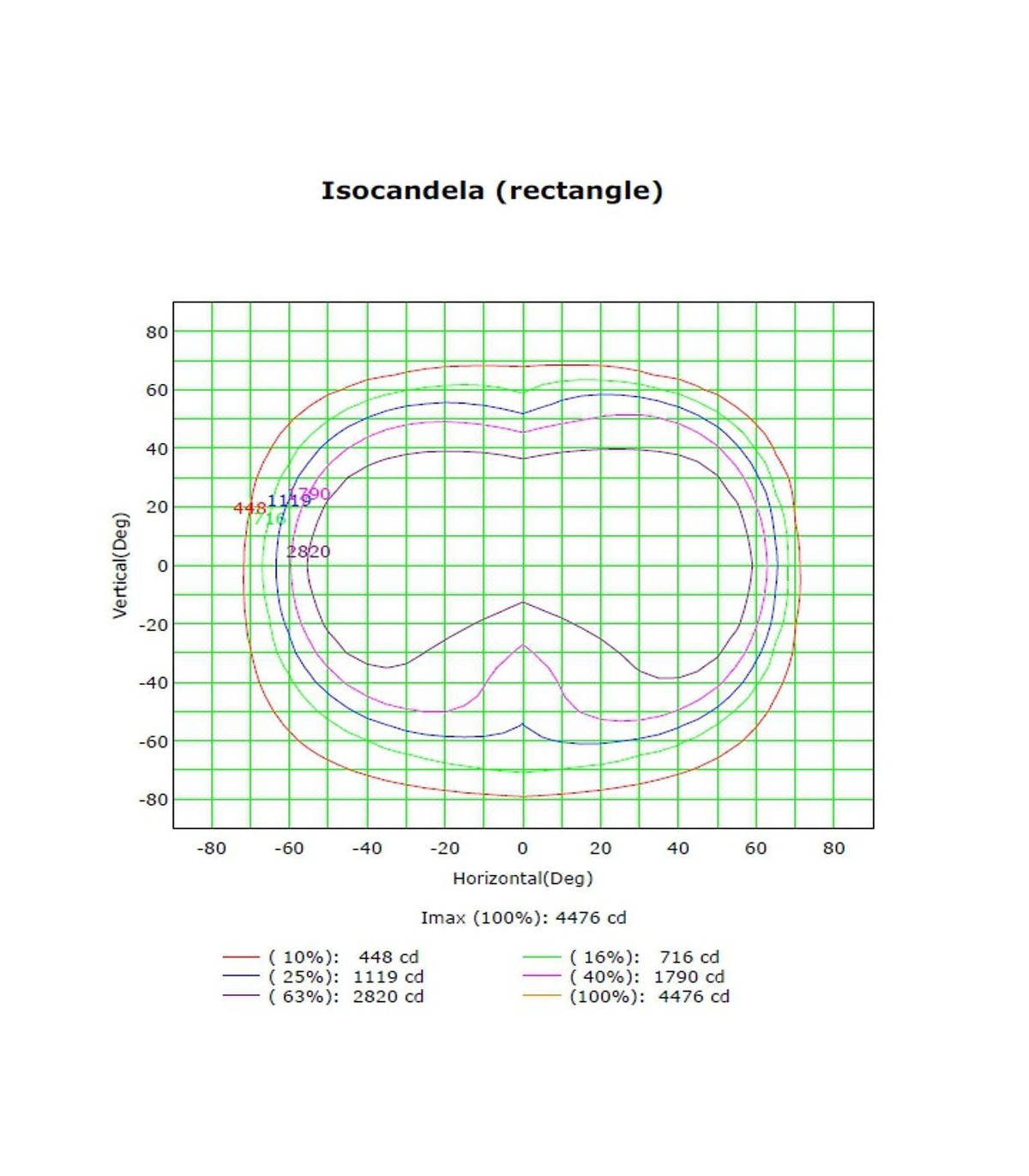

The high-transparency diffuser provides a wide and uniform light distribution, with an open optic of 78º×156º, maximizing luminous efficiency for streets, avenues and public spaces.

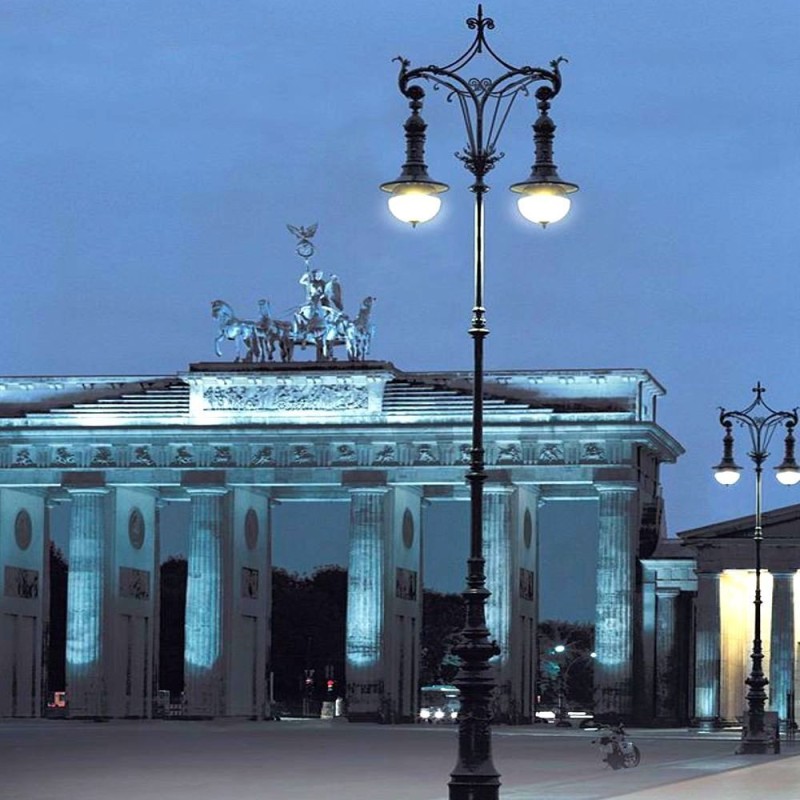

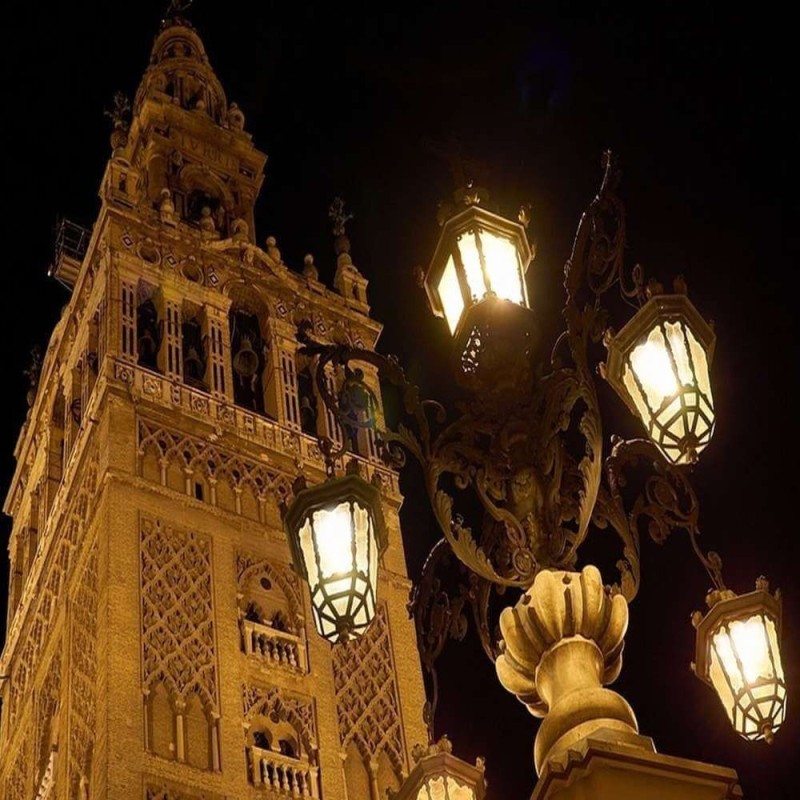

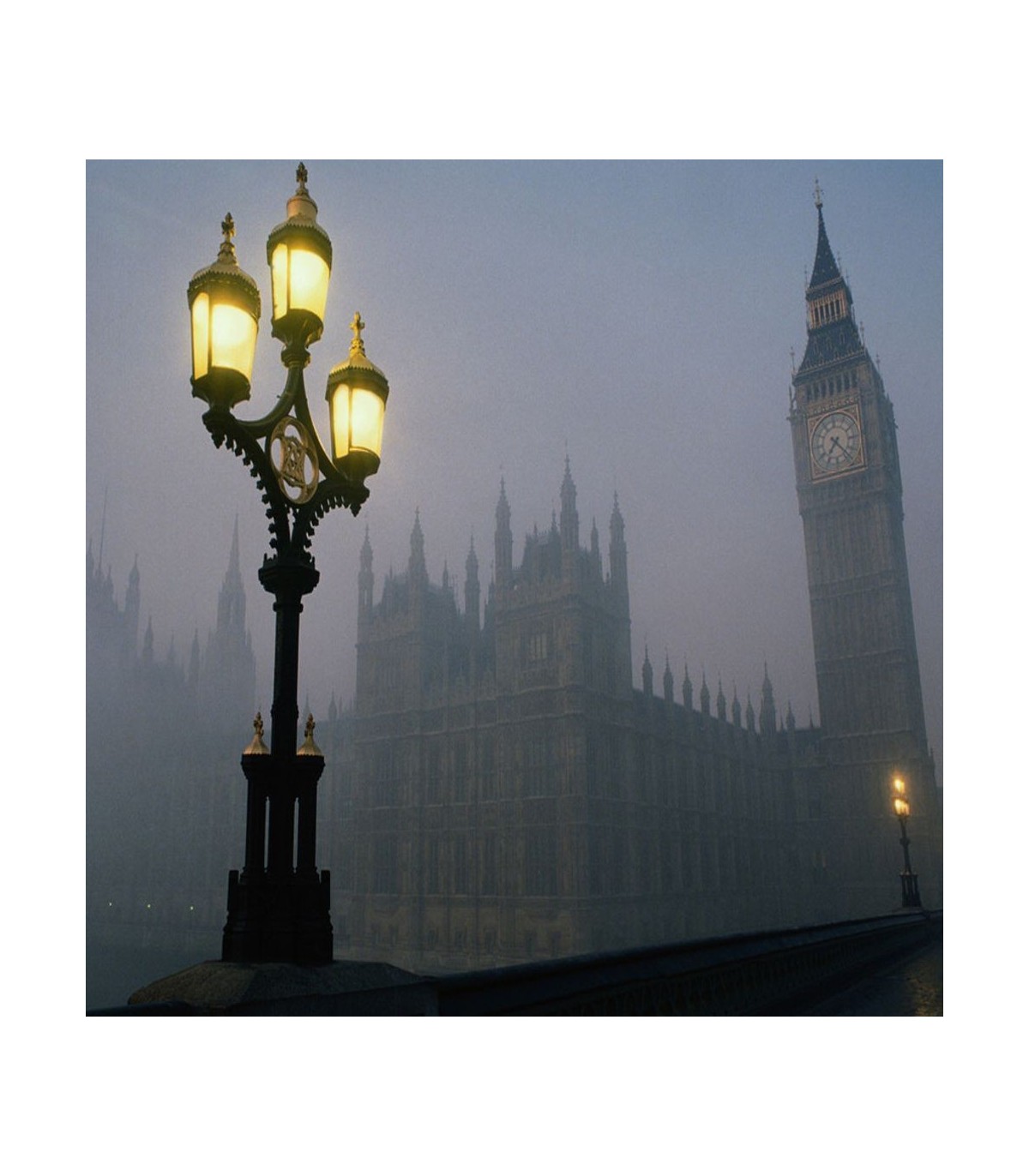

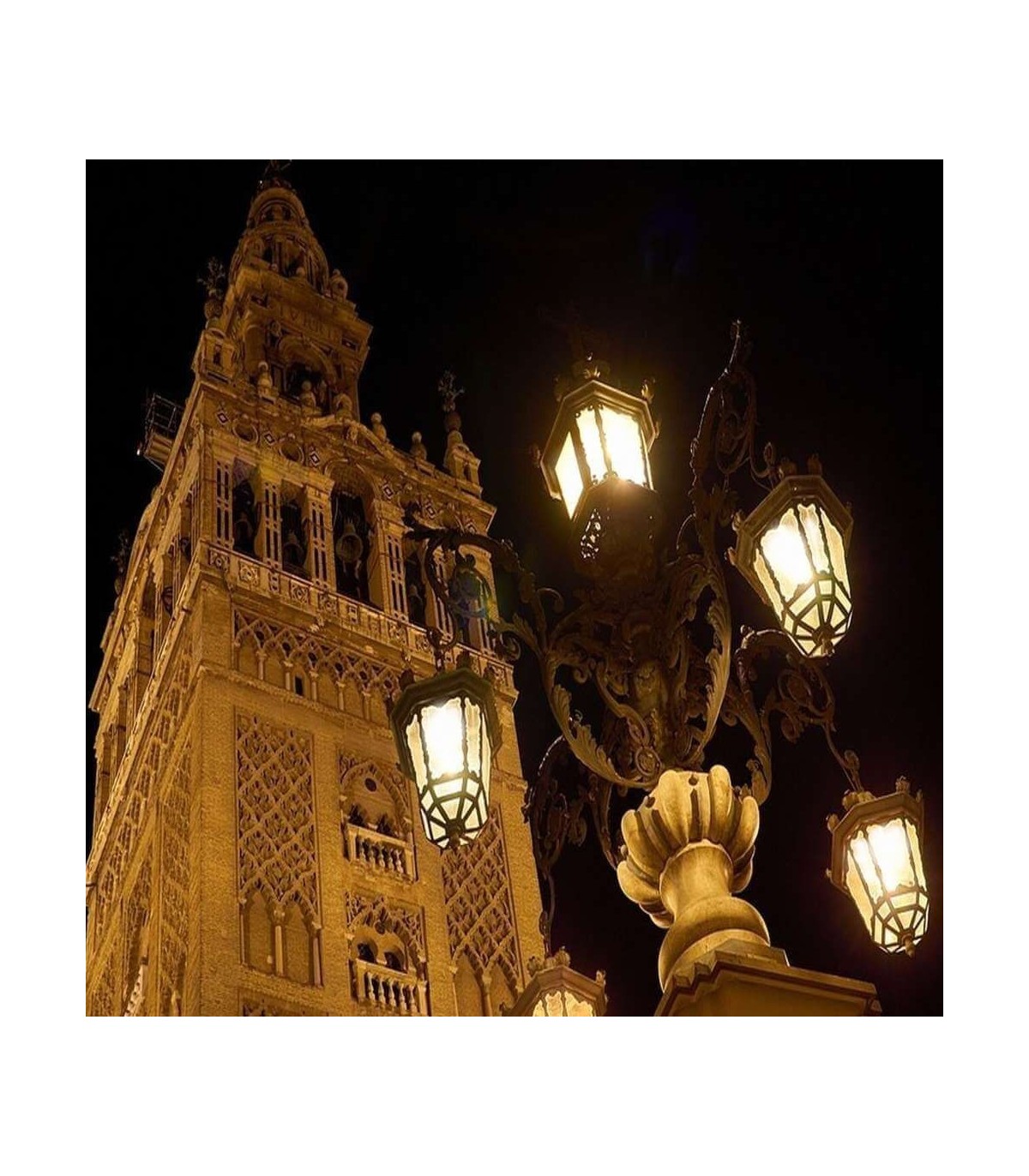

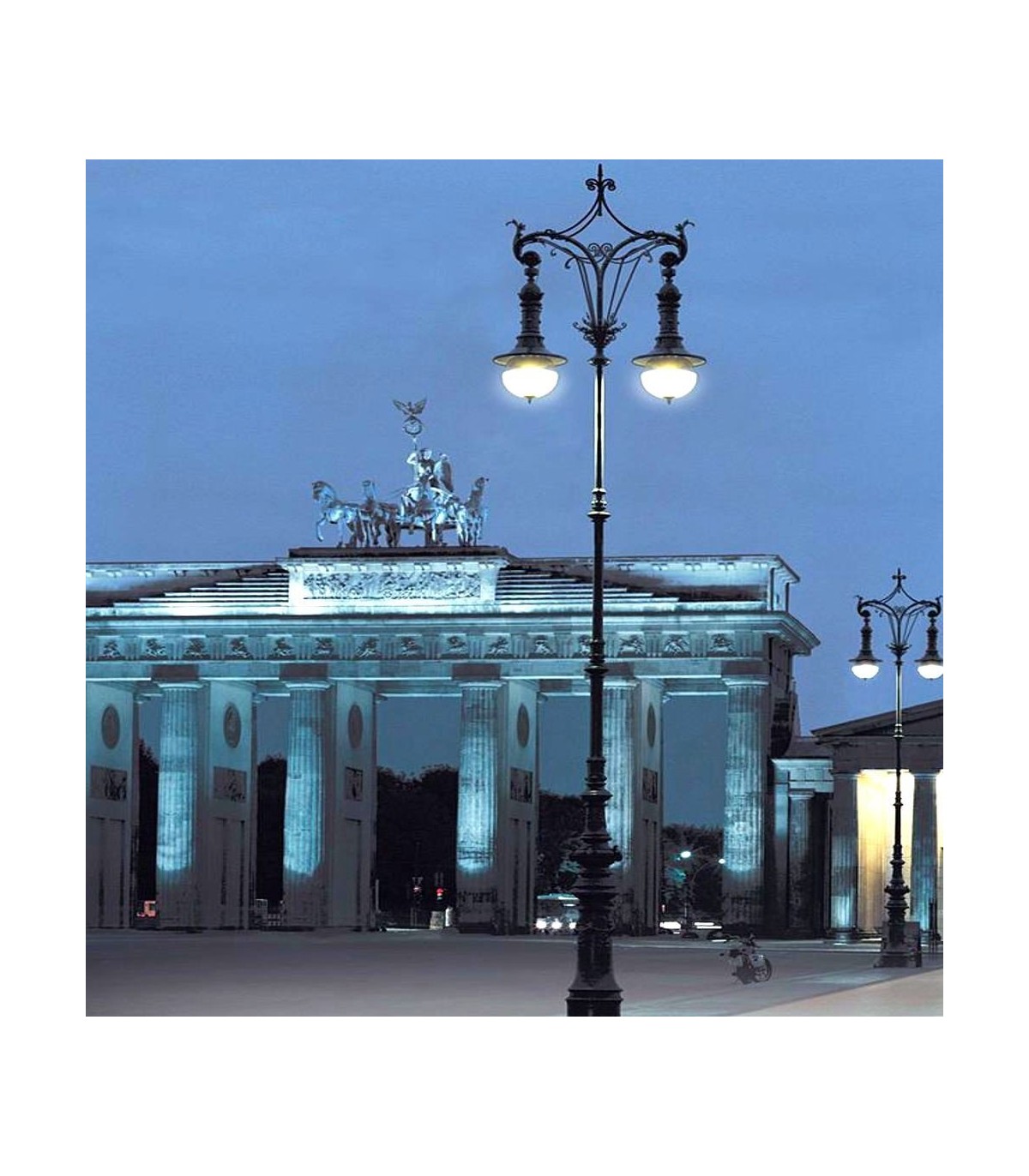

Designed for use in Villa-style and similar LED streetlights, this module is the perfect solution for upgrading existing fixtures to a cleaner, more efficient and longer-lasting lighting system.
LED Optical Module 65W BridgeLUX SMD3030-8D IP66 for Villa Street Lights
The 65W LED optical module with a BridgeLUX SMD3030-8D chip is designed for installation in Villa-type or similar street lights and a luminous flux of 11700 lumens. Efficient optics, excellent heat dissipation, IP66 rating.
⚡ 65W💡 11700 lm☂ IP66🔨 Villa
| 65W Power | 11700 lm Luminous flux | SMD3030-8D LED chip | IP66 Protection |
The 65W BridgeLUX SMD3030-8D LED optical module is a high-brightness optical block designed for installation on Villa-type or similar street lights. It offers powerful, even lighting thanks to its efficient optics and a luminous flux of 11700 lumens, and guarantees optimal, durable performance.
Its excellent heat dissipation extends the LEDs' lifespan, and its IP66 protection rating makes it suitable for outdoor installations. It is the ideal solution for renovating or repairing street lighting efficiently.
Why choose this product?
Powerful, even lighting, 11700 lm.
Extends the LEDs' lifespan, durable performance.
To renovate outdoor street lighting.
Technical specifications
| Product type | BridgeLUX LED optical module |
|---|---|
| Power | 65W |
| LED chip | BridgeLUX SMD3030-8D |
| Luminous flux | 11700 lm |
| Heat dissipation | Excellent |
| Protection | IP66 |
| Compatibility | Villa-type street lights |
Advantages
- 65W, BridgeLUX SMD3030-8D: high brightness.
- Efficient optics: even lighting.
- Heat dissipation: long lifespan.
- IP66: outdoor installations.
- Villa street lights: renovation and repair.
- Driver included: optimal performance.
Recommended applications
| 🚪 | Villa street lights — replacement module. |
| 🏠 | Street lighting — efficient renovation. |
| 🏛 | Streets and car parks — powerful lighting. |
| 🌿 | Urban maintenance — repair. |

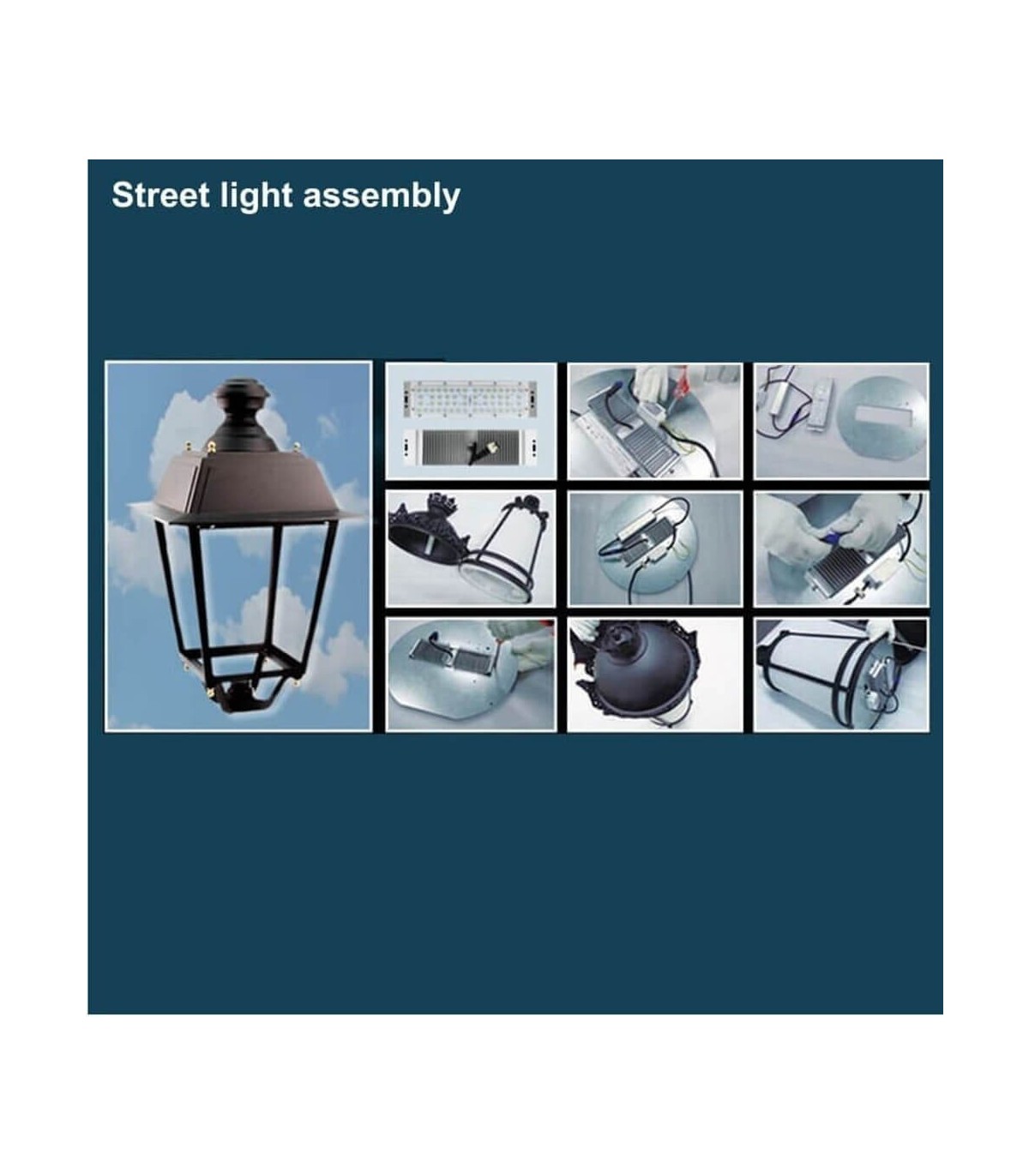

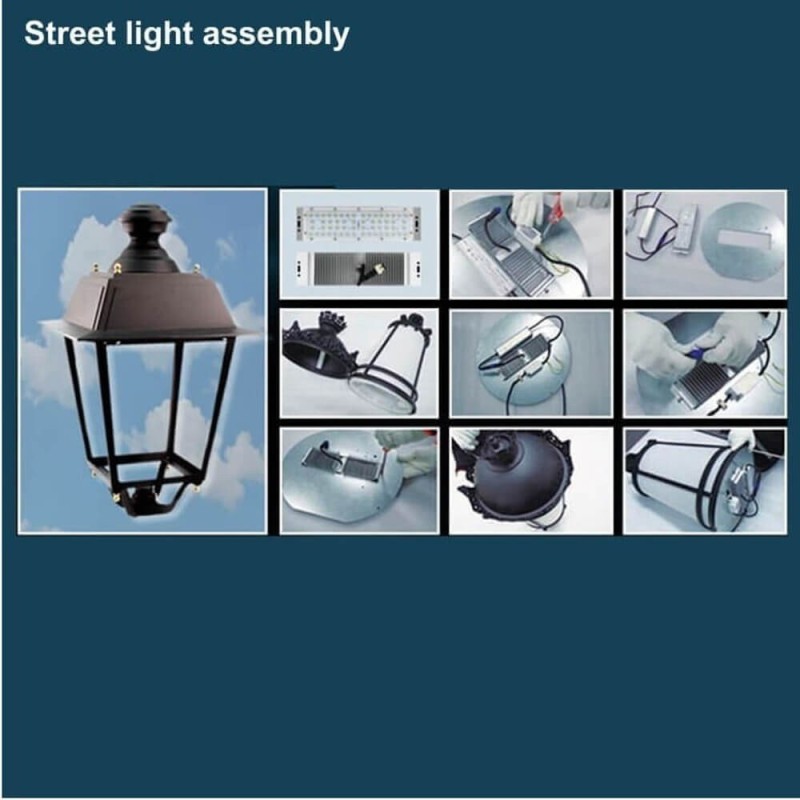

Installation guide
| 1 | Switch off the power Cut the supply before working. |
| 2 | Remove the old module Take out the original module or optical block. |
| 3 | Install the module Install the optical module in the Villa street light. |
| 4 | Wire and check Wire the driver and check the lighting. |
Frequently asked questions
For Villa-type or similar street lights.
A BridgeLUX SMD3030-8D chip.
Yes, its IP66 rating is for outdoors.
| ⚡ 65W SMD3030-8D | ☂ IP66 Villa | 🌡 Dissipation 11700 lm | 🔌 In stock Fast shipping |
Data sheet
- Power (W)
- 65
- Power source (V)
- 175-260V

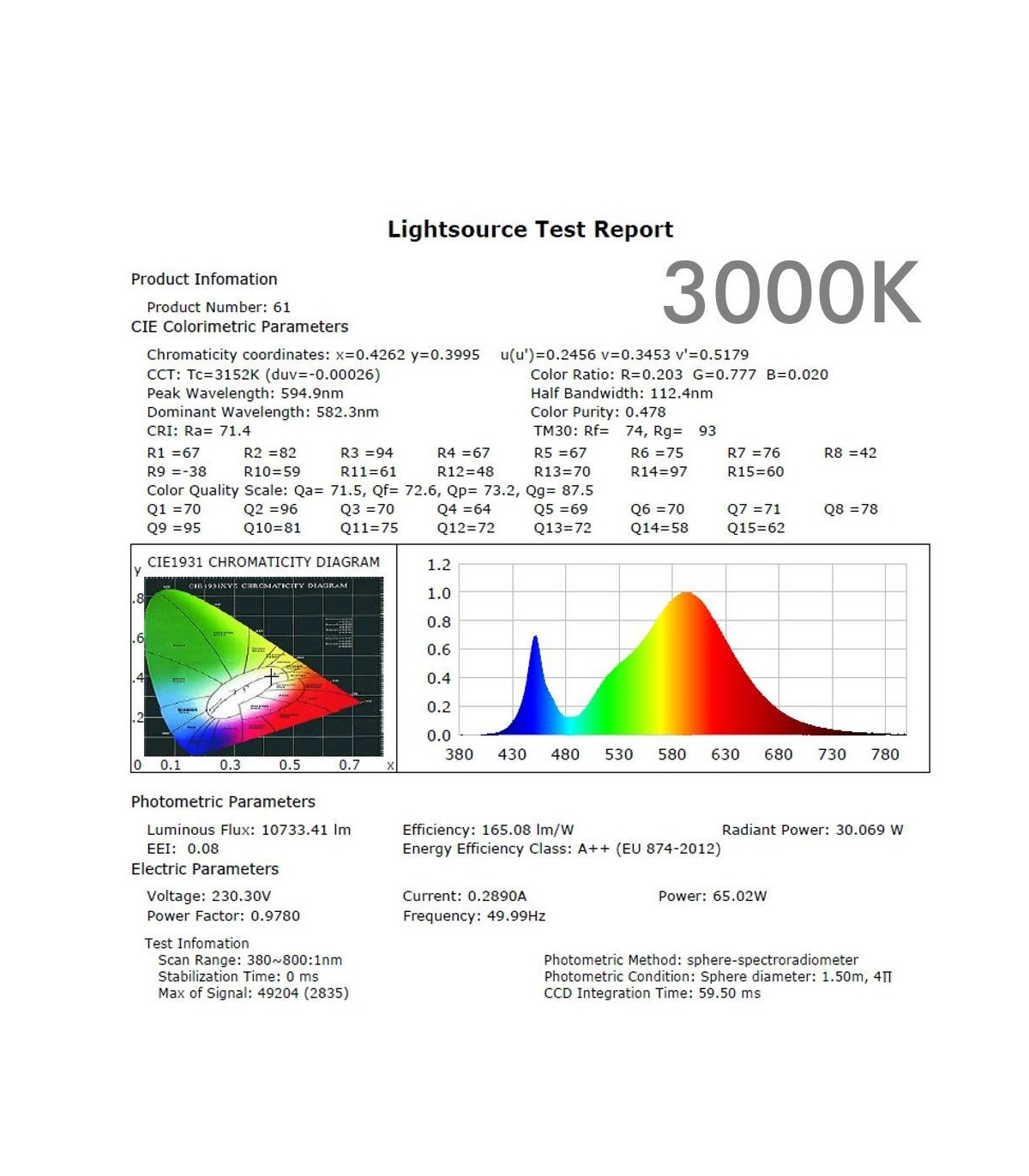

- Color temperature CCT
- 3000K
4000K
- LED
- SMD3030
- LED chip brand
- BRIDGELUX
- Luminous efficacy (Lm/W)
- 210
- Brightness (Lm)
- 11700

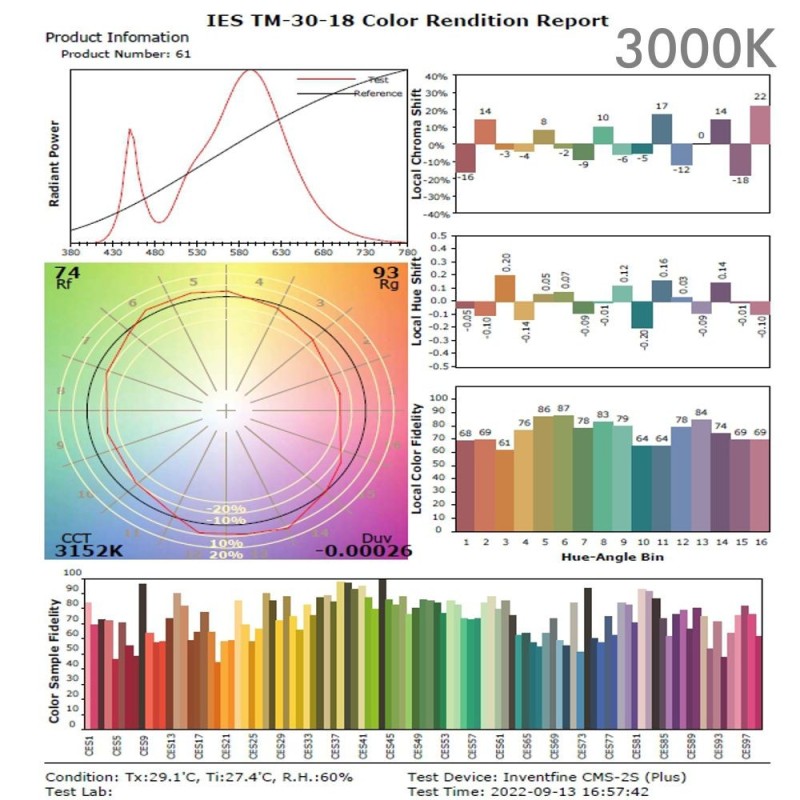

- Color rendering index (Ra):
- ≥75
- Colour
- Plata
- IP
- IP66
- IK
- IK10
- Luminous angle
- 0.98
- Frequency (Hz)
- 50-60Hz
- Power factor φ
- 0.98
- Measures (mm)
- 175x175x35mm
- Material
- Aluminum + PC
- Operating temperature
- -15ºC ~ +70ºC
- Energy efficiency 2021
- A+
- Energy efficiency 2023
- D
- Lifespan
- 50.000h
- Certification
- CE - RoHS
- Warranty
- 5 años
