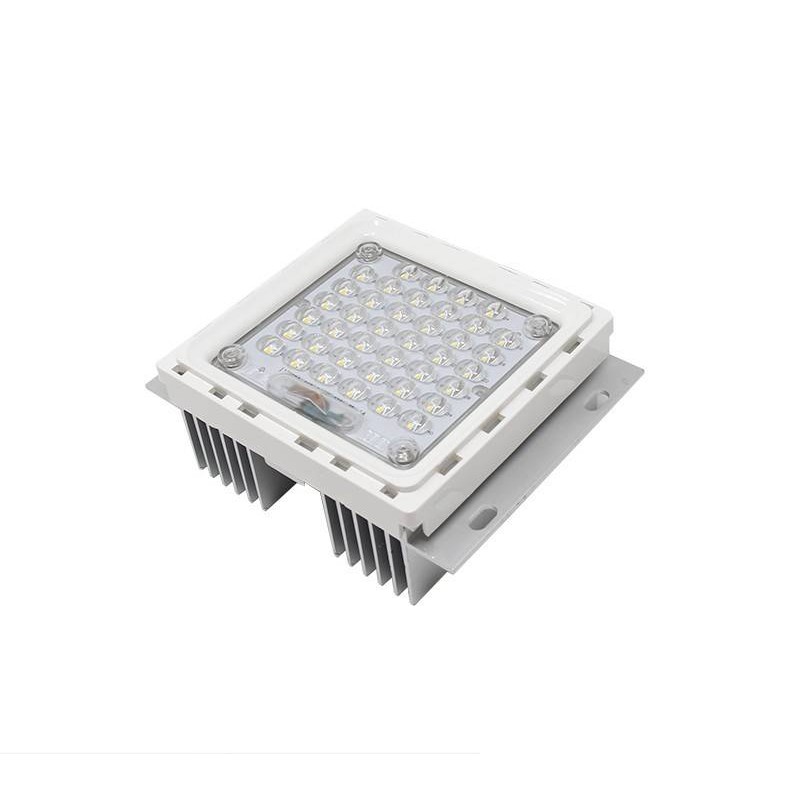

40W Optical LED module for street lamps - Bridgelux chip 5400Lm IP65

42.95 € (tax incl.)
Available
Color temperature CCT (ºK)
  • Warm white 3000K
  • Natural white 4000K
  • Cool white 5000K
In stock:
Reference:
03T1-40W-3K

The 40W LED module is an ideal choice for outdoor lighting in public streetlights. With a power of 40W and a performance of 135Lm/W, it provides a luminous flux of 5400 lumens, ensuring bright and efficient illumination.

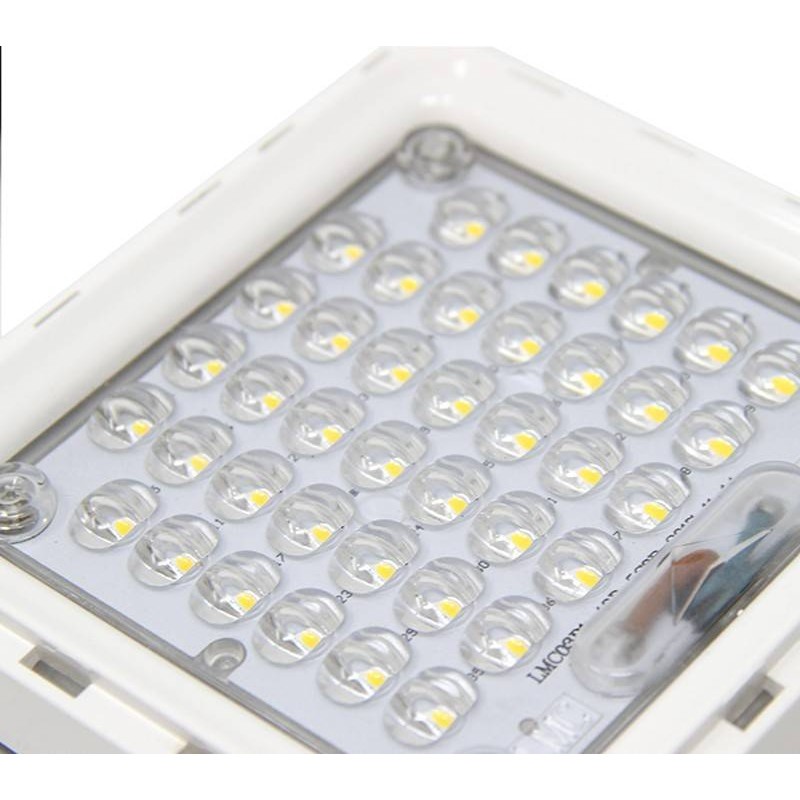

Manufactured with BridgeLUX SMD3030 4-CORE 2240 DS-C30 LED chip, this LED module offers a 5-year warranty, ensuring long-term durability and reliability. Its aluminum and PMMA housing makes it resistant to adverse weather conditions, while its IP65 rating makes it suitable for outdoor installations.

  • Power: 40W
  • Luminous Flux: 5400 lm
  • Warranty: 5 years
  • IP Rating: IP65
  • Dimensions: 125x95x30mm
  • Cutout Dimensions: 100x96mm
  • Color Temperatures: Amber 2200K, Warm White 3000K, Neutral White 4000K, Cool White 5000K

Read moreShow less
Download PDF
You may also like
No items
Description

Optical LED Module for Streetlights 40W BRIDGELUX Chip


The 40W LED module is an ideal choice for outdoor lighting in public street illumination. With a power of 40W and a performance of 135Lm/W, it provides a luminous flux of 5400 lumens, ensuring bright and efficient illumination.

Manufactured with BRIDGELUX SMD3030 4-CORE 2240 DS-C30 LED chip, this LED module offers a 5-year warranty, ensuring long-term durability and reliability. Its aluminum and PMMA housing makes it resistant to adverse weather conditions, while its IP65 rating makes it suitable for outdoor installations.

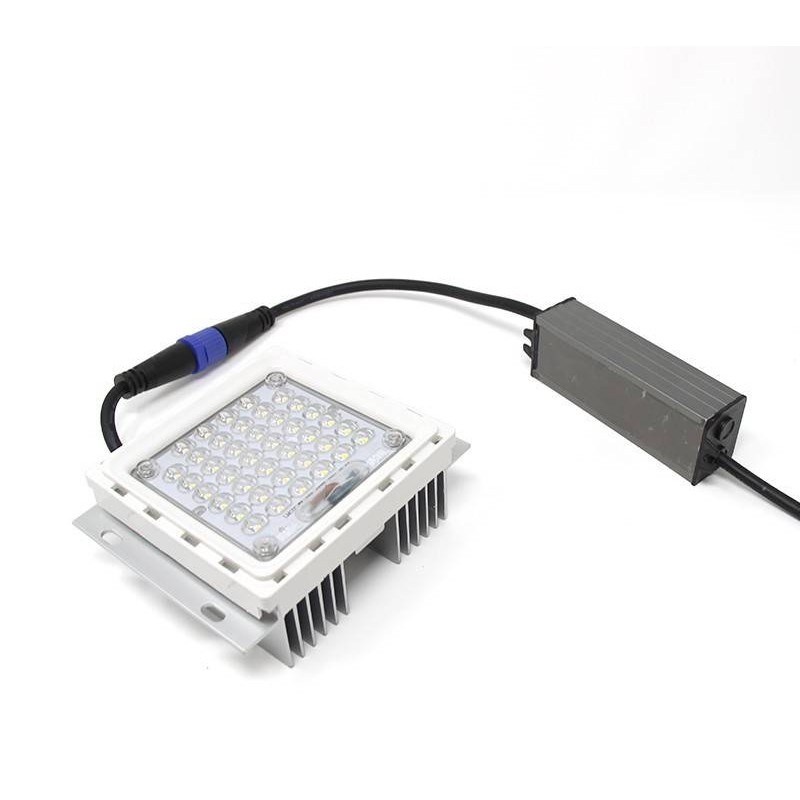

The LED module comes with an external driver for connection to 220-240V, facilitating its installation. Its compact dimensions of 125x95x30mm allow for easy integration into streetlights and road luminaires.

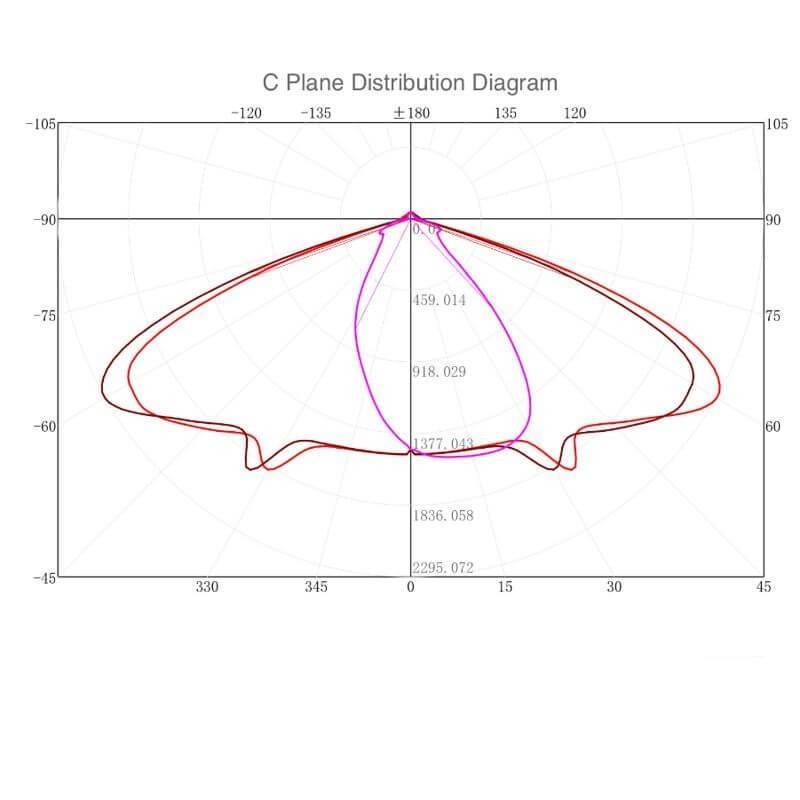

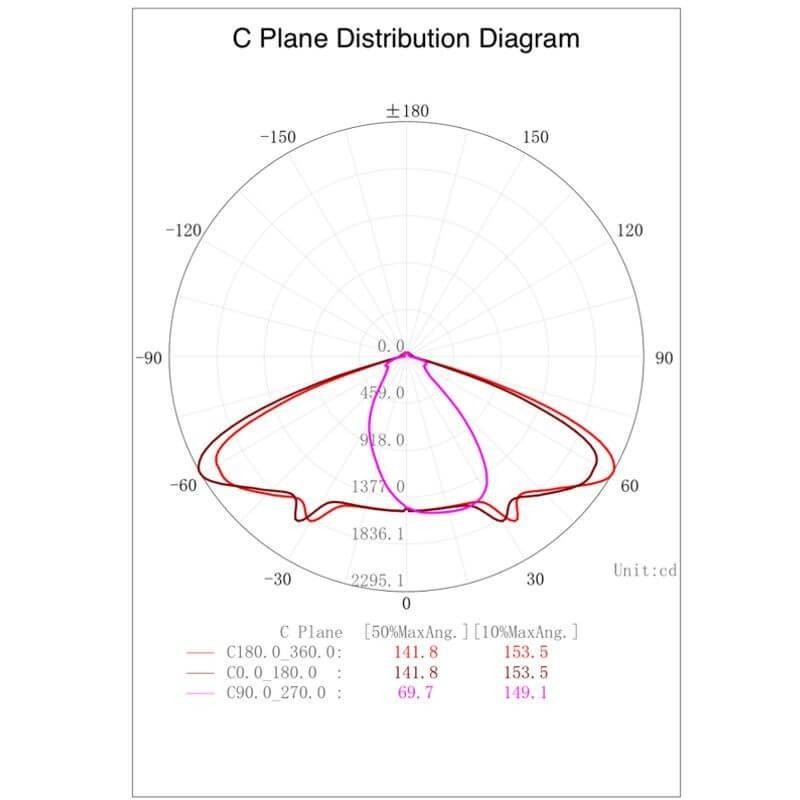

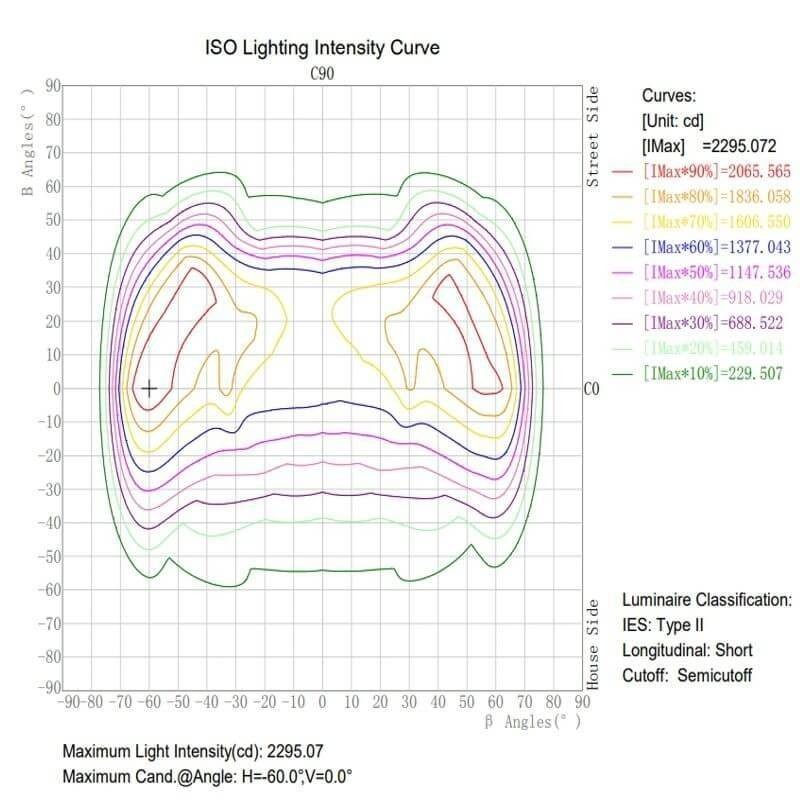

Available in 4 color temperatures (amber 2200K, warm white 3000K, neutral white 4000K, and cool white 5000K), the LED module emits light with asymmetrical optics at an angle of 80ºx150º, ensuring a uniform and efficient light distribution.

Technical Specifications:


  • Power: 40W
  • Performance: 135Lm/W
  • Luminous Flux: 5400 lm
  • Warranty: 5 years
  • Material: Aluminum and PMMA housing
  • Driver: External, for connection to 220-240V
  • IP Rating: IP65

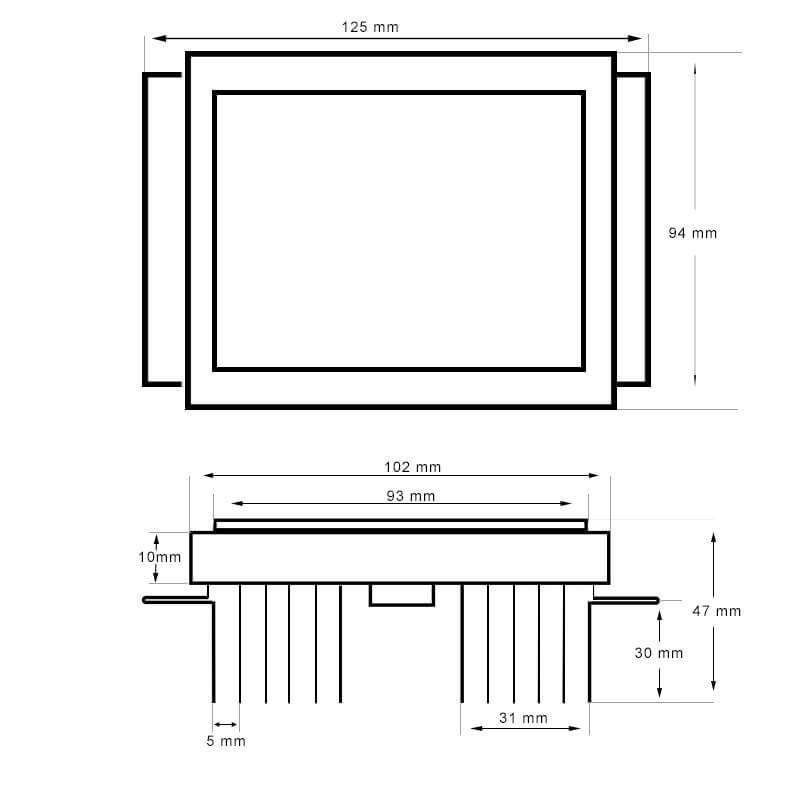

  • Dimensions: 125x95x30mm
  • Cutout Dimensions: 100x96mm
  • Power Factor: > 0.96
  • Color Temperatures: Amber 2200K, Warm White 3000K, Neutral White 4000K, Cool White 5000K

Mounting Recommendations:


It is recommended to install the LED module in streetlights and road luminaires following the manufacturer's instructions for safe and efficient installation.

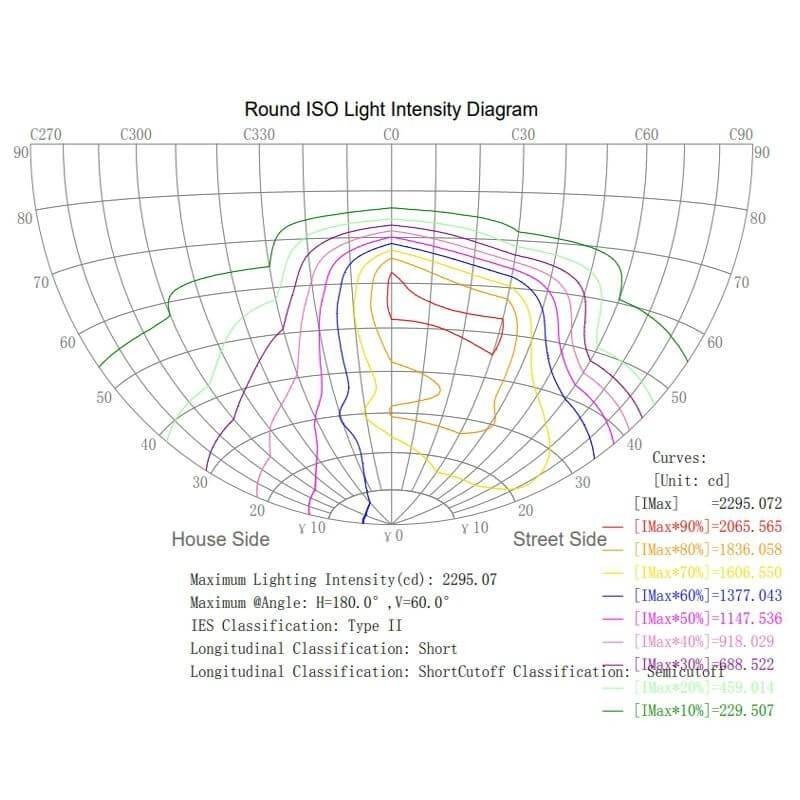

Asymmetrical Optics:


Asymmetrical optics refers to light distribution designed to illuminate specific areas more efficiently, reducing light waste and maximizing coverage in the desired direction.

Advantages of LED Lighting in Public Street Illumination:


LED lighting in public street illumination offers numerous advantages over conventional light sources, including higher energy efficiency, longer lifespan, lower maintenance, reduction of light pollution, and the ability to control light intensity.

Product Uses and Recommendations:

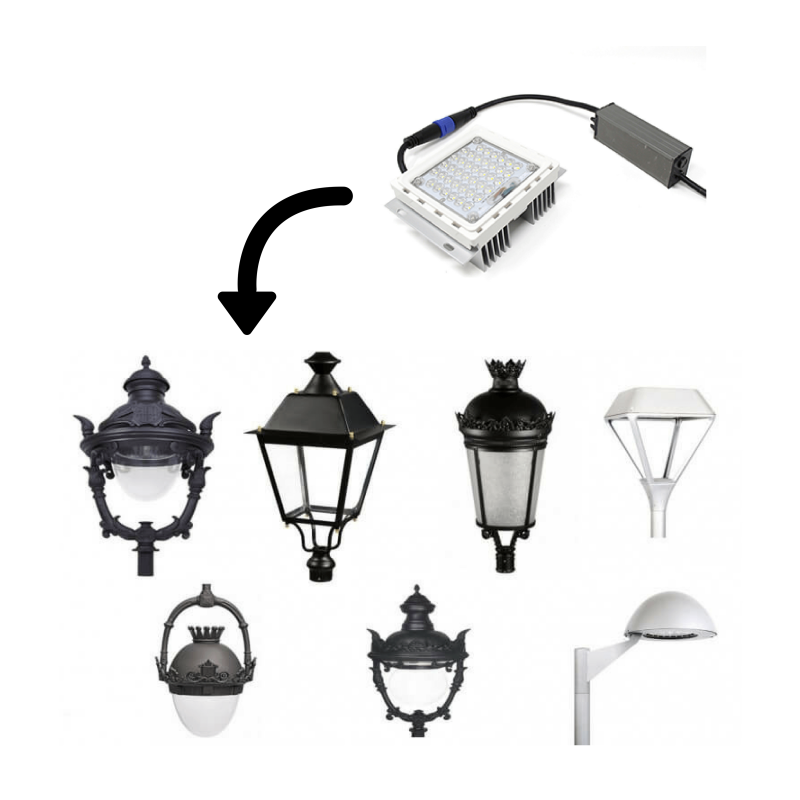

This LED module is ideal for use in streetlights and road luminaires for public street lighting, as well as for replacing metal halide lamps and converting them to LED, providing energy savings of over 80%.

Read moreShow less
Product Details
03T1-40W-3K

Data sheet

Power (W)
40
Power source (V)
220-240V
Color temperature CCT
3000K
4000K
5000K
LED
SMD3030
LED chip brand
BRIDGELUX
Brightness (Lm)
5400
CRI
+70
IP
IP67
IK
IK10
Luminous angle
70ºx150º
Frequency (Hz)
50-60Hz
Power factor
0.96
Measures (mm)
125x95x30mm
Material
Aluminum + PMMA
Driver
Yes
Operating temperature
-15ºC ~ +70ºC
Energy efficiency 2021
A+
Lifespan
40.000h
Certification
CE - RoHS
Warrantie
5 años

Specific References

ean13
8435637220897
