MiBoxer TRI-C1WR TRIAC Dimmer Module (WiFi + 2.4G + Push)

MiBoxer TRI-C1WR TRIAC Dimmer Module (WiFi + 2.4G + Push)

The MiBoxer TRI-C1WR is an intelligent 230V AC dimmer that combines WiFi control, 2.4G radiofrequency and physical Push button in a single device. Designed to deliver smooth, flicker-free light dimming, it is compatible with a wide range of fixtures including dimmable LED, halogen and incandescent lamps.

Thanks to its ELV trailing-edge phase cut technology, it offers continuous dimming from 0 to 100%, ensuring smooth and comfortable light transitions. Its compact design allows for installation in standard flush-mounted boxes, making it a versatile solution for both residential and commercial environments.

Smart Control

• Tuya Smart App: Control lighting from your smartphone without the need for a separate gateway.
• Voice assistant compatibility: Amazon Alexa, Google Assistant, Xiaomi, Tmall Genie, Yandex Alice, and others.
• 2.4G remote control: Range up to 30 meters with compatible remotes (sold separately).
• Push Function: On/off and brightness adjustment using an embedded push-button mechanism. The dimmer module is installed behind the switch.

Technical Specifications

• Model: TRI-C1WR
• Input Voltage: 100-240V~ 50/60Hz
• Output Current: Max. 1.36A
• Output Power: 150W @110V / 300W @220V
• Dimming: WiFi + 2.4G + Push
• RF Control Distance: 30 meters
• WiFi Network: IEEE 802.11 b/g/n 2.4GHz
• Temperature Range: -10~40°C
• Protection: IP20
• Certifications: CE, EMC, LVD, RED

Key Features

• Continuous dimming from 0 to 100% without flickering
• Minimum brightness configuration
• Thermal and overload protection
• Automatic signal transmission between devices
• Flame-retardant PC housing

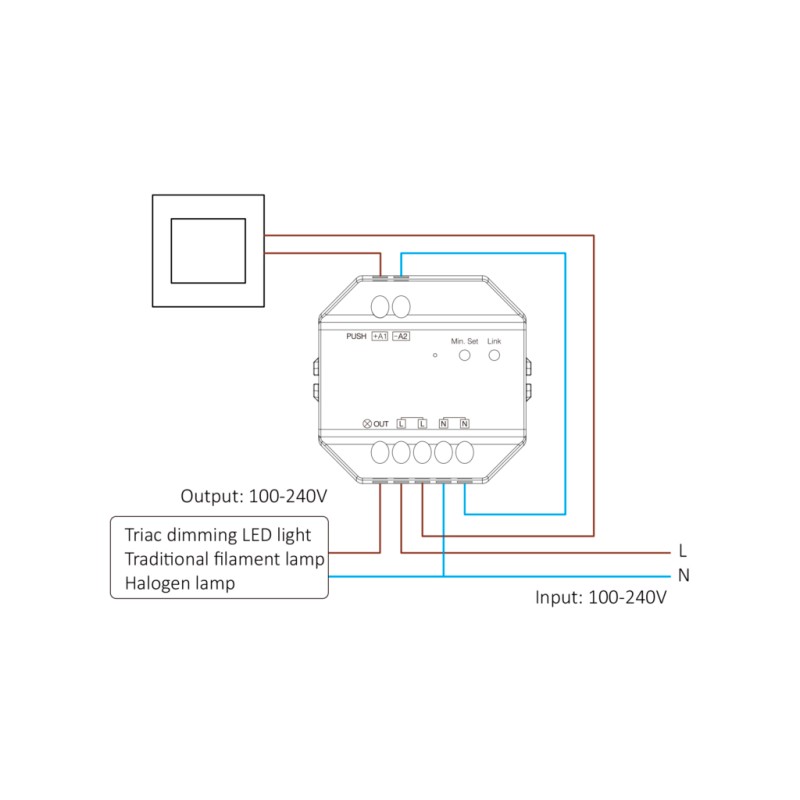

Installation and Compatibility

• Easy installation: in standard flush-mounted boxes (min. 50mm)
• Compatible with: dimmable LED, halogen and incandescent lamps
• Compatible remotes: MiBoxer 2.4G range (not included)

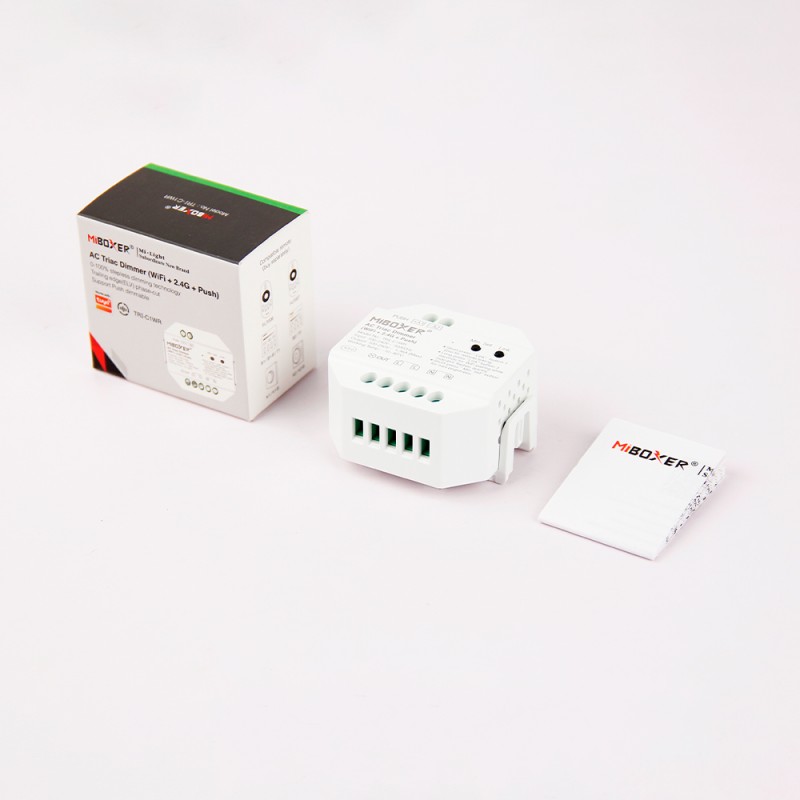

Package Contents

• 1 x MiBoxer TRI-C1WR AC TRIAC Dimmer
