Dual White CCT LED strip controller 12/24V DC 2.4G MiBoxer FUT035S
The MiBoxer FUT035S is a high-quality LED controller designed for dual white (CCT) LED strips, allowing independent adjustment of color temperature and brightness. Thanks to its 2.4GHz wireless technology, you can conveniently control your lighting with compatible remote controls.
This controller is compatible with a wide range of constant voltage 12/24Vdc CCT LED strips, perfect for residential, commercial or decorative lighting projects.
- Dual CCT control: Adjust the white tone from warm to cool (2700K-6500K) and control brightness.
- 2.4GHz technology: Stable, interference-free communication with a range up to 30 meters.
- MiBoxer remote compatibility: Works with MiBoxer/CCT series touch remotes and controllers.
- Auto synchronization: Multiple controllers can operate in sync, ideal for large installations.
- Memory function: Remembers the last settings when powered on.
MiBoxer FUT035S LED Controller - Dual White 2.4GHz
Precise control of color temperature and brightness for CCT LED strips
The MiBoxer FUT035S is a high-quality LED controller designed for dual white (CCT) LED strips, allowing independent adjustment of color temperature and brightness. Thanks to its 2.4GHz wireless technology, you can conveniently control your lighting with compatible remote controls.
This controller is compatible with a wide range of constant voltage 12/24Vdc CCT LED strips, perfect for residential, commercial or decorative lighting projects.
Main Features
- Dual CCT control: Adjust the white tone from warm to cool (2700K-6500K) and control brightness.
- 2.4GHz technology: Stable, interference-free communication with a range up to 30 meters.
- MiBoxer remote compatibility: Works with MiBoxer/CCT series touch remotes and controllers.
- Auto synchronization: Multiple controllers can operate in sync, ideal for large installations.
- Memory function: Remembers the last settings when powered on.
Easy Installation
Its compact design makes indoor installation straightforward. Equipped with quick-connect terminals for safe and simple wiring. Recommended for lighting professionals and DIY projects.
Compatibility
Compatible with any 12V or 24V dual white (CCT) LED strip and the full range of MiBoxer remotes (not included).
Technical Data
- Model: FUT035M2
- Input/output voltage: 12V/24V DC
- Max output current: 6A (3A per channel)
- Max power: 72W (12V) / 144W (24V)
- RF frequency: 2.4GHz
- Control distance: up to 30 meters
- Compatible LED type: CCT (dual white) LED strips
- Color temperature: 2700K – 6500K
- Memory: Yes
- Material: Flame-retardant ABS
- Dimensions: 85 x 45 x 23 mm
- Protection: IP20 (indoor use)
Important Note
This product requires a 12V or 24V DC power supply. Remote controls sold separately. Check our MiBoxer accessory catalog to complete your installation.
Data sheet
- Power (W)
- Max. 12A/Channel
- Power source (V)
- 12/24V-DC
- Dimmable
- Control Remoto
- IP
- IP20

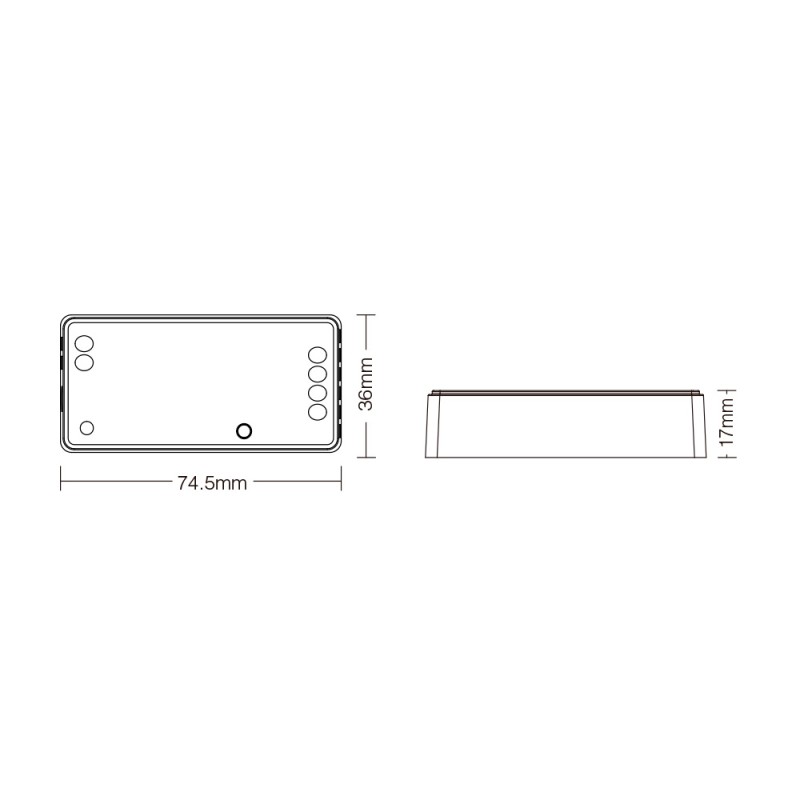

- Measures (mm)
- 75x36x17mm
- Material
- Thermoplastic
- Operating temperature
- -20ºC ~ +40ºC
- Lifespan
- 25.000h
- Certification
- CE - RoHS
- Warranty
- 3 años
