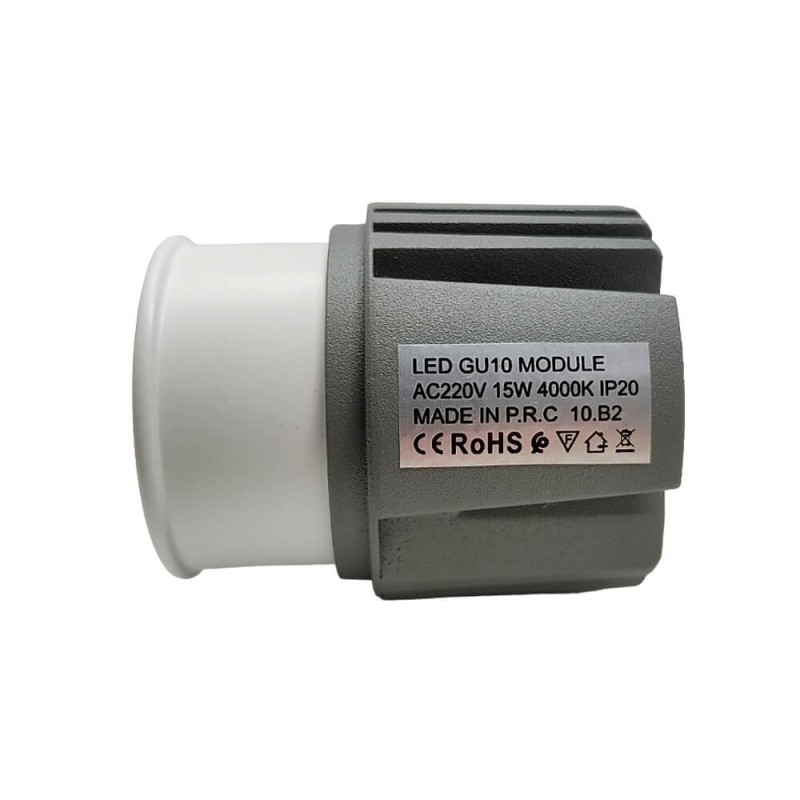

15W GU10 Module LED Bulb UGR13 36º CRI+92

15W Recessed LED Module Ø50mm

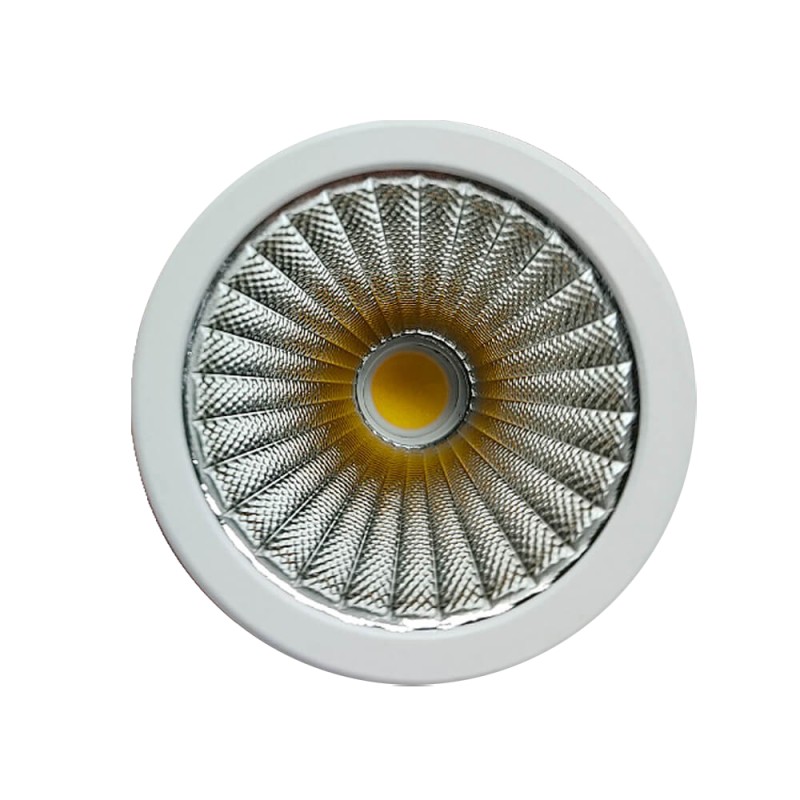

15W recessed LED module, designed to replace GU10/MR16 dichroic bulbs with standard recessed cutout. This high-power LED module includes an external driver for proper heat dissipation, offering a high luminosity of 1950 lumens, surpassing the capabilities of conventional bulbs.

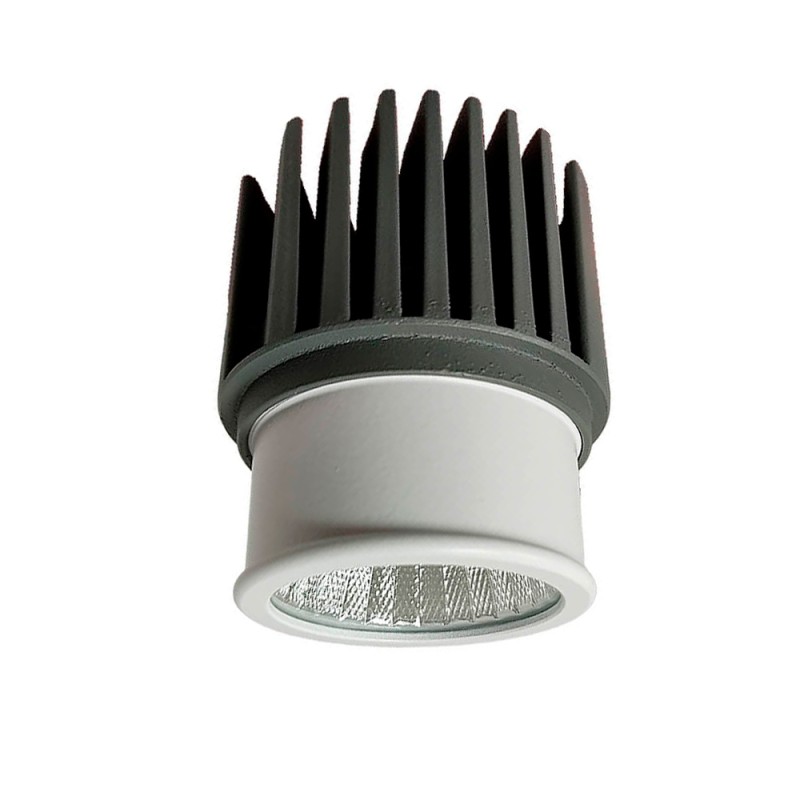

Made with a white lacquered aluminum housing, this high-power LED module incorporates a BridgeLUX LED chip with an efficiency of 130Lm/W and a CRI>92, enhancing vivid and real colors professionally. With a 36º optic and a UGR<13, this 15W LED module provides powerful illumination with a focused beam, virtually without glare.

Technical Data of the 15W Recessed LED Module

• Power: 15W

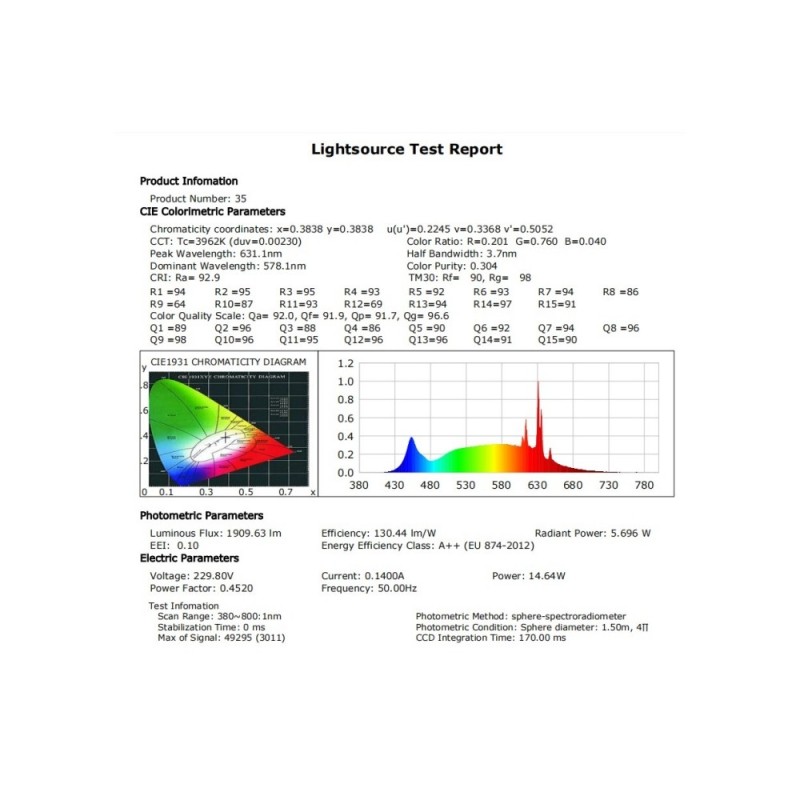

• Luminous Flux: 1950 lumens

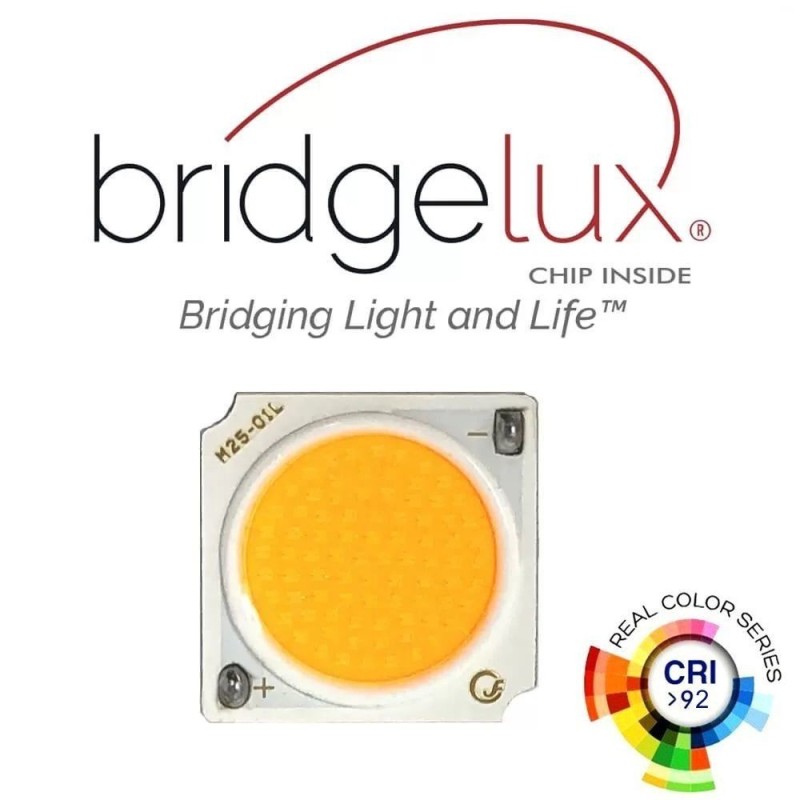

• LED Chip Type: BridgeLUX
• Efficiency: 130Lm/W

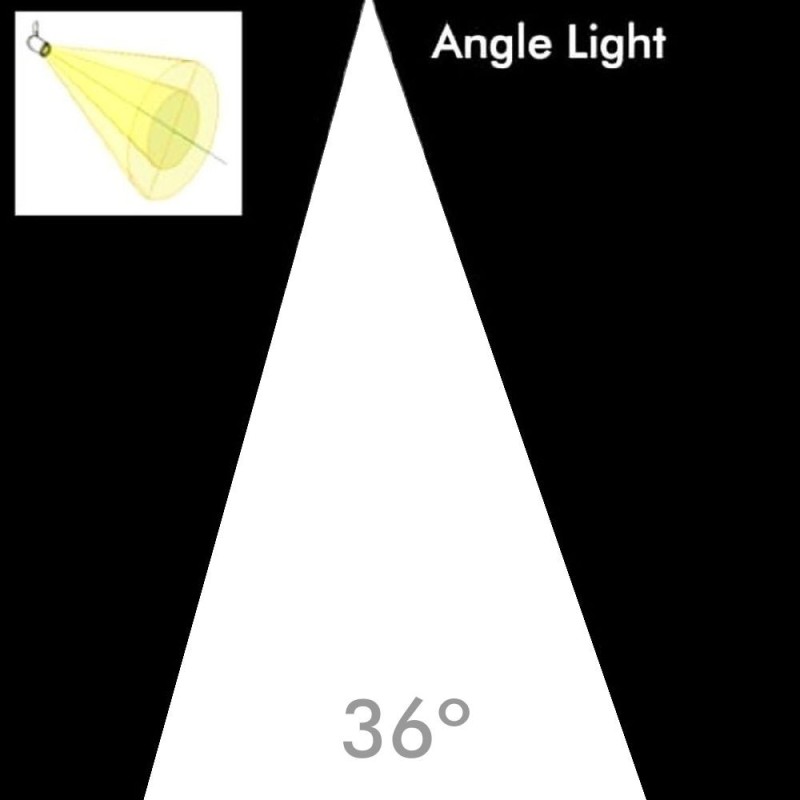

• Beam Angle: 36º

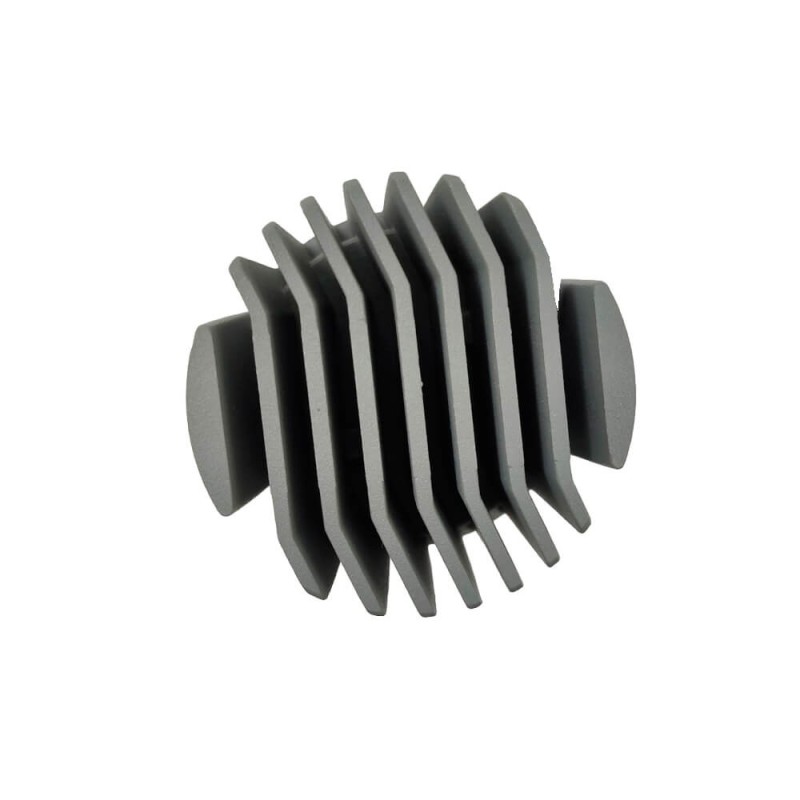

• Material: White lacquered aluminum housing

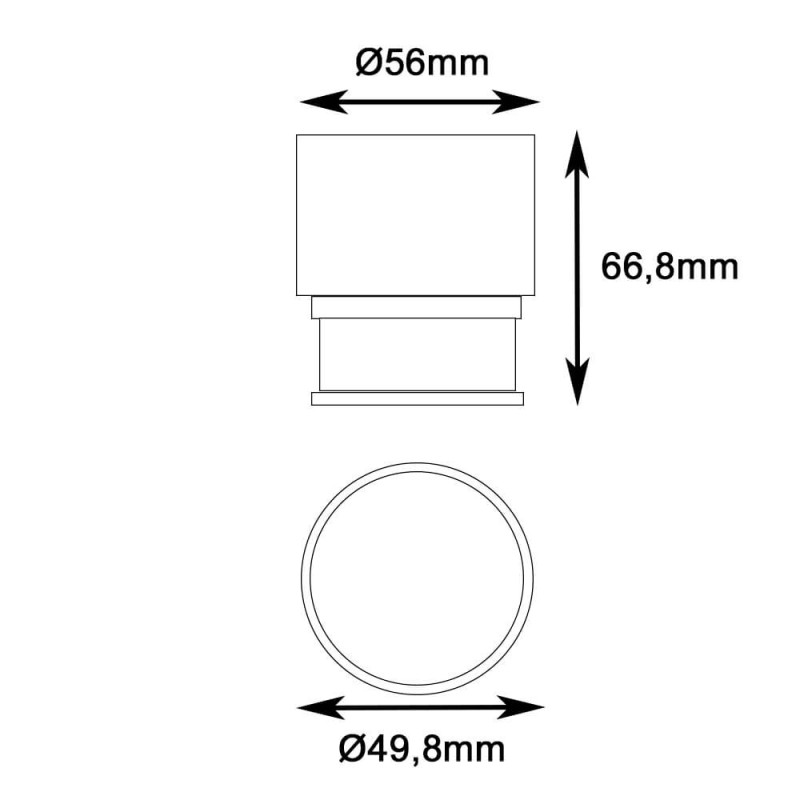

• Dimensions: Ø57x68mm / front Ø50mm

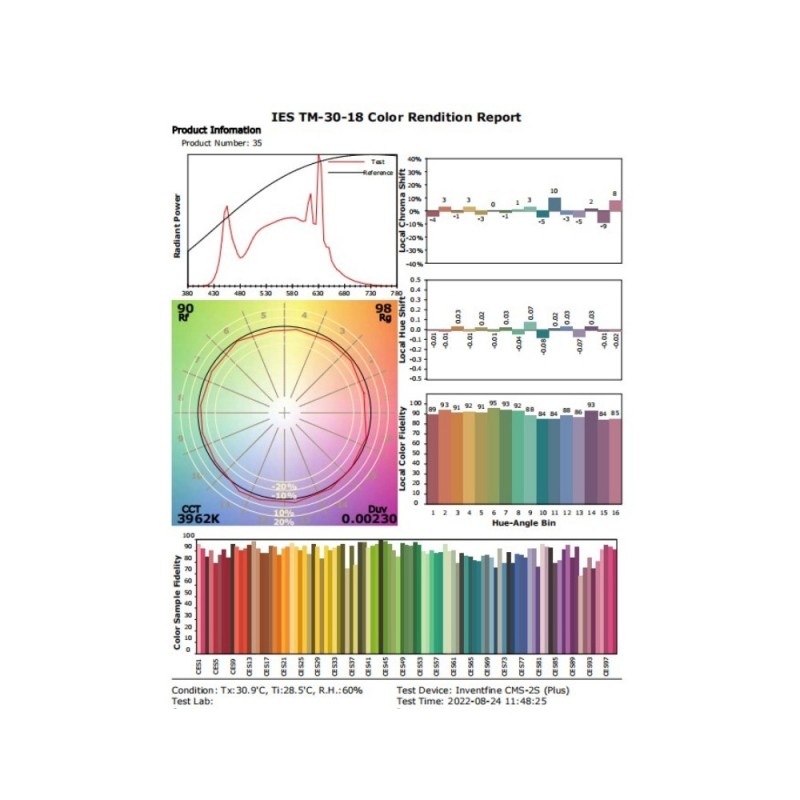

• Color Rendering Index (CRI): >92
• Protection Rating: IP20
• Low Glare: UGR<13
• Warranty: 3 years

Benefits of the 15W Recessed LED Module

• High Luminosity: With 1950 lumens, it provides powerful illumination that surpasses conventional bulbs.
• Excellent Color Rendering: CRI>92 ensures vivid and real colors, ideal for professional applications.
• Focused Optics: With a 36º beam angle and UGR<13, it offers focused lighting without glare.
• Versatile Design: Compatible with all commercial downlight rings and suitable for indoor.
• Durability and Efficiency: Made of white lacquered aluminum, designed for intensive use and long lifespan.

Recommended Uses and Applications

• Domestic Use: Ideal for lighting kitchens, bathrooms, and living rooms.
• Commercial and Professional: Perfect for shops, offices, and commercial premises where intense and high-quality lighting is needed.

Installation Recommendations

• Make a cut in the ceiling with a standard diameter for GU10/MR16 recessed spotlights.

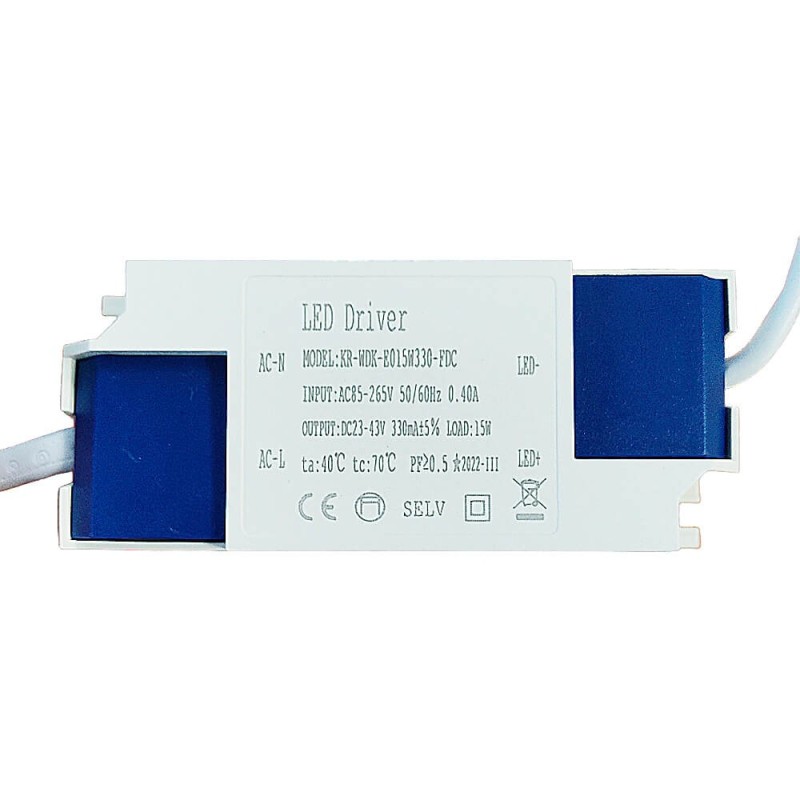

• Connect the external driver to the power grid to ensure proper heat dissipation.
• Insert the LED module into the cutout and secure it firmly.
• Ensure that the electrical connection and installation comply with current regulations.
