600W max. LED 230V TRIAC Dimmer
The TRIAC dimmer 600W with potentiometer is an efficient solution for dimming LED lights, allowing precise control of brightness in various environments. Designed for wall mounting, it combines functionality and aesthetics.
With an operating voltage of 230V and an IP20 rating, this dimmer is suitable for indoor use. Made from white thermoplastic, it offers an elegant and discreet appearance that easily blends into any decor.
- Type: TRIAC Dimmer with potentiometer
- Voltage: 230V
- IP Rating: IP20, suitable for indoor use
- Load Capacity: Dimming of LED lights up to 600W maximum
- Load Requirements: Minimum load of 15W for proper dimming
- Installation: Wall-mounted
- Material: White thermoplastic

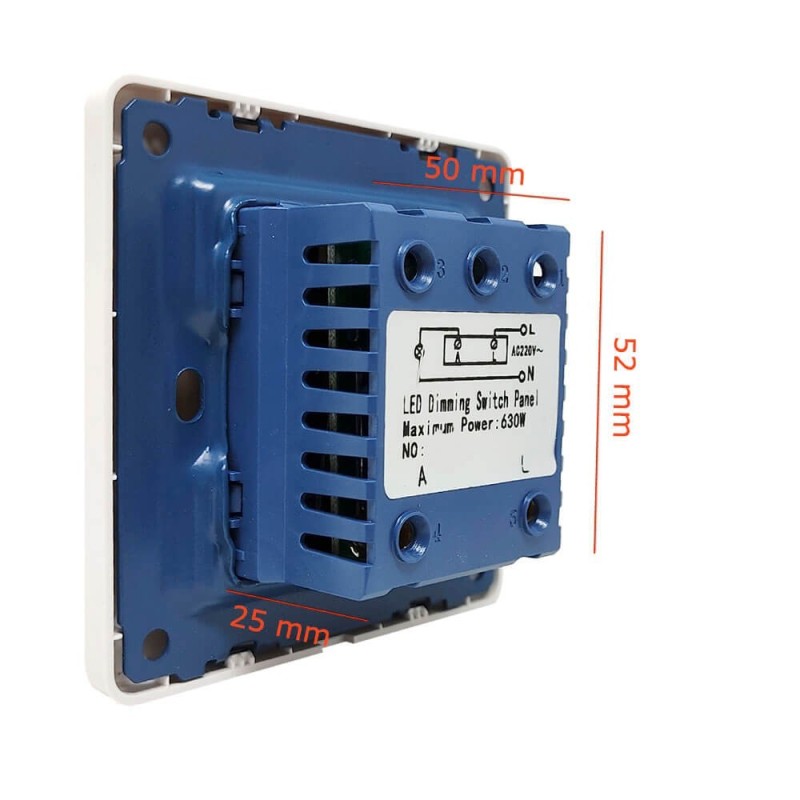

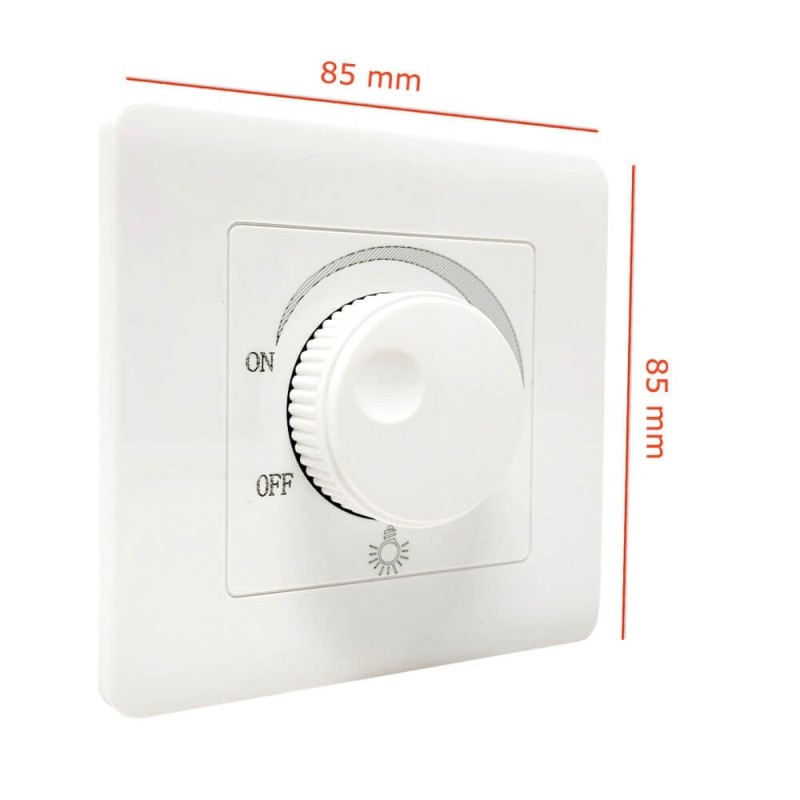

- Dimensions: 85x85x46mm
TRIAC LED Dimmer 600W with Potentiometer 230V
Precisely control the brightness of your LED fixtures with this TRIAC dimmer with potentiometer. Up to 600W, wall-recessed and finished in elegant white thermoplastic, it creates tailored atmospheres while reducing consumption.
🌓 600W max⚡ 230V🔌 IP20🎨 TRIAC
| 600W Max load | 230V Voltage | 15W Min load | IP20 Protection |
The TRIAC dimmer with potentiometer is an effective solution to dim LED fixtures and precisely control brightness in every room. Designed to be recessed into the wall, it combines functionality and aesthetics with a discreet finish that suits any décor.
With an operating voltage of 230V and an IP20 rating, this dimmer is intended for indoor use. It dims LED loads up to 600W (minimum load of 15W for correct dimming) and sits in an 85x85x46mm white thermoplastic housing, for simple, reliable control of the lighting mood.
Why choose this product?
Compatible with a wide range of TRIAC-dimmable LED fixtures.
Precise, gradual brightness control with a single turn.
White thermoplastic housing that blends elegantly into the wall.
Technical specifications
| Product type | TRIAC dimmer with potentiometer |
|---|---|
| Voltage | 230V |
| IP rating | IP20 (indoor) |
| Load capacity | Up to 600W (LED) |
| Minimum load | 15W |
| Installation | Wall-recessed |
| Material | White thermoplastic |
| Dimensions | 85 x 85 x 46 mm |
Advantages
- Up to 600W: dims many LED fixtures.
- Potentiometer: precise, gradual brightness control.
- Recessed: clean, discreet wall installation.
- Elegant finish: white thermoplastic to suit any décor.
- Energy savings: only light to the level you need.
Recommended applications
| 🚪 | Living and dining rooms — adjustable atmospheres. |
| 🏠 | Bedrooms — soft, adjustable light. |
| 🏛 | Offices and workspaces — visual comfort. |
| 🌿 | Restaurants, bars and hotels — atmosphere creation. |
Installation guide
| 1 | Switch off the power Cut the supply at the panel before installation. |
| 2 | Recess the housing Fit the dimmer into a wall recessing box. |

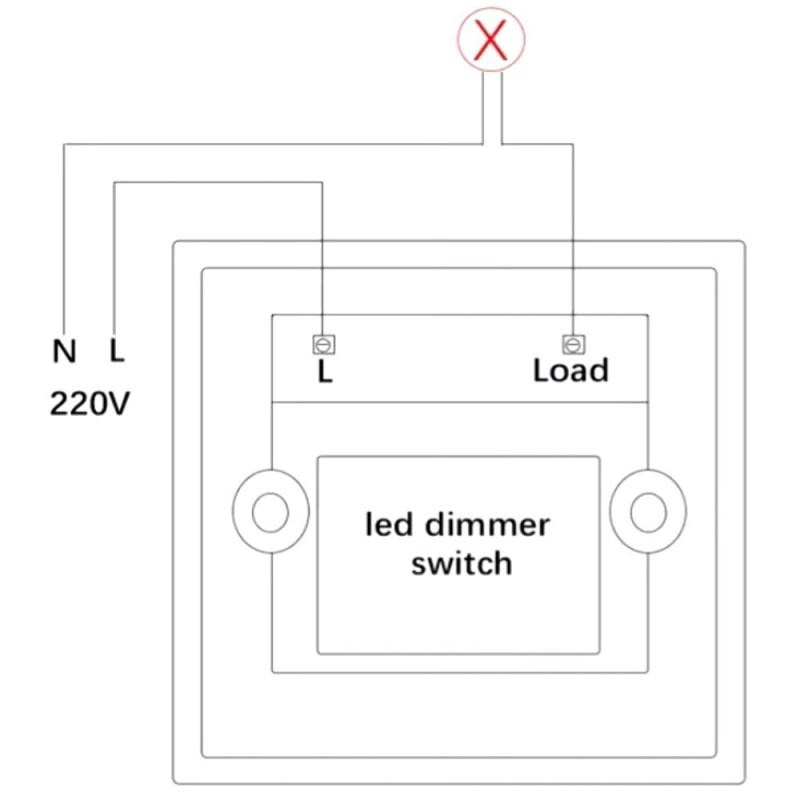

| 3 | Make the connection Wire the dimmer to 230V in line with electrical regulations. |
| 4 | Check the load Make sure the LED load is between 15W and 600W, then test the dimming. |
Frequently asked questions
Up to 600W of LED load, with a minimum load of 15W for correct operation.
With TRIAC-compatible dimmable LED fixtures. Check the product's "TRIAC dimmable" rating.
No, its IP20 rating means it is for indoor use.
| 🌓 600W TRIAC dimming | ⚡ 230V IP20 indoor | ⚙ Potentiometer Precise control | 📦 In stock Fast shipping |
Data sheet
- Power (W)
- 15-600
- Power source (V)
- 220-240V
- Dimmable
- Sí, TRIAC
- IP
- IP20
- Frequency (Hz)
- 50-60Hz
- Measures (mm)
- 85x85x46mm
- Material
- Thermoplastic
- Operating temperature
- -20ºC ~ +55ºC
- Energy efficiency 2021
- A+
- Certification
- CE - RoHS
- Warranty
- 3 años
 daniele on 2023-02-17 01:34:45 | Question: E adatto anche per lampade alogene non led ? il wattaggio minimo quanto è? |
Answer: Si consiglia un carico minimo di 10W. Il dimmer funzionerà per qualsiasi apparecchio dimmerabile tramite TRIAC. Se recomienda una carga mínima de 10W. El regulador funciona con cualquier tipo de luminaria que sea regulable por TRIAC. | |
