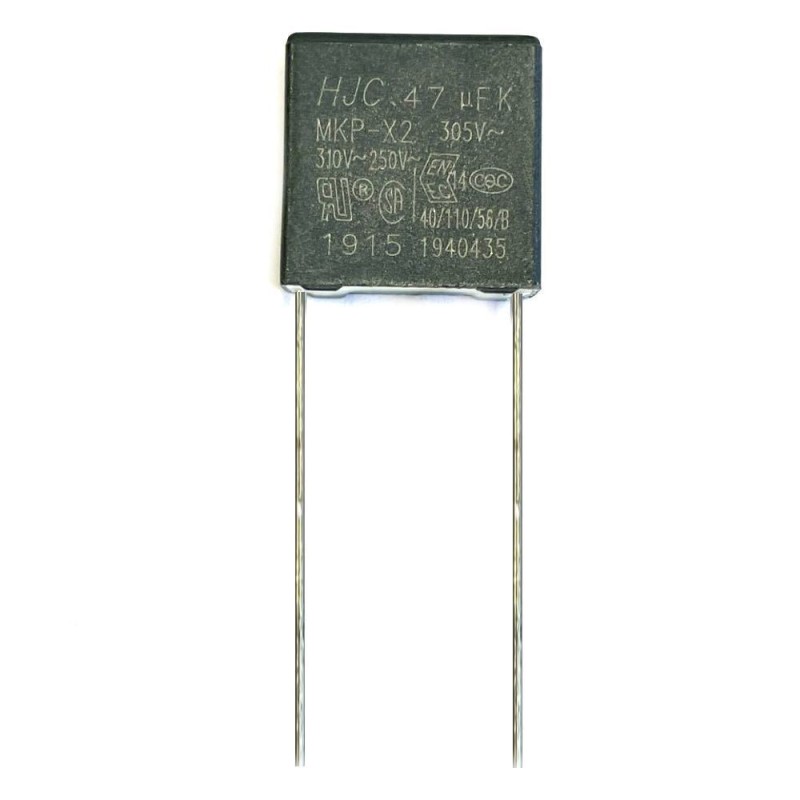

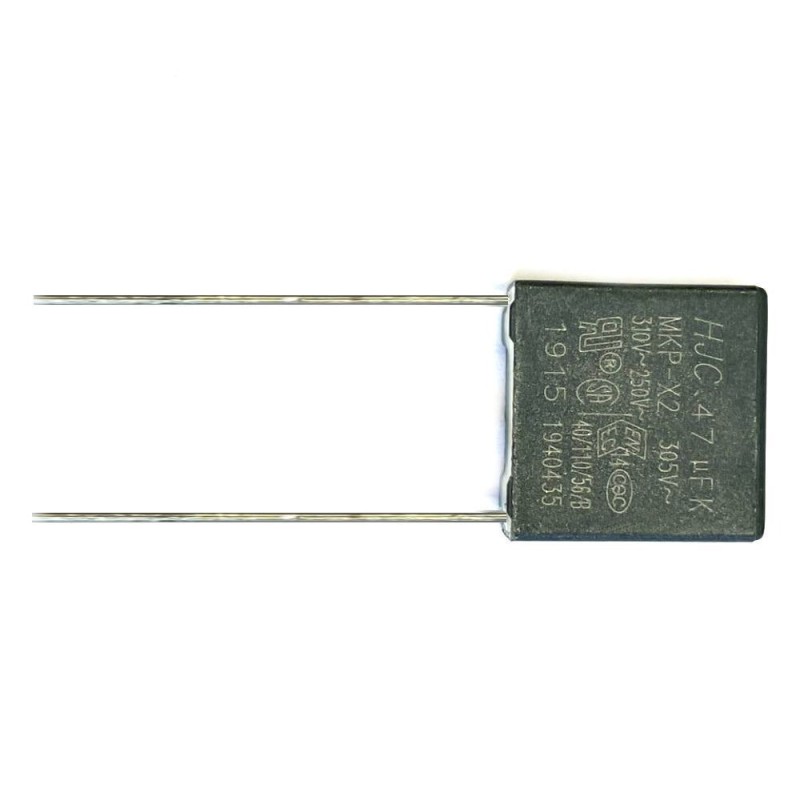

Anti-Flicker Device for LED
The Anti-Flicker Device for LED is an effective solution to eliminate the annoying flicker of LED lamps. These flickers often occur due to potential differences or current generated by small voltage loads powering the signal lights of switches or crossover switches.
This device is ideal for correcting the issues of flicker and turning on in LED installations. It is particularly effective in environments where switches with signal lights or crossover switches generate residual current, causing constant flicker in LED lamps.
The anti-flicker device installation is simple and quick. You just need to connect it in parallel with the LED lamp or with the signal switch, depending on the source of the flicker. This device helps stabilize the current and eliminate unwanted flickers.
Anti-flicker Device for LED
Eliminate annoying flicker from your LED lamps. This device corrects parasitic glowing caused by illuminated or two-way switches, for stable, comfortable light.
❗ Anti-flicker⚡ 250-310V🔌 470nF⚡ 2.5 kV
| Anti-flicker Function | 250-310V Voltage | 2.5 kV Surge peak |
The anti-flicker device for LED is an effective solution to eliminate annoying flicker from LED lamps. This flicker often occurs due to potential differences or residual currents generated by small loads (switch indicator lights or two-way switches) that keep feeding the lamp weakly.
This device is ideal for correcting switching and flicker problems in LED installations. Made from a polypropylene film, aluminium and epoxy resin, it works over a range of 250V to 310V, includes a 470nF capacitor (capacity range from 0.01 µF to 2.2 µF) and withstands surge peaks up to 2.5 kV, ensuring effective, safe protection.
Why choose this product?
Corrects parasitic glowing of LED lamps.
Quality components resistant to surge peaks.
Fitted in parallel with the affected lamp.
Technical specifications
| Product type | Anti-flicker device for LED |
|---|---|
| Materials | Polypropylene film + aluminium + epoxy resin |
| Voltage | 250V - 310V |
| Capacitor | 470nF |
| Capacity range | 0.01 µF to 2.2 µF |
| Surge peak | 2.5 kV |
Advantages
- Eliminates flicker: stable, comfortable LED light.
- Corrects residual currents: ideal with indicator and two-way switches.
- Withstands 2.5 kV: protection against surge peaks.
- Quality components: polypropylene, aluminium and epoxy resin.
- Simple installation: fitted in parallel with the lamp.
Recommended applications
| 🚪 | Illuminated switches — eliminating residual flicker. |
| 🏠 | Two-way switches — correcting parasitic glowing. |
| 🏛 | Residential LED installations — visual comfort. |
| 🌿 | Lighting retrofits — LED compatibility. |
Installation guide
| 1 | Switch off the power Cut the supply before installation. |
| 2 | Identify the lamp Find the LED lamp affected by flicker. |
| 3 | Connect in parallel Wire the device in parallel with the lamp as per electrical regulations. |
| 4 | Check Restore power and check that the flicker has gone. |
Frequently asked questions
To eliminate LED lamp flicker caused by residual currents (indicator or two-way switches).
It is wired in parallel with the affected LED lamp.
A range of 250V to 310V, with a surge peak up to 2.5 kV.
| ❗ Anti-flicker Stable light | ⚡ 2.5 kV Resistant | 🔌 470nF Quality | 📦 In stock Fast shipping |
Data sheet
- Power source (V)
- 220-240V
- IP
- IP20
- Frequency (Hz)
- 50-60Hz
- Material
- Aluminum
- Operating temperature
- -20ºC ~ +55ºC
- Certification
- CE - RoHS
- Warranty
- 2 años
