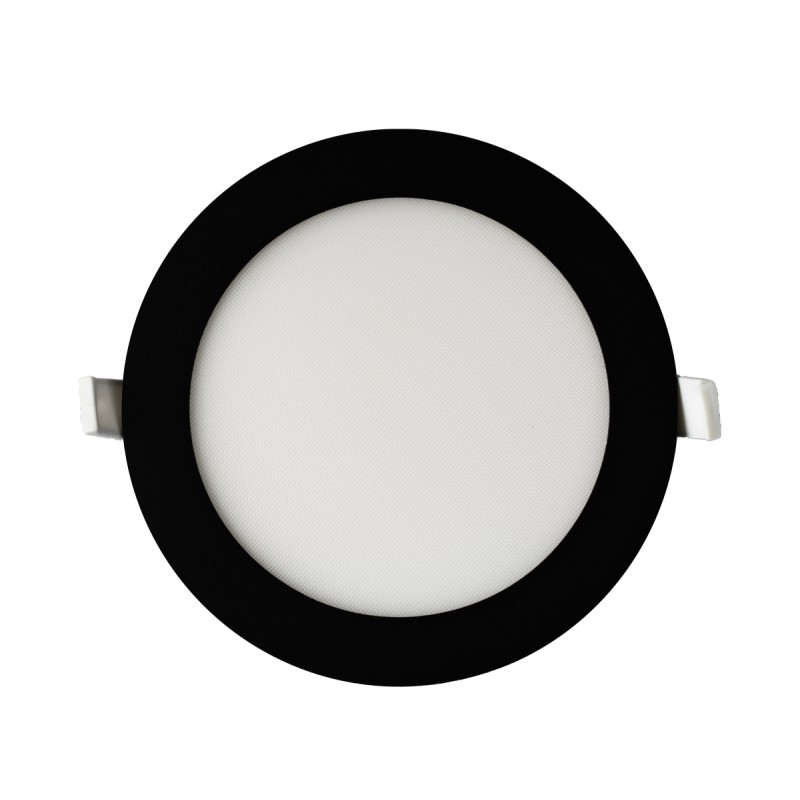

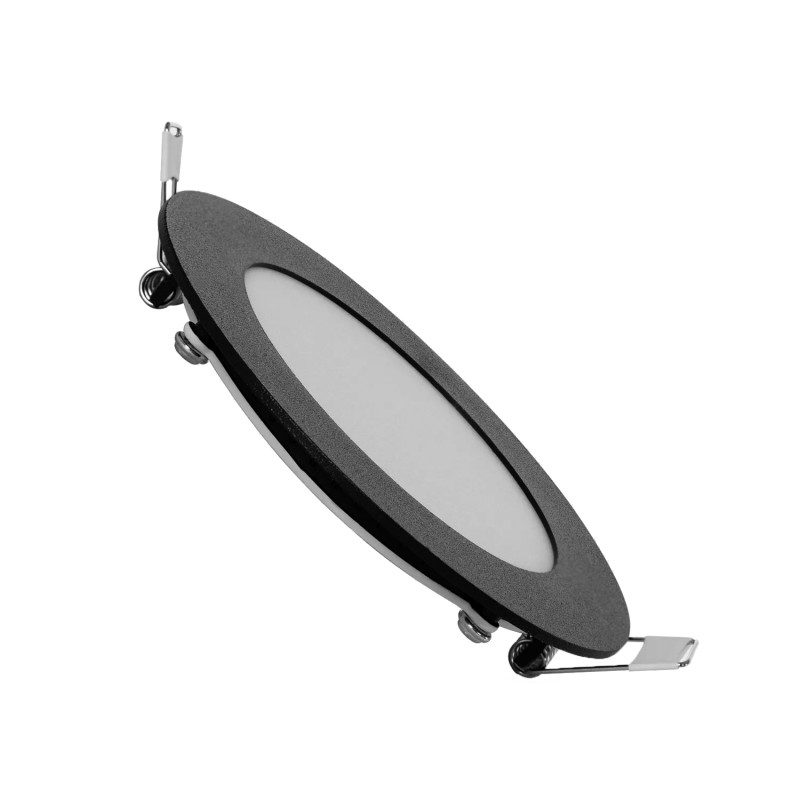

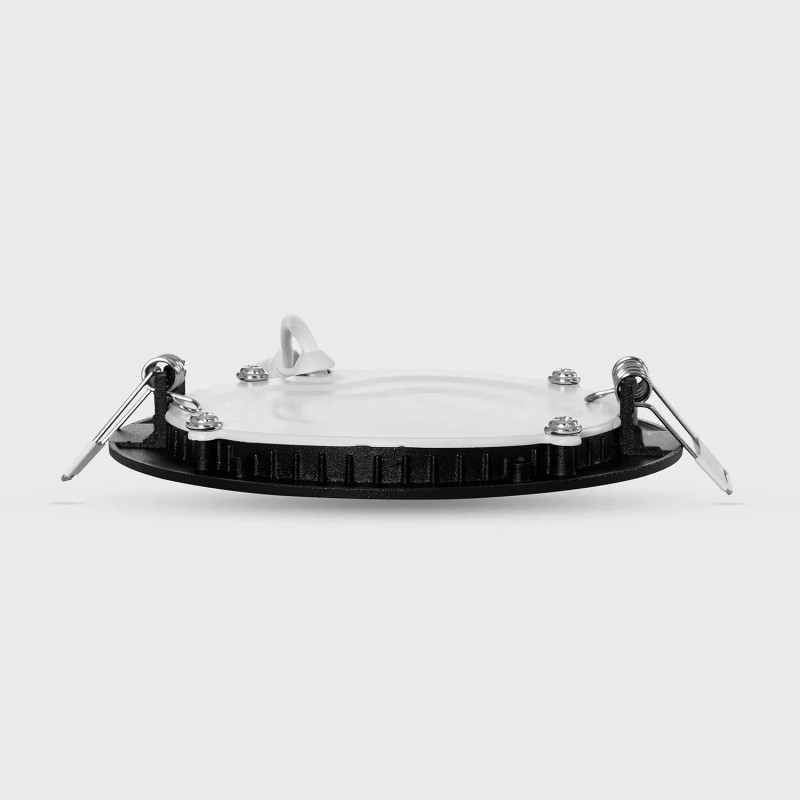

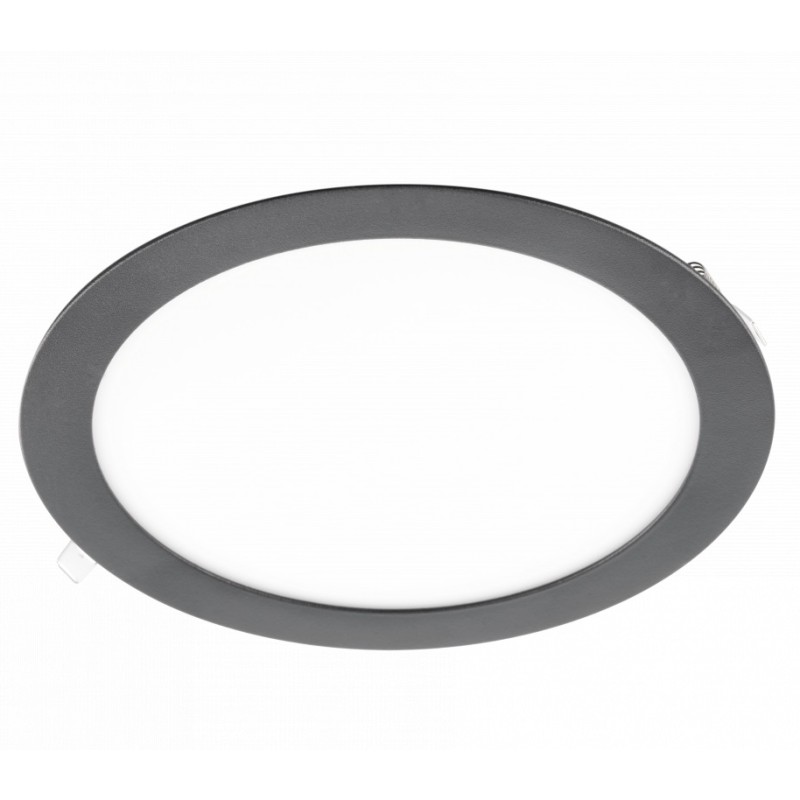

12W selectable CCT Recessed black LED Downlight UGR19

62.96 € (tax incl.)
E
Available
Dimming system
  • No dimming (On/Off)
  • TRIAC
  • 1-10V
  • DALI
In stock: 400 Items
Reference:
PL-DRN12CCT-DALI

The recessed LED downlight is a versatile and high-quality lighting solution, ideal for both domestic and professional use. With a power of 12W and a luminous flux of 1200 lumens, this downlight is designed to offer excellent lighting performance with a black finish that adds elegance and modernity to any space.

This LED downlight is available in 4 versions, adapting to different lighting control needs:

  • Non-dimmable (on/off)
  • TRIAC Dimmable
  • 1-10V Dimmable
  • DALI Dimmable

This LED downlight features an integrated CCT selector, allowing you to choose the color temperature according to the specific needs of the environment, all in one device.

The downlight includes an opal microprismatic diffuser with a UGR<19 glare rating, ensuring uniform lighting without annoying reflections, making it perfect for environments where visual comfort is required.

  • Power: 12W
  • Luminous Flux: 1200 lumens
  • Frame Color: Black
  • CCT Selector
  • Diffuser: Opal microprismatic UGR<19
  • Outer Diameter: 170mm
  • Cutout Diameter: Ø150/160mm
  • IP Rating: IP20 (Indoor Use)
Read moreShow less
Download PDF
You may also like
No items
Description

Recessed LED Downlight 12W Black with CCT Selector


The recessed LED downlight is a versatile and high-quality lighting solution, ideal for both domestic and professional use. With a power of 12W and a luminous flux of 1200 lumens, this downlight is designed to offer excellent lighting performance with a black finish that adds elegance and modernity to any space.

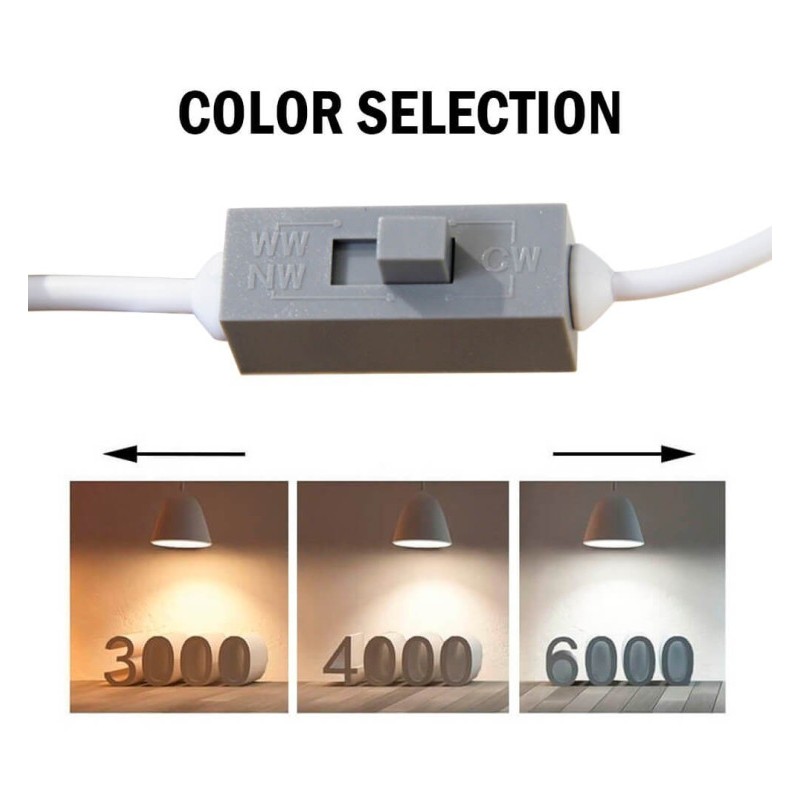

This LED downlight features an integrated CCT selector, allowing you to choose the color temperature according to the specific needs of the environment, all in one device. The available options are:

  • Warm white 3000K: Ideal for creating cozy and relaxing environments.
  • Neutral white 4000K: Perfect for work areas or spaces where a more natural light is required.
  • Cool white 6000K: Excellent for spaces where maximum visibility and clarity are needed.

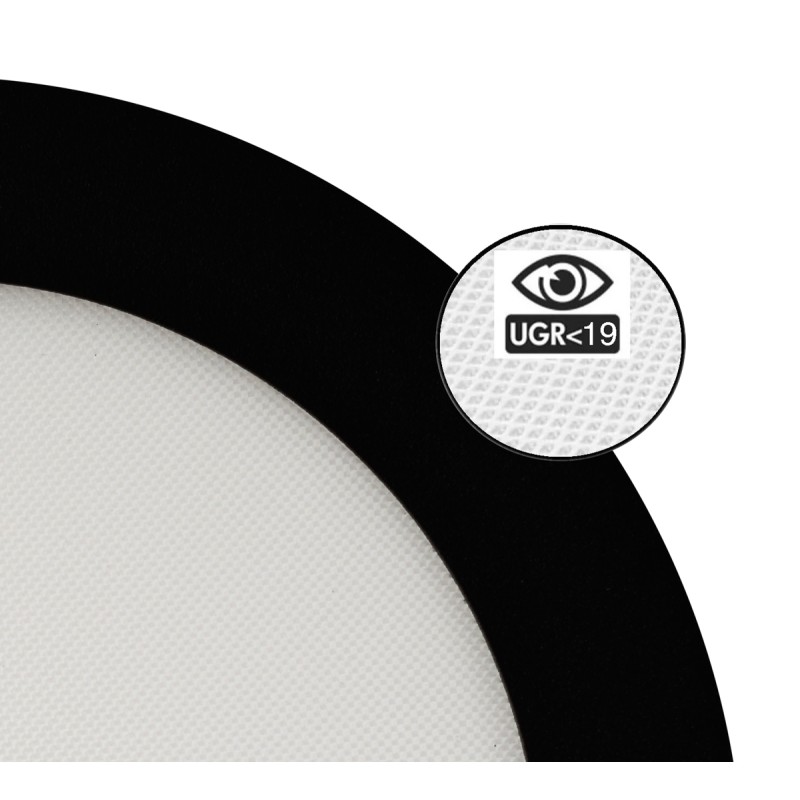

The downlight includes an opal microprismatic diffuser with a UGR<19 glare rating, ensuring uniform lighting without annoying reflections, making it perfect for environments where visual comfort is required.

Available Versions


This LED downlight is available in 4 versions, adapting to different lighting control needs:

  • Non-dimmable (on/off): For standard lighting.
  • TRIAC Dimmable: Compatible with TRIAC dimmers for adjusting light intensity.
  • 1-10V Dimmable: For more advanced lighting control systems.
  • DALI Dimmable: Ideal for integration into DALI control systems.

It incorporates a high-brightness and durable OSRAM LED chip, ensuring a long service life and low energy consumption, making it an ideal option for any type of installation.

Technical Specifications


  • Power: 12W
  • Luminous Flux: 1200 lumens
  • Frame Color: Black
  • CCT Selector: 3000K / 4000K / 6000K
  • Diffuser: Opal microprismatic UGR<19
  • Outer Diameter: 170mm
  • Cutout Diameter: Ø150/160mm
  • IP Rating: IP20 (Indoor Use)
  • Driver: No flicker included
  • Warranty: 5 years

The recessed LED downlight is perfect for ceiling cutouts of Ø150/160mm, ensuring easy installation and a perfect fit. With its modern and functional design, it is the ideal option for illuminating any space with style and efficiency.

Read moreShow less
Product Details
PL-DRN12CCT-DALI

Data sheet

Power (W)
12
Power source (V)
100-240V
Color temperature CCT
Seleccionable 3000K-4000K-6000K
LED
SMD2835
LED chip brand
OSRAM
Dimmable
1/10V
DALI
Sí, TRIAC
Brightness (Lm)
1200
CRI
+80
Colour
Black
IP
IP20
Luminous angle
120º
Frequency (Hz)
50-60Hz
Forma
Redondo
Measures (mm)
Ø170x11mm
Medida de corte (mm.)
Ø150mm
Material
Aluminum + PC
Operating temperature
-20ºC ~ +40ºC
Energy efficiency 2021
A+
Energy efficiency 2023
E
Lifespan
25.000h
Certification
CE - RoHS
Warranty
5 años
