VILLA black Column for street lighting and LED lampadaires 3.2m
The Villa Column combines the elegance of classic design with the robustness of high-quality materials. Made with steel sheet at the base and an Ø89 mm steel tube in the shaft, it includes an anchor base, central ferrule, and cast iron top cap, offering a solid and durable structure.
The Villa Column includes M-16x350mm anchor bolts and a template to facilitate installation. It is supplied in two parts, base and shaft, which simplifies transport and assembly. The base dimensions are 1200x320x300 mm, and the shaft dimensions vary depending on the column height: for the 3.20-meter column, the dimensions are 2150mm x Ø130mm.
Villa Column - Elegance and Resistance for Outdoor Lighting
Classic Design and Robust Construction
The Villa Column combines the elegance of classic design with the robustness of high-quality materials. Made with steel sheet at the base and an Ø89 mm steel tube in the shaft, it includes an anchor base, central ferrule, and cast iron top cap, offering a solid and durable structure.
Functionality and Accessibility
Equipped with an access door at the approved height, the Villa Column facilitates access to electrical connections and maintenance. Its termination with a ¾” fitting and nut allows the installation of various types of lanterns. Additionally, an optional accessory is available for Ø60mm tip mounting, expanding customization possibilities.
High-Quality Finish and Corrosion Resistance
The polyester powder coating, applied by electrostatic spraying and oven-sublimated, ensures excellent resistance to corrosion and weathering. The standard color is black, but the option to customize the color according to the RAL chart is available.
Simple and Secure Installation

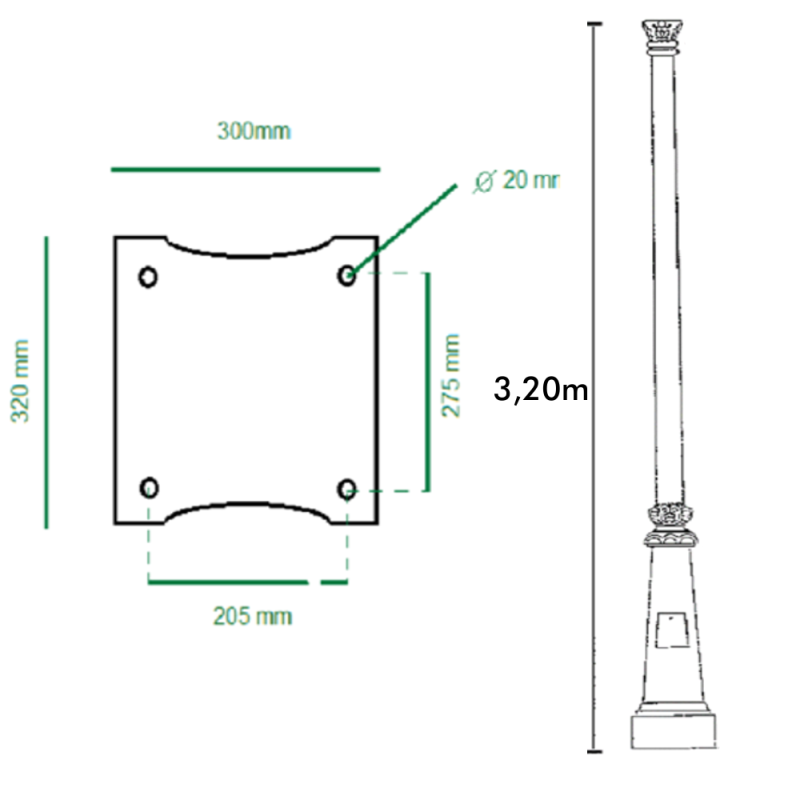

The Villa Column includes M-16x350mm anchor bolts and a template to facilitate installation. It is supplied in two parts, base and shaft, which simplifies transport and assembly. The base dimensions are 1200x320x300 mm, and the shaft dimensions vary depending on the column height: for the 3.20-meter column, the dimensions are 2150mm x Ø130mm.
Variety of Heights
Available in different heights, from 3.20 meters to 4 meters, the Villa Column adapts to various outdoor lighting needs, providing an elegant and functional solution for any environment.
Data sheet
- Measures (mm)
- 3,2m
- Material
- Acero + Esmalte de Poliuretano
- Certification
- CE - RoHS
- Warranty
- 3 años
